BCM58305B3KFEB12G天龙DENON马兰士MarantzAV功放无线网卡wifi板,AIOS4 0S模组,HEOS多房间无线音频技术模块组,141972220003J模组
2020-12-04 20:31:20
点击购买
BCM58305家族介绍：
系列高度集成的系统芯片(SoC)设备，适用于广泛的安全支付、消费电子、智能和安全的物联网、家庭安全网关和自动化以及网络端点应用。
该产品系列具有先进的安全能力，以保护终端系统免受硬件和软件安全攻击，并集成了流行的工业网络和外围接口，以实现对各种系统组件的无缝连接。
BCM58305特性:
安全性:兼容pci的下一代BroadSAFE安全性，具有安全保护逻辑和监视器、篡改检测和传感器、加密加速、物理网格和电池支持的逻辑
具有安全引导功能的设备定制
安全的内存访问控制器与动态加密和解密
静态和差动功率分析(SPA/DPA)对策
兼容智能卡emv 7816控制器(2)
ARM Trustzone 安全处理架构
多媒体:ARM Cortex-A9高达1.6GHz，带有L1和256KB L2缓存，NEON 和浮点单元
QR/条码扫描软件解码包(“Q”)选项
LCD控制器(并行和串行MIPI)
3D图形硬件加速
相机接口
NAND, QSPI NOR, DDR和SRAM内存控制器
10通道ADC用于电阻式触摸屏和系统传感器
键盘接口
I2S和SPDIF具有跟踪和同步音频流的时间戳支持
通信:4端口10/100/1000以太网交换机/MAC与ee兼容的物理
PCI Express (PCIe?)gen 2
USB 2.0主机和设备接口(3)
控制区域联网(CAN)， (2)
多脉宽调制(PWM)通道
SDIO控制器(2)
UART/SPI/BSC/联合测试行动组(JTAG)/通用输入输出(GPIO)
低功耗28nm CMOS工艺
应用：
无线音频
销售点(POS)终端
物联网(IoT)
家庭自动化
安全条码/二维码扫描器
=============================================================================================
BCM5830X Family：
A family of highly integrated System-on-a-Chip (SoC) devices suitable for a wide range of secure payment, consumer electronics, intelligent and secure IoT, home security gateways and automation, and networking endpoint applications.
This product line features advanced security capabilities to protect the end system against hardware and software security attacks, and integrates popular industry networking and peripheral interfaces to enable seamless connectivity to a variety of system components.
Features:
Security: PCI-compliant next-generation BroadSAFE security with secure protection logic and monitors, tamper detection and sensors, crypto acceleration, physical mesh, battery-backed logic
Device customization with Secure Boot capability
Secure Memory Access Controller with on-the-fly encryption and decryption
Static and Differential Power Analysis (SPA/DPA) countermeasures
Smart Card EMV-compliant 7816 controllers (2)
ARM Trustzone secure processing architecture
Multimedia: ARM Cortex -A9 up to 1.6GHz with L1 and 256KB L2 cache, NEON and floating point unit
QR/barcode scan software decoding bundle ("Q") options
LCD Controller (parallel and serial MIPI)
3D graphics hardware acceleration
Camera Interface
NAND, QSPI NOR, DDR and SRAM memory controllers
10-channel ADC for Resistive Touchscreen Panel and System Sensors
Keypad interface
I2S and SPDIF with timestamp support for tracking and synchronizing audio streams
Communications: 4-port 10/100/1000 Ethernet Switch/MAC with EEE-compliant PHYs
PCI Express (PCIe ) gen 2
USB 2.0 host and device interfaces (3)
Controlling Area Networking (CAN), (2)
Multiple Pulse-Width Modulation (PWM)channels
SDIO controllers (2)
UART/SPI/BSC/Joint Test Action Group (JTAG)/General-Purpose Input/Output (GPIO)
Low-power 28 nm CMOS process
Applications
Wireless Audio
Point-of-Sale (POS) terminals
Internet of Things (IoT)
Home Automation
Secure barcode/ QR code scanner
====================================

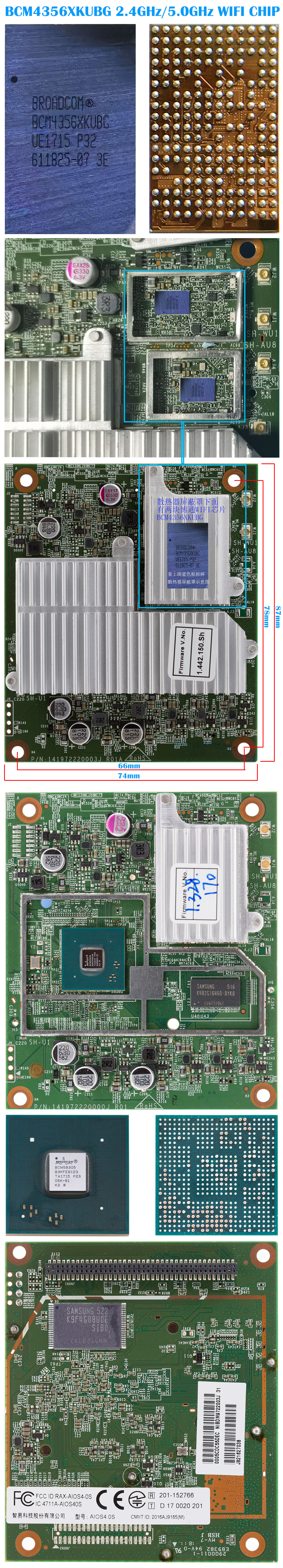

模组型号：141972220003J or AIOS-4.0S
内置IC型号：
BCM58305B3KFEB12G(CPU),
BCM4356XKUBG(无线网卡IC，wifi芯片)
K4B2G1646F-BYK0组织为16Mbit x16 I / O x8 bank设备。对于一般应用，该同步器件可实现高达1866Mb / sec / pin（DDR3-1866）的高速双倍数据速率传输速率)),
K9F4G08U0E-SCB0( 4 GB NandFlash,已停产)
模组功能：IEEE 802.11n and IEEE 802.11b/g wifi通信， HEOS 4.X Platform 多房间聆听技术，支持多版本：AIOS4.0S, AIOS4.0V, AIOS4.0R, AIOS4.0F， WLAN (2TX, 2RX)无线收发器， 2.4GHz /5.0GHz radio transmitter... ...
==============================================================================
HEOS技术是大多数人的最爱。它只是使您能够从各种无限的资源中以无线方式流式传输自己喜欢的音乐。也可以从Sound cloud，Tidal，Spotify，Napster和您的本地库文件中获取。借助免费的HEOS应用程序，您可以从房屋的任何位置轻松播放音乐。
使用Alexa的语音指令，您可以要求Alexa从Spotify等音乐服务中播放音乐。在HEOS中启用Alexa后，您可以流式传输任何其他启用了HEOS的设备以及该产品。

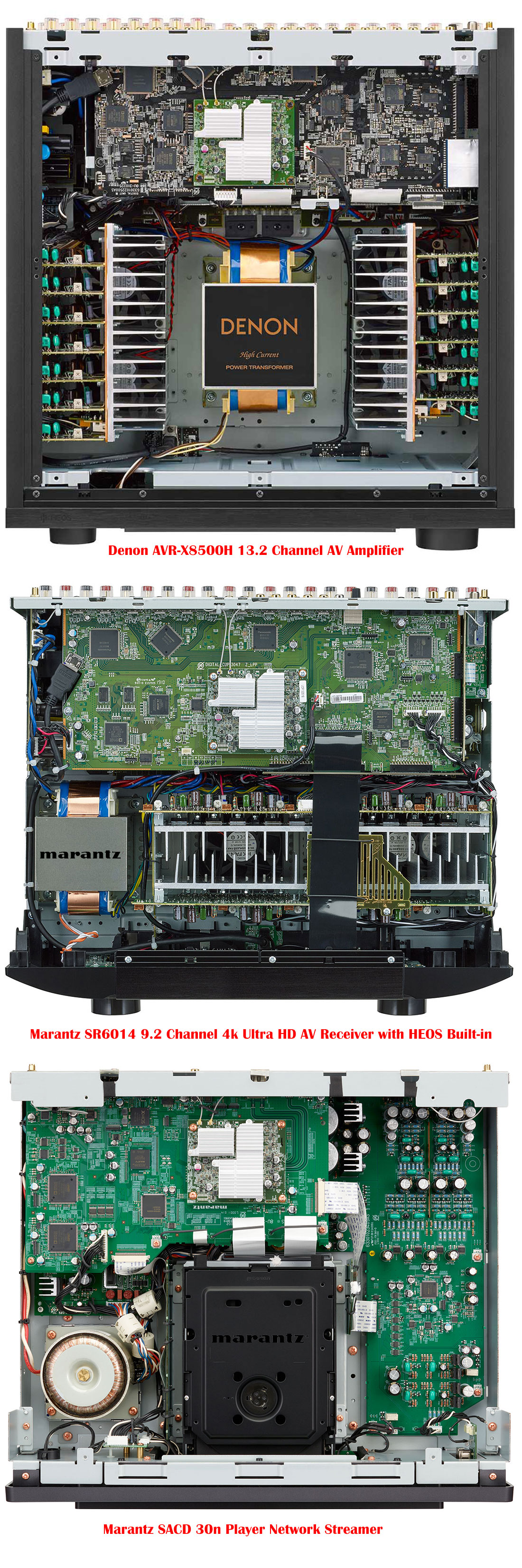

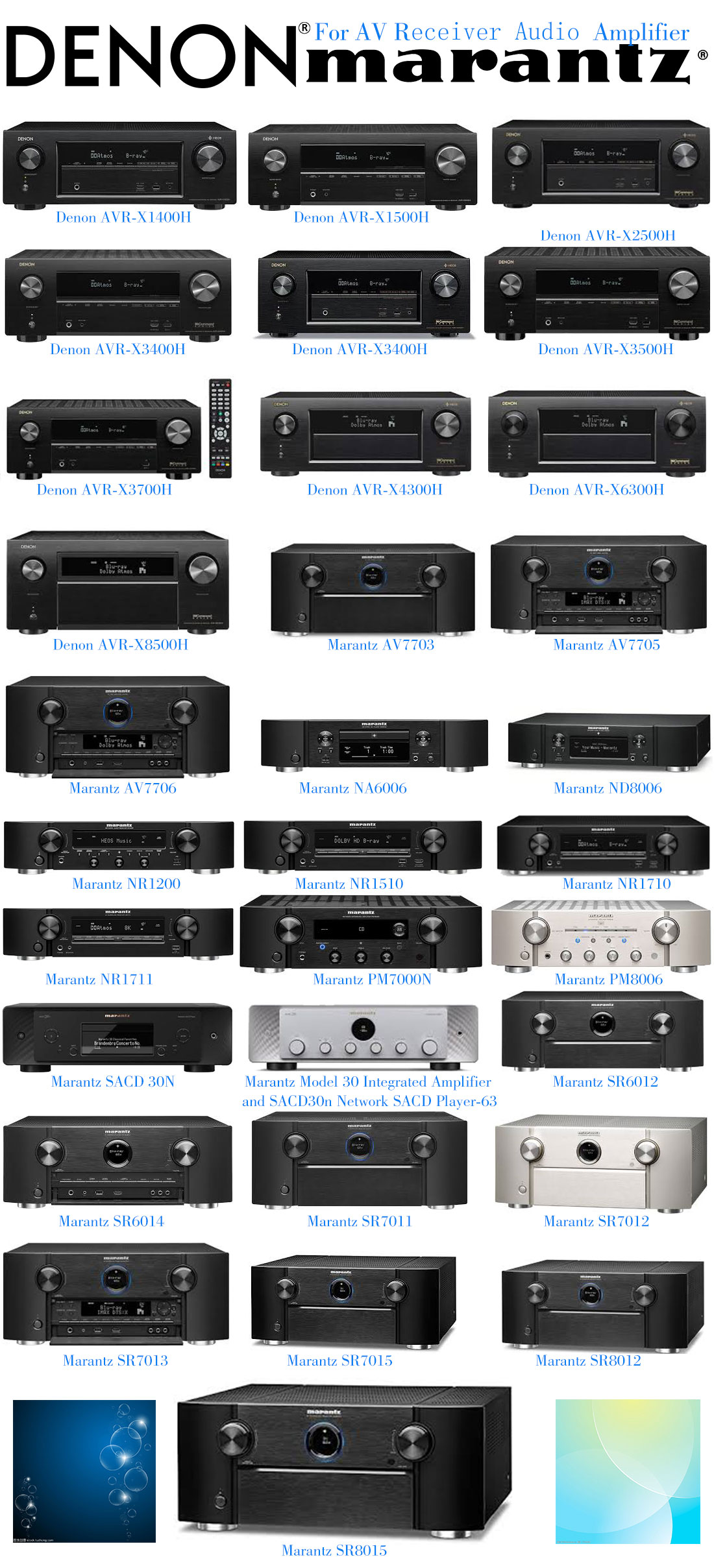

适用于天龙Denon、马兰士Marantz AV功放Receivers或者SACD 播放器如下型号：
Denon AVR-X1400H Denon AVR-X1500H Denon AVR-X2400H Denon AVR-X2500H Denon AVR-X3400H Denon AVR-X3500H Denon AVR-X3700H Denon AVR-X4300H Denon AVR-X6300H Denon AVR-X8500H
Marantz AV7703 Marantz AV7705 Marantz AV7706 Marantz NA6006 Marantz ND8006 Marantz NR1200 Marantz NR1510 Marantz NR1710 Marantz NR1711 Marantz PM7000N Marantz PM8006 Marantz SACD 30N Marantz SACD30N +Amplifier Marantz SR7013 Marantz SR6012 Marantz SR6014 Marantz SR7011 Marantz SR7012 Marantz SR7013 Marantz SR7015 Marantz SR8012 Marantz SR8015
===============================
本公司可提供模组原厂的规格书，检测报告
