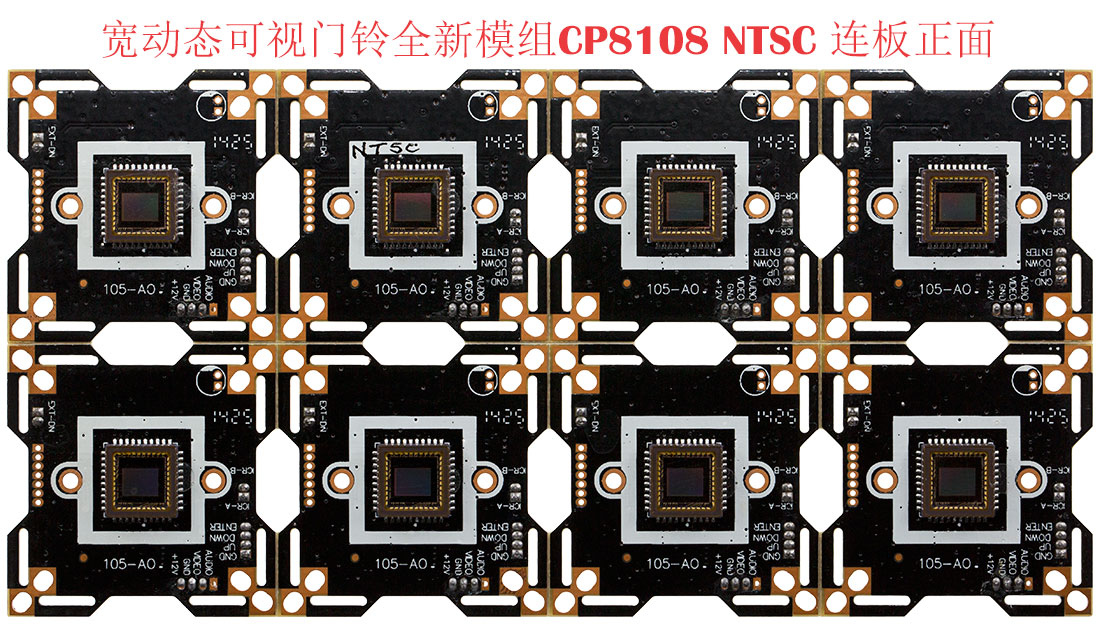

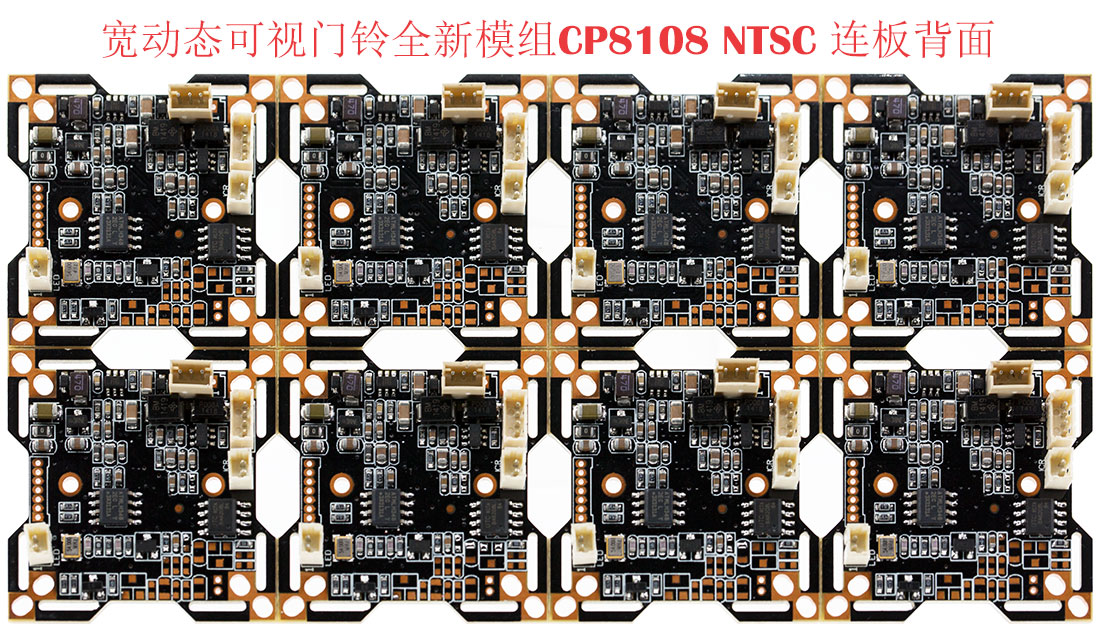

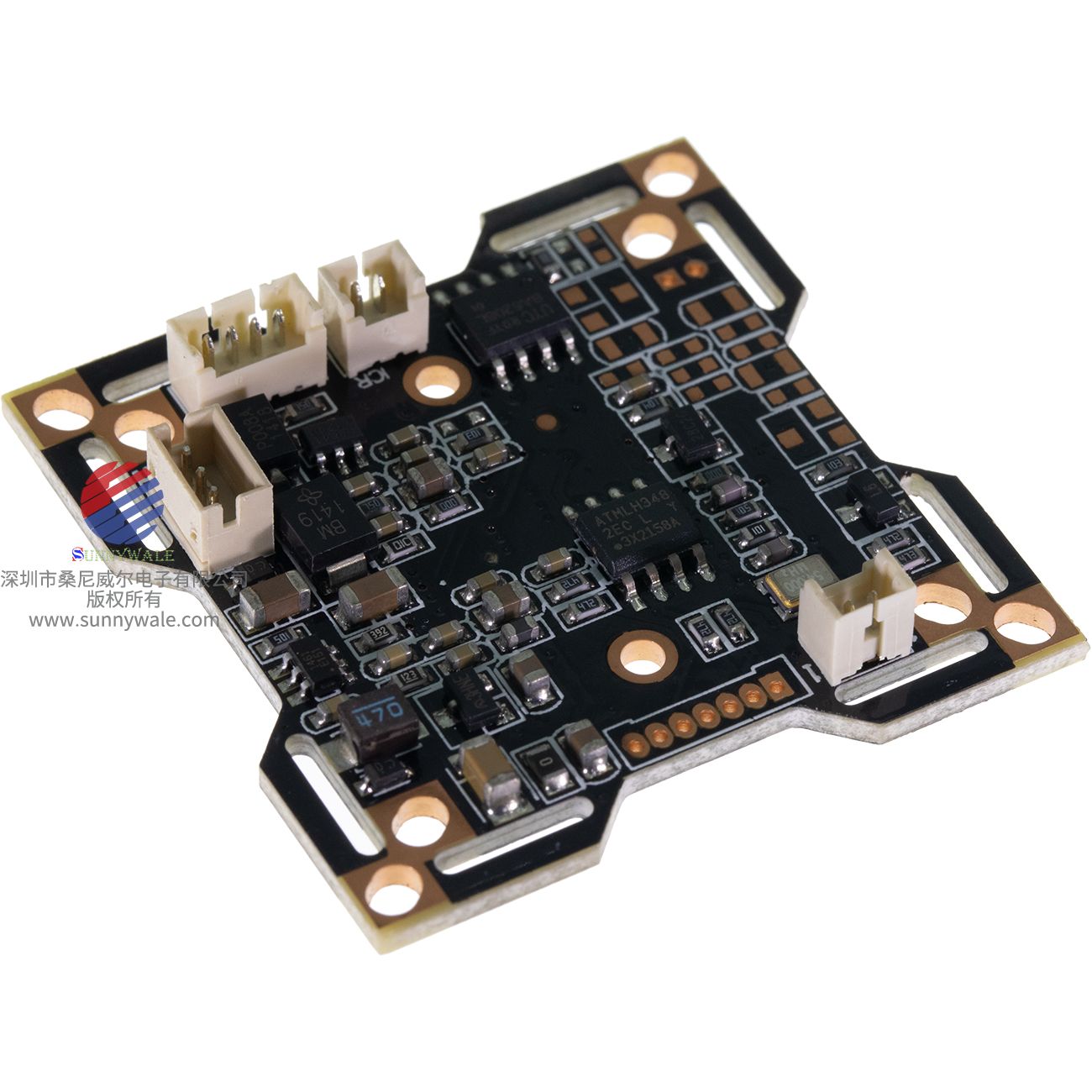

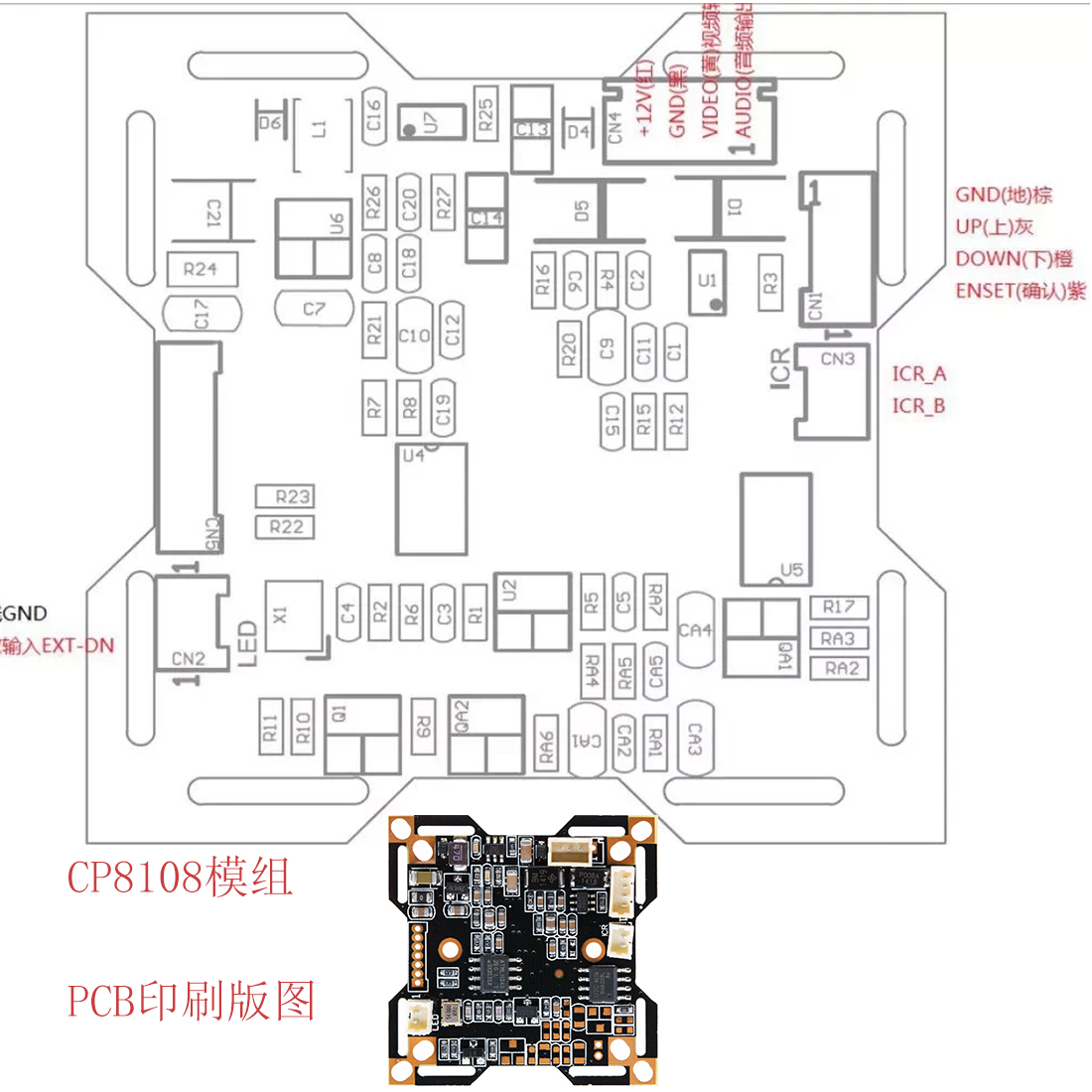

CP8108 CLAIRPIXEL韩国WDR1/3"宽动态安防监控摄像机可视门铃全新模组800TVL
2020-12-23 02:23:08
点击购买

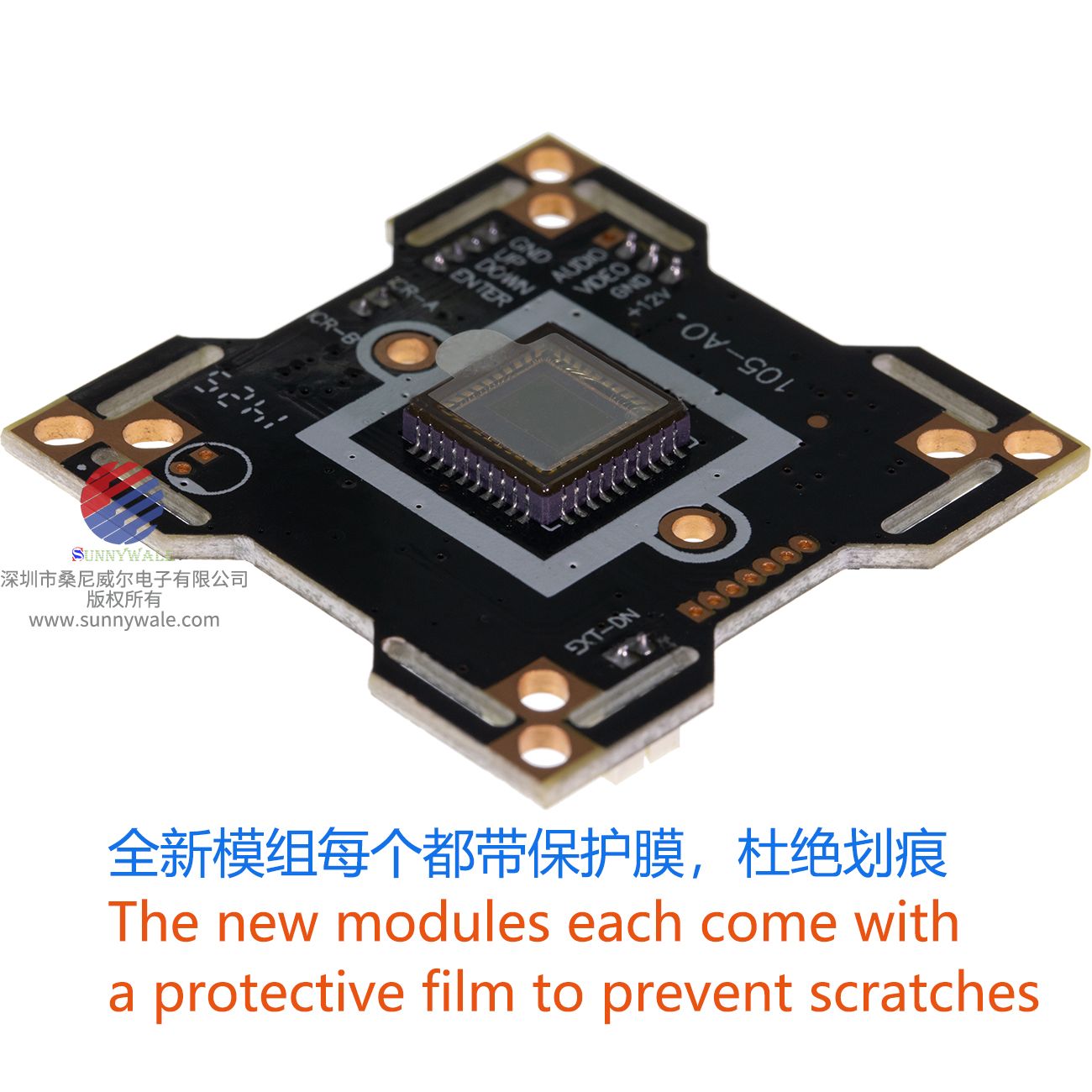

宽动态摄像头模组，CP8108,120db动态范围摄像头，800tvl，1/3-inch analog camera CMOS sensor，CLAIRPIXEL cmos，韩国产CMOS，可视门铃模组，大像素单元SENSOR，CP8108 CLAIRPIXEL 1/3"全新宽动态摄像头模组120db，800TVL用于楼宇对讲、可视门铃
韩国CLAIRPIXEL CP8108最具性价比的宽动态方案：
近年来,安防行业转入CMOS作为图像传感器的主流方向，虽然都采用了CMOS作为图像传感器，但是整个行业都忽略了一点——宽动态摄像机的发展。相对于复杂的CCD而言， CMOS的架构模式, 十分适合宽动态摄像机。但目前行业人士还没有重视到这一大块市场。

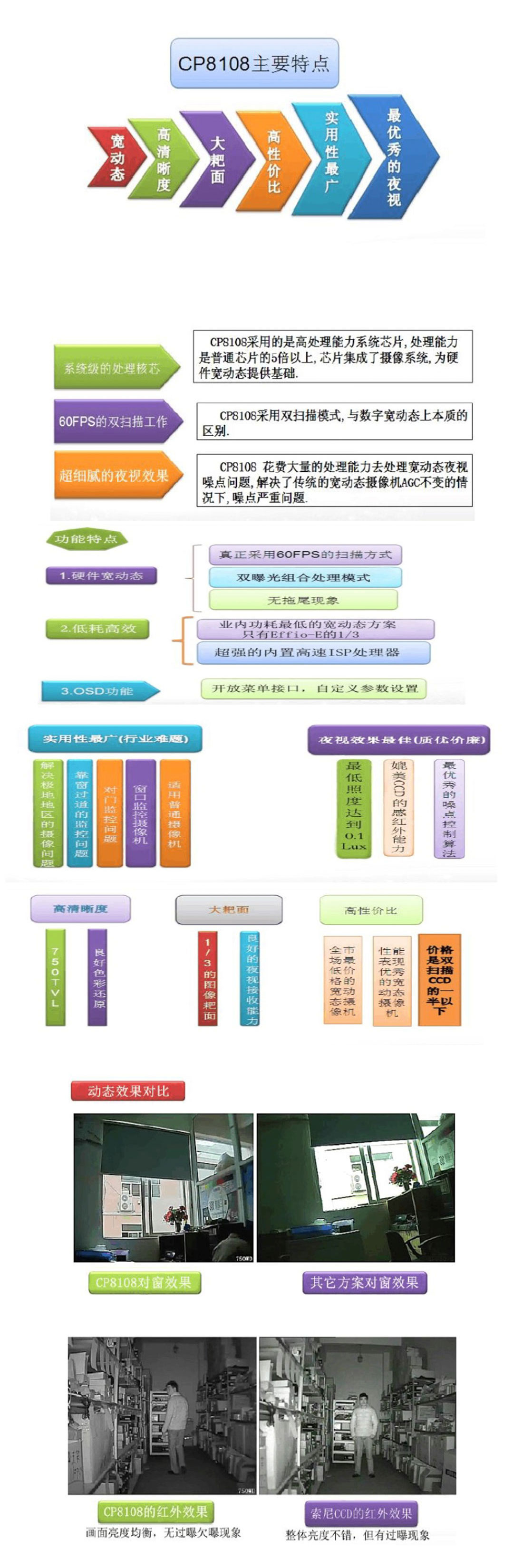

韩国宽动态CMOS图像传感器CP8108通过其超强的宽动态功能来获得高质量的图像，极大的提升了一幅图像中亮和暗区域的影像拍摄效果，解决了欠曝和过曝的行业难题，因此可以达到比其他方案更真实、更清晰的图像效果。在宽动态处理上, CP8108采用的是两次曝光辅以内置ISP控制技术，相比于CCD的数字宽动态有了高的动态范围。从数值上来看, CP8108的动态范围可达120dB,在提升动态范围的同时，内置ISP也解决了CCD传感器在处理动态范围和色彩真实性上的不足，其色彩还原性更加真实锐丽，能够满足多种环境的摄像要求。CP8108特点：一：真正宽动态，智能化开启，带OSD菜单，可通过菜单选择打开或者关闭宽动态功能，也可以调节动态范围，二：智能红外夜视，夜视情况下自动开启宽动态达到智能红外效果，不产生过曝现象，使被画面层次丰富、立体感强，三：采用CLCC封装，降低了CMOS芯片贴片的技术难度，并解决了BGA封装产品的维修难题。

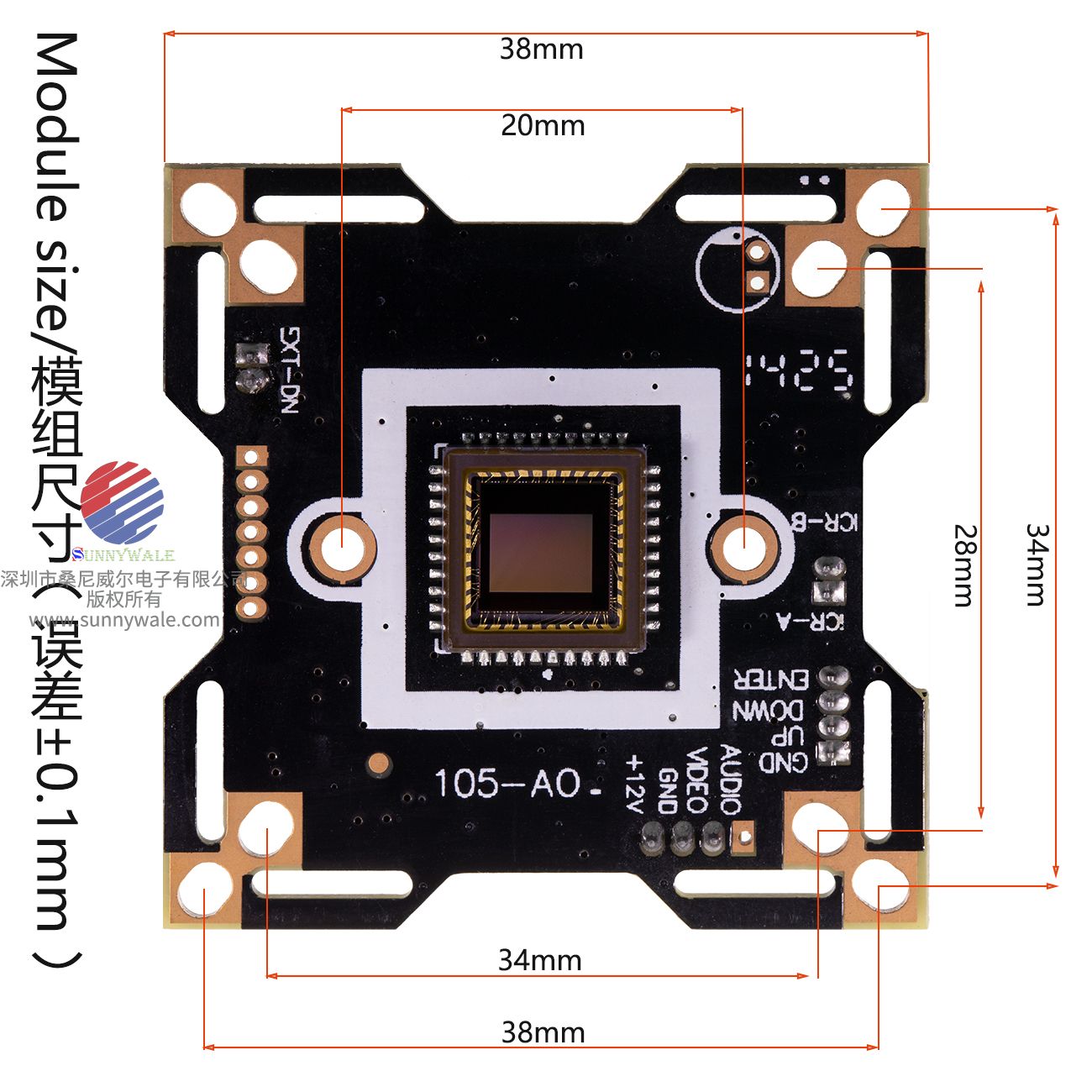

CP8108规格参数
传感器 : 1/3 inch CMOS
像素大小 : 6.5um * 7.4um
感光面积 : 4.732mm(H)*3.611mm(V)
总像素: 720(H) *480(V)
同步系统 : 内同步;
感光度 : 6.4V/Lux.sec
最低照度 : 0.1 LUX (F1.2, 5600K)
白平衡 : 自动
动态范围 : 120dB
视频输出 ：Analog(模拟)
规范
DESCRIPTSION
CP8108是一种单芯片视频/图像摄像机传感器，采用Clairepixel开发的独特的WideyeTM技术，允许在极端不同的光照条件下进行视频捕获，因此它适合于汽车摄像头和安全系统。CP8108设置了一个720x480图像阵列，每秒输出最多60帧(720x480)，并支持各种形式的数字输出格式和NTSC/PAL复合输出。CP8108具有多种摄像机控制功能，可通过两线串行接口编程。
特性
。ClairPixel的宽频、宽动态范围技术
。片上系统-完全集成的摄像系统
。集成微控制器的灵活性
。CVBS, 8-，10位并行数字输出
。拜耳降噪，镜头阴影补偿，缺陷像素补偿
。颜色校正，伽马校正，
。色相/饱和度、对比度、亮度控制
。边缘增强
。停车指南，OSD，隐私区域面具，
。自动特点
自动曝光，自动白平衡，
防闪烁，黑色电平校准
。NTSC/PAL编码器，10位DAC
。2路(主从)两线串行接口
。嵌入式2通道8位通用ADC用于OSD和CdS
参数/典型值
光学尺寸:
光学格式1/3英寸
像素大小6.5 um X 7.4 um
有效决议720(H) X 480(V)
活动像素面积4.732 mm(H) X 3.611 mm(V)
数字输出:
10bit, 8bit RGB Bayer，
YCbCr422,
RGB565/555, CCIR656
模拟输出:CVBS(NTSC/PAL) @ 54MHz
最大时钟频率:54MHz
最大帧速率:
720x480, 30fps @ 27MHz (YCbCr)
720x480, 60fps @ 54MHz (YCbCr)
720x480, 30fps @ 27MHz(拜耳)
720x480, 60fps @ 54MHz(拜耳)
卷帘类型:电子卷帘
灵敏度:[结核D] V / lux-sec
动态范围
信噪比:[结核D] dB
Max。可编程增益:模拟(x72)，数字(x31.5)
输入电压范围:0V~3V
电源电压:
像素3.3V±10%
模拟3.3V±10%
数字1.5V±10%
I/O 3.3V±10%
能源消耗:
活动(T.B.D)
备用(T.B.D)
工作温度:-40°C ~ 105°C
封装类型:40pin CLCC、wafer 或 Die
应用:
。汽车
。机器视觉
。安全监控摄像头,可视门铃
CP8108是CMOS D1图像传感器，1/3英寸光学格式，340,000像素。
图2-1是CP8108和776x516像素阵列的框图，通过TG、ISP、Formatter输出到10位数字并行端口，或通过NTSC/PAL编码器、10位视频DAC输出到模拟复合端口。提供2路(主、从)两线串行接口和2路GPIO或PWM
外部接口。内置8位MCU，提供整体芯片控制和灵活性。
这个文档包含新产品的信息。规格及资料如有变更，恕不另行通知。
Use of this specification for product design requires an executed license agreement from the ClairPixel.
The ClairPixel shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. All parts of the ClairPixel Specification are protected by copyright law and all rights are reserved. This documentation may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine readable form without prior consent, in writing, from the ClairPixel.
Specification
DESCRIPTSION
CP8108 is a single-chip video/image camera sensor that uses a unique WideyeTM technology developed by Clairepixel to allow video capture in extremely diverse lighting conditions, hence making it suitable for auto vehicle cameras and security systems. CP8108 is set up with a 720x480 image array, outputs up to 60 frames (720x480) per second, and supports various forms of digital output format and NTSC/PAL composite output. CP8108 has various camera control functions, and can be programmed through a two-wire serial interface.
FEATURES
. ClairPixel’ s WideyeTM , Wide Dynamic Range technology
. System-on-a-chip(SOC)-completely integrated camera system
. Integrated microcontroller for flexibility
. CVBS, 8-,10-bit parallel digital output
. Bayer Noise Reduction, Lens Shading Compensation, Defective Pixel Compensation
. Color Correction, Gamma Correction,
. Hue/Saturation, Contrast/Brightness Control
. Edge Enhancement
. Parking Guide, OSD, Privacy Zone Mask,
. Automatic features :
Auto Exposure, Auto White Balance,
Anti-Flicker, Black Level Calibration
. NTSC/PAL encoder with 10bit DAC
. 2 channel(Master, Slave) Two-wire serial interface
. Embedded 2 channel 8-bit General ADC for OSD & CdS
PARAMETER /TYPICAL VALUE
Optical Dimension:
Optical Format 1/3 inch
Pixel Size 6.5 um X 7.4 um
Effective Resolution 720(H) X 480(V)
Active Pixel Area 4.732 mm(H) X 3.611 mm(V)
Digital Output:
10bit, 8bit RGB Bayer,
YCbCr422,
RGB565/555, CCIR656
Analog Output : CVBS( NTSC/PAL) @ 54MHz
Maximum Clock Frequency : 54MHz
Maximum Frame Rate :
720x480, 30fps @ 27MHz (YCbCr)
720x480, 60fps @ 54MHz (YCbCr)
720x480, 30fps @ 27MHz (Bayer)
720x480, 60fps @ 54MHz (Bayer)
Shutter Type : Electronic Rolling Shutter
Sensitivity : [T.B.D] V / lux-sec
Dynamic Range
SNR: [T.B.D] dB
Max. Programmable Gain : analog (x72), digital (x31.5)
GADC input voltage range : 0V~3V
Supply Voltage :
Pixel 3.3V ± 10%
Analog 3.3V ± 10%
Digital 1.5V ± 10%
I/O 3.3V ± 10%
Power Consumption :
Active [T.B.D]
Standby [T.B.D]
Operating Temperature : -40°C ~ 105°C
Package Type : 40pin CLCC, Wafer or Die
APPLICATIONS:
. Automotive
. Machine Visions
. Security surveillance cameras
CP8108 is a CMOS D1 Image Sensor in 1/3-inch optical format with 340,000 pixels.
Figure 2-1 is a broad view of the block diagram of CP8108 and the 776x516 pixel array is output through TG, , ISP, Formatter to the 10-bit digital parallel port, or through NTSC/PAL Encoder, 10-bit Video DAC to analog composite port. 2 channel (master, slave) two-wire serial interface and 2 channel GPIO or PWM are provided for
external interface. 8 bit MCU is built in to provide an overall chip control and flexibility.
This document contains information on a new product. Specifications and information herein are subject to change without notice.
