HI3516ERBCV100海思H.264,H.265高性能SoC视频压缩编码器芯片IC,安防监控模组
2022-10-08 19:55:00
点击购买
HI3516ERBCV100是工业专用高清IP摄像机设计的新一代SoC。它集成了新一代ISP和业内最新的H.265视频压缩编码器。它采用先进的低功耗技术和架构设计。所有这些特性使hi3516e v100能够在低比特率、高调和低功耗方面引领业界。HI3516EV100集成了PoR、RTC、音频编解码器和备用唤醒电路，大大降低了客户的电子书成本。此外，与其他海思DVR和NVR芯片的接口设计类似，便于客户产品的开发和批量生产。

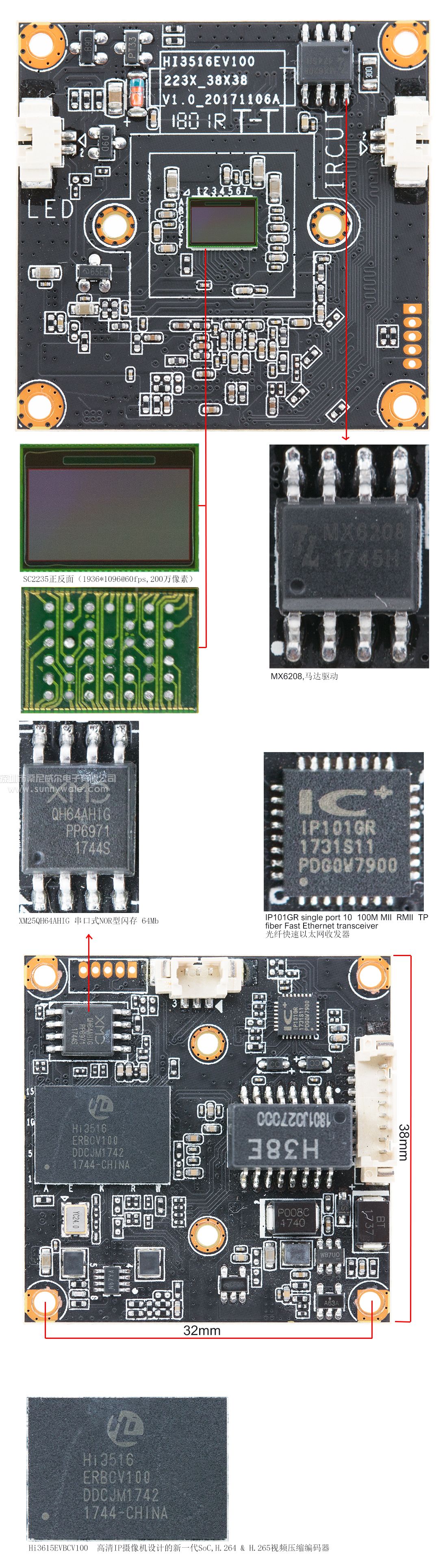

板载IC:
HI3516ERBCV100(SoC),

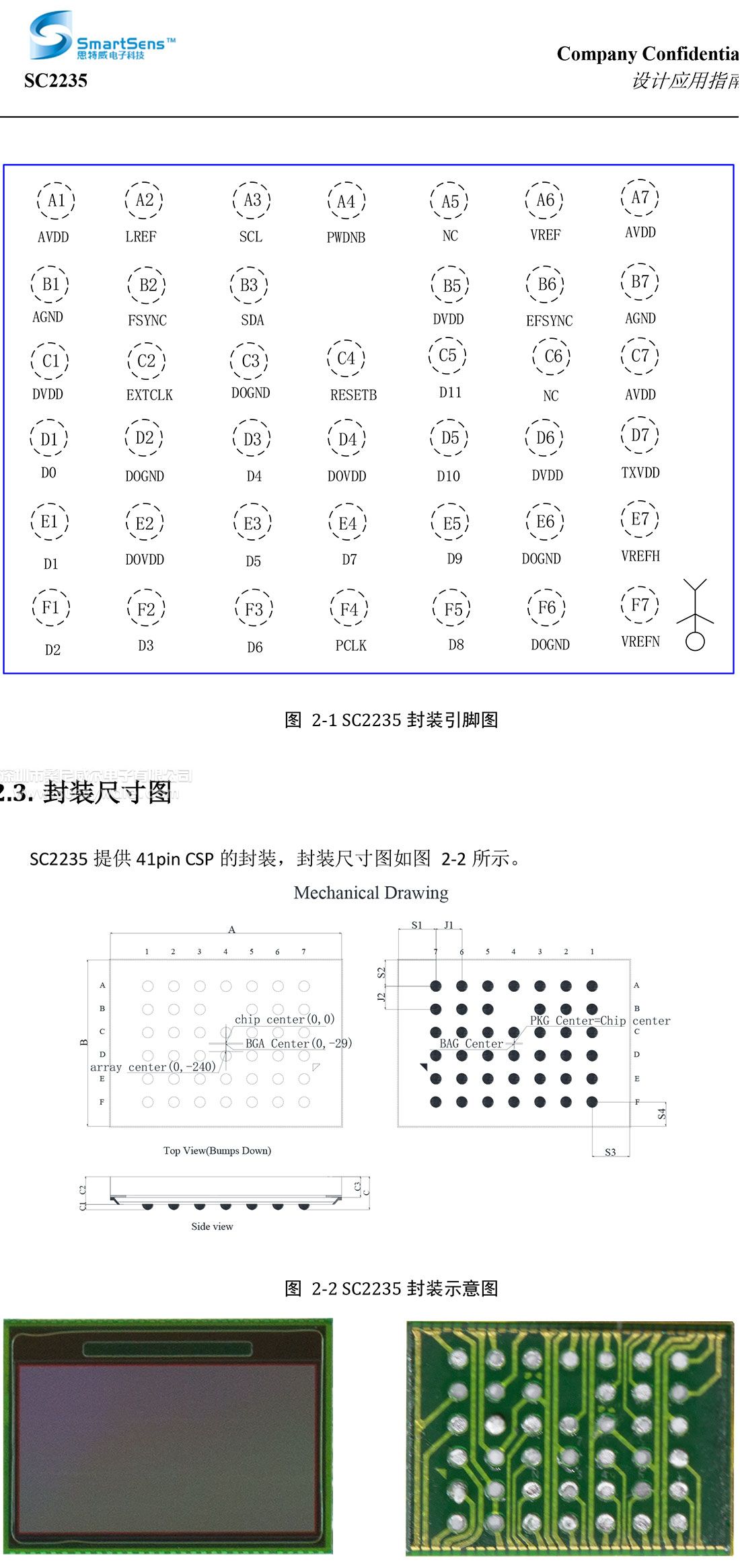

SC2235H(2MP CMOS SENSOR)
MX6208（对焦马达驱动）
XM25QH64AHIG(串口式NOR闪存64Mb)
IP101G(单口10-100M光纤快速以太网收发器)
HI3516ERBCV100主控,SC2235H,MX6208,XM25QH64AHIG,IP101G，海思HI3516EV100+SC2235安防摄像机模组,32X32mm安防模组，200万像素摄像机主板，思特威图像传感器，SC2235芯片，2MP camera module,H.265压缩芯片，H.264编码器IC，海思编码器芯片

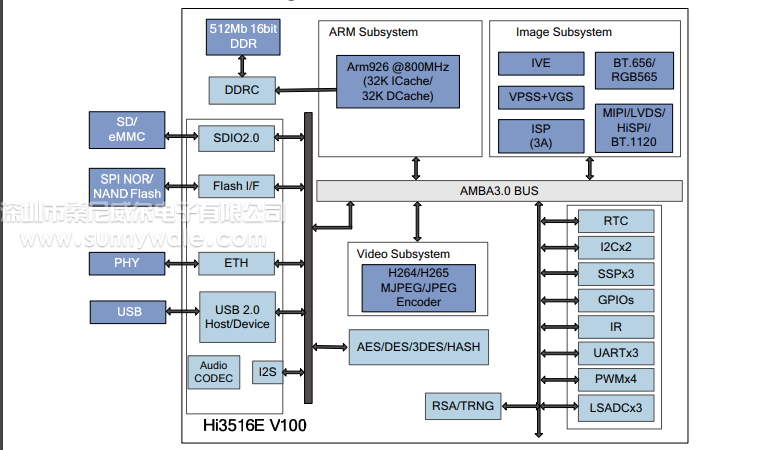

The HI3516ERBCV100 is a new generation OF SoC designed for industrial dedicated HD IP cameras. It integrates a new generation ISP with the industry's latest H.265 video compression encoder.It USES advanced low power technology and architecture design.All of these features enable the HI3516E V100 to lead the industry in low bit rate, high profile and low power consumption.The HI3516EV100 integrates PoR, RTC, audio codec and backup wake-up circuit, greatly reducing the cost of e-books for customers.In addition, the interface design is similar to that of other Hayes DVR and NVR chips to facilitate the development and mass production of customer products.
ARM926@800 MHz with 32 KB I-cache and 32 KB D-cache
Video Encoding
H.264 BP/MP/HP
H.265 Main Profile
