MN34041PLJ
CMOS Image Sensor
Overview
This is a CMOS-type sensor of 1/3 type offering 2.1 mega pixels. This product consists of embedded photodiode, pixel block by CMOS transistor, column AD converter, built-in timing generator (TG), high speed serial output I/F and functional circuits of various kinds.High definition 12-bit digital image signals offering 2.1 mega pixels are obtained with high speed of 60 fps and with low powerconsumption.
Features
Scan mode : Progressive scan
Optical size : 1/3 type (inch)
Number of active pixels : 1944 (H) × 1092 (V) = 2,122,848 (pixel)
Total number of pixels : 2010 (H) × 1108 (V) = 2,227,080 (pixel)
Pixel size : 2.75 (H) ìm × 2.75 (V) ìm
Number of pins : 104 pins (including pins of “N.C.”)
Actual imaging area dimensions
(active pixel area) : 5.346 (H) mm × 3.003 (V) mm
Color filter arrangement : Bayer arrangement of primary colors: R, G, B
Power supply voltage : 3.3 V / 1.8 V / 1.2 V
Master clock : 27 MHz / 37.125 MHz
Bit number of internal ADC : 12-bit
Output signal type : subLVDS DDR method 486 Mbps (MCLK = 27 MHz)445.5 Mbps (MCLK = 37.125 MHz)
Register I / F : 3-lines serial I/F
Output frame rate per second (full scan) : 30 fps, 60 fps *1
Electronic shutter (full scan) : At 60 fps : 1/60 s to 1/67500 s (1/67500s step)
Variable gain (Column amplifier) : Full scan : Standard +0 / +6 / +12 dB
Variable gain (Analog) : Full scan : 0 dB / 6 dB
Variable digital gain
(Digital processing) : 0 dB to 12 dB
Functions : Full scan mode: 2.1 M pixel outputVertical Flip *2
Long exposure mode
Note
*1: This drive mode is available in chip set with Panasonic DSP (MN2PS00003RF) only.
*2: Apply mirror and flip function in DSP

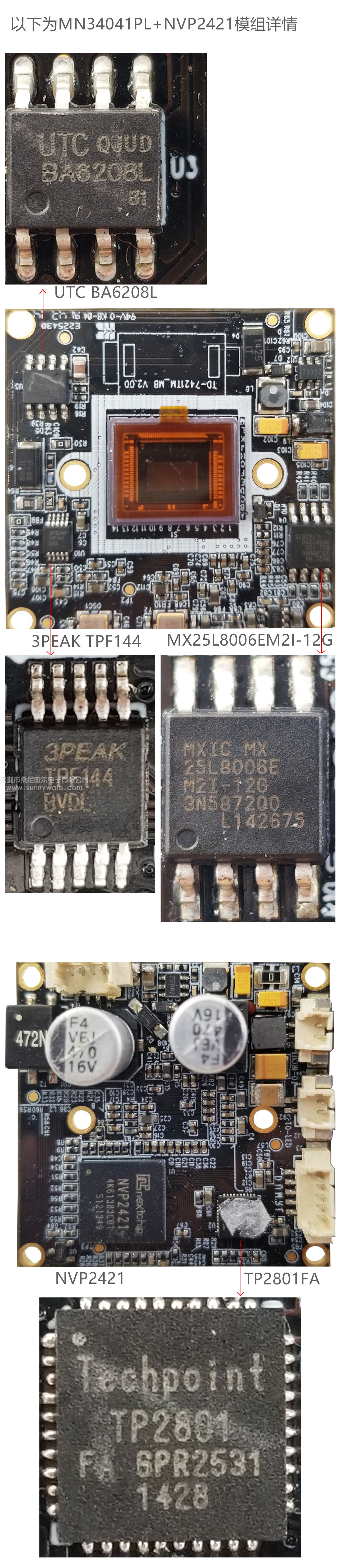

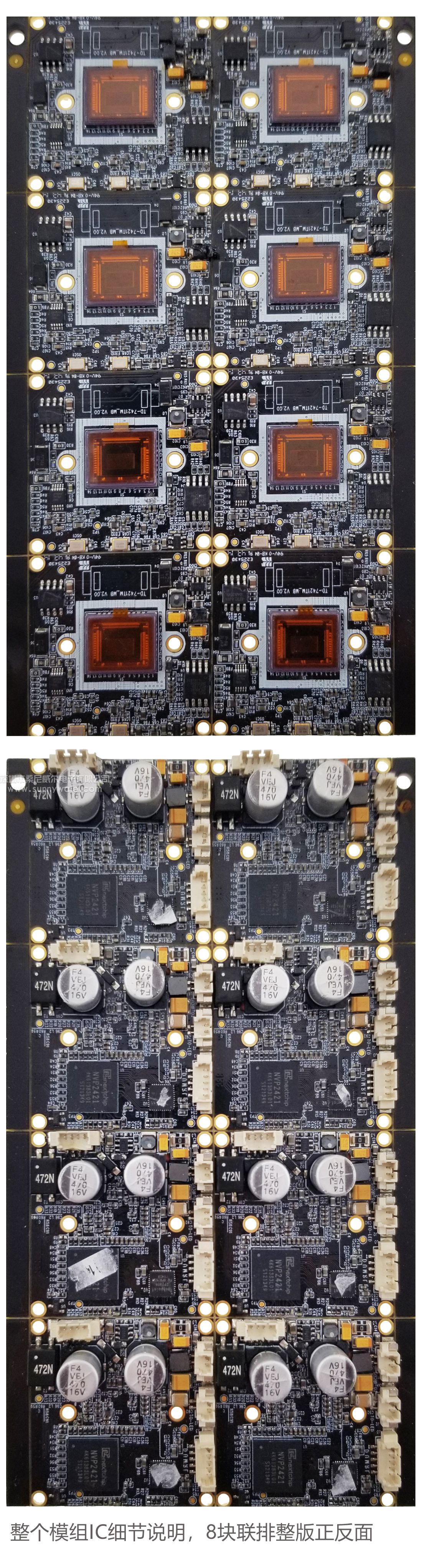

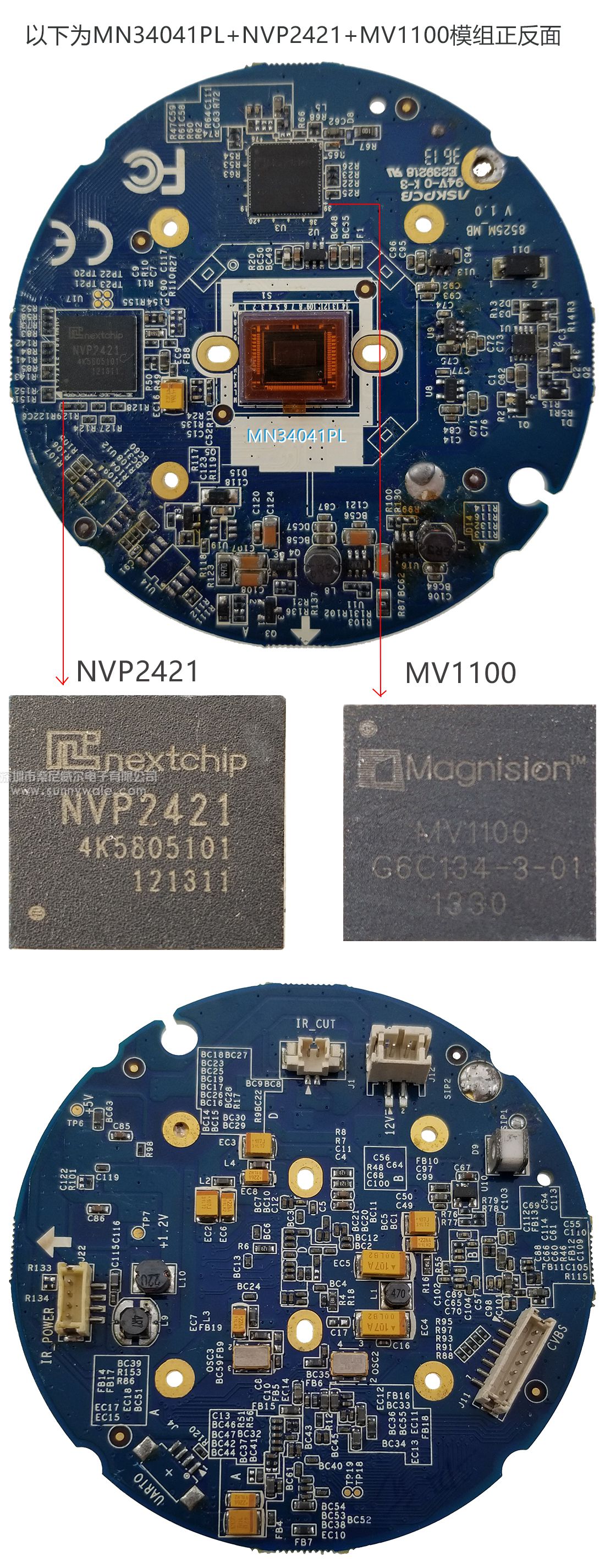

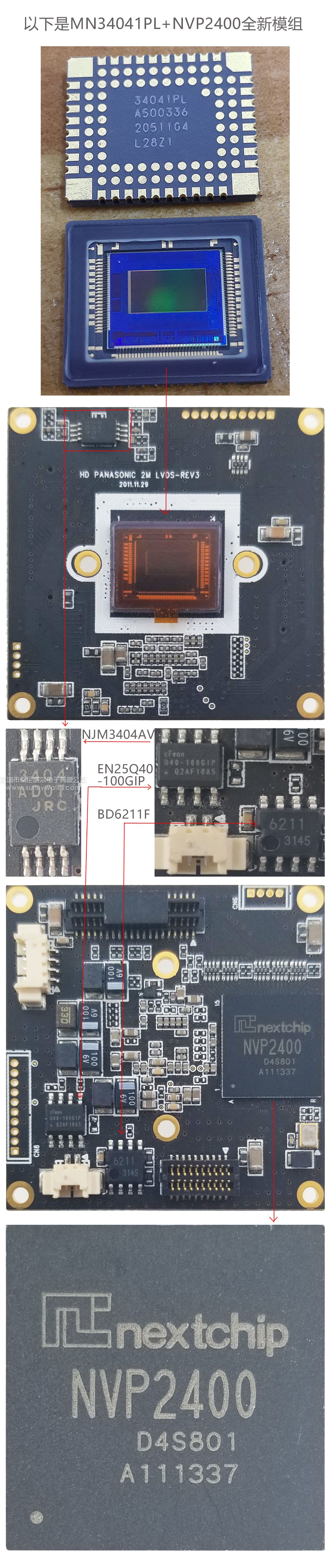

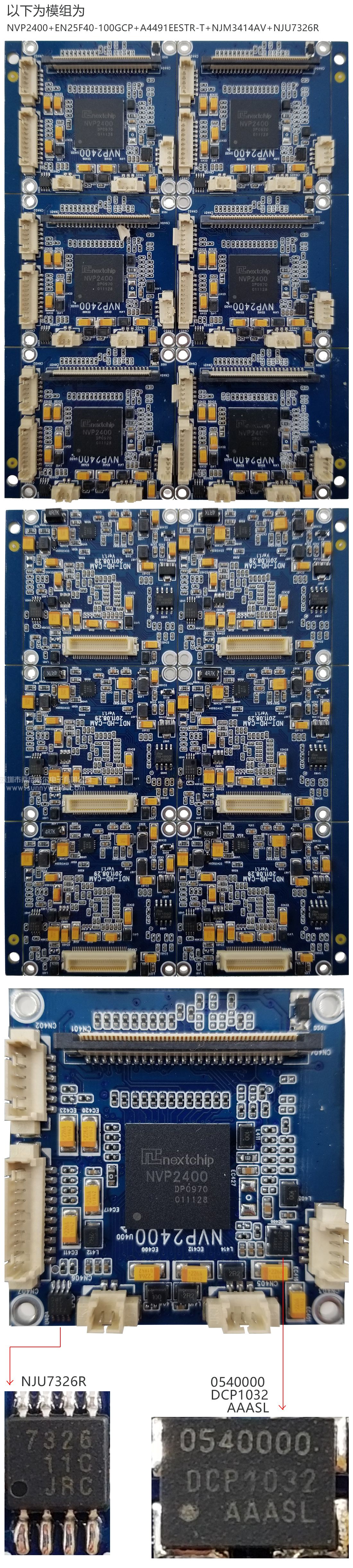

Applications
IP camera (Network camera)
Monitoring camera
