ICX679AKA SONY超级模拟高清CCD (WDR宽动态) 960H (高解析度)976(H)*582(V) (Type 1/4) CCD Image Sensor for PAL Color Video Cameras索尼高解析60万像素监控安防摄像机彩色CCD图
2022-08-18 13:28:53
点击购买

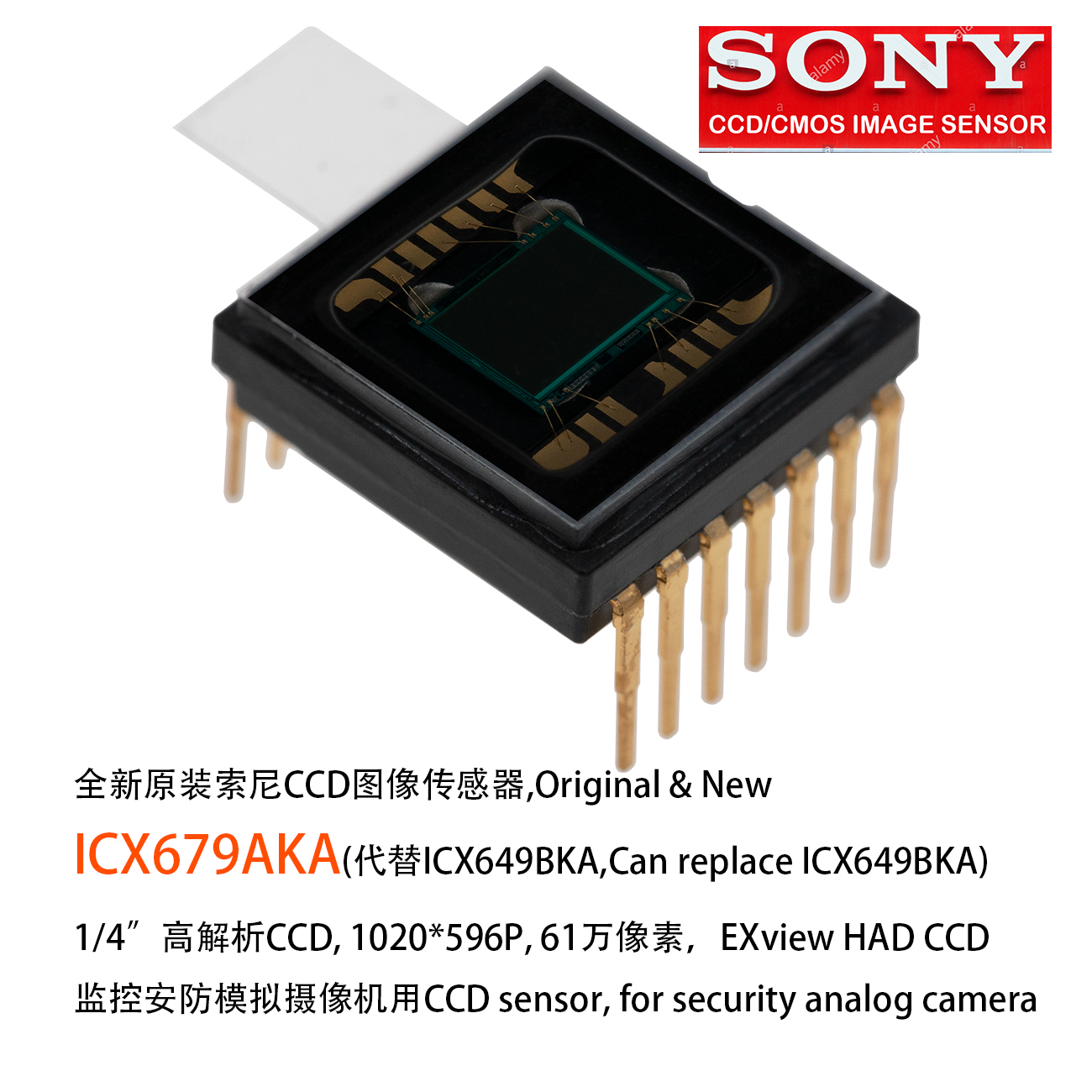

ICX679AKA，索尼高解析60万像素1/4 CCD，监控安防摄像机彩色CCD图像传感器，可代替ICX649BKA，是ICX649BKA的升级产品，视频摄像机CCD传感器，索尼宽动态模拟CCD，SONY超级模拟高清CCD
Description
The ICX679AKA is an interline CCD image sensor suitable for PAL color video cameras with a diagonal 4.5mm (Type 1/4) system. Compared with the current product (ICX649BKA), It is Can replace ICX649BKA.the horizontal pixels are increased and sensitivity, especially near infrared sensitivity, is improved through the adoption of EXview HAD CCD technology.This chip features a field period readout system and an electronic shutter with variable charge-storage time.This chip is suitable for applications such as surveillance cameras.
Features
◆ High sensitivity
◆High saturation signal
◆ High resolution
◆ Excellent anti-blooming characteristics
◆ Ye, Cy, Mg, and G complementary color mosaic filters on chip
◆ Continuous variable-speed shutter function
◆ No voltage adjustments (Reset gate and substrate bias need no adjustment.)
◆ Reset gate: 3.3V drive
◆ Horizontal register: 3.3V drive
◆ Recommended range of exit pupil distance -20 to -100mm
◆ Package14-pin DIP (Plastic)
Device Structure
◆ Interline CCD image sensor
◆ Image sizeDiagonal 4.5mm (Type 1/4)
◆ Number of effective pixels976 (H) x 582 (V) approx. 570K pixels
◆ Total number of pixels1020 (H) x 596 (V) approx. 610K pixels
◆ Unit cell size3.75μm (H) x 4.69μm (V)
◆ Optical black Horizontal
(H) direction: Front 4 pixels, rear 40 pixelsVertical
(V) direction : Front 12 pixels, rear 2 pixels
◆ Number of dummy bitsHorizontal: 12Vertical:1 (even fields only)
◆ Substrate material Silicon
ICX679AKA索尼对角线4.5mm(1/4型)CCD图像传感器，用于PAL彩色视频摄像机
描述
ICX679AKA是一种线间CCD图像传感器，适用于PAL彩色摄像机对角线4.5mm(1/4型)系统。与现有产品(ICX649BKA)相比，可代替ICX649BKA。通过采用EXview HAD CCD技术，提高了水平像素，提高了灵敏度，尤其是近红外灵敏度。该芯片具有现场周期读出系统和可变充电存储时间的电子快门。该芯片适用于监控摄像头等应用。
特性
◆ 高灵敏度
◆ 高饱和信号
◆ 高分辨率
◆ 具有优良的抗晕特性
◆ 片上Ye、Cy、Mg、G互补色马赛克滤光片
◆ 连续变速快门功能
◆无电压调整(复位栅和基片偏压无需调整)
◆ 复位门:3.3V驱动
◆水平对位:3.3V驱动
◆推荐出瞳距离范围-20 ~ -100mm
◆ 封装:14针DIP(塑料)
设备结构
◆ 线间CCD图像传感器
◆ 图像尺寸对角线4.5mm(1/4型)
◆ 有效像素数约为976 (H) x 582 (V)57万像素
◆ 总像素：1020 (H) x 596，的总数约61万像素
◆ 像元尺寸：3.75μm (H) x 4.69μm (V)
◆ 光学黑色水平
(H)方向:前面4像素，后面40像素垂直
(V)方向:前12像素，后2像素
◆ 虚拟位数:水平:12垂直:1(仅限偶数字段)
◆ 衬底材料硅
