MT9V034C12STC Aptina ONSEMI安森美全局快门RGB彩色VGA大像元高帧率图像传感器CMOS SENSOR,用于工业相机,机器视觉相机,安防监控摄像机
2022-08-05 01:12:43
点击购买amazon

MT9V034C12STC, ONSEMI工业相机图像传感器,安森美全局快门感光芯片,RGB彩色传感器,VGA大像元高帧率图像传感器,全局曝光CMOS SENSOR,用于工业相机,机器视觉相机CMOS,安防监控摄像机芯片,1/3图像芯片

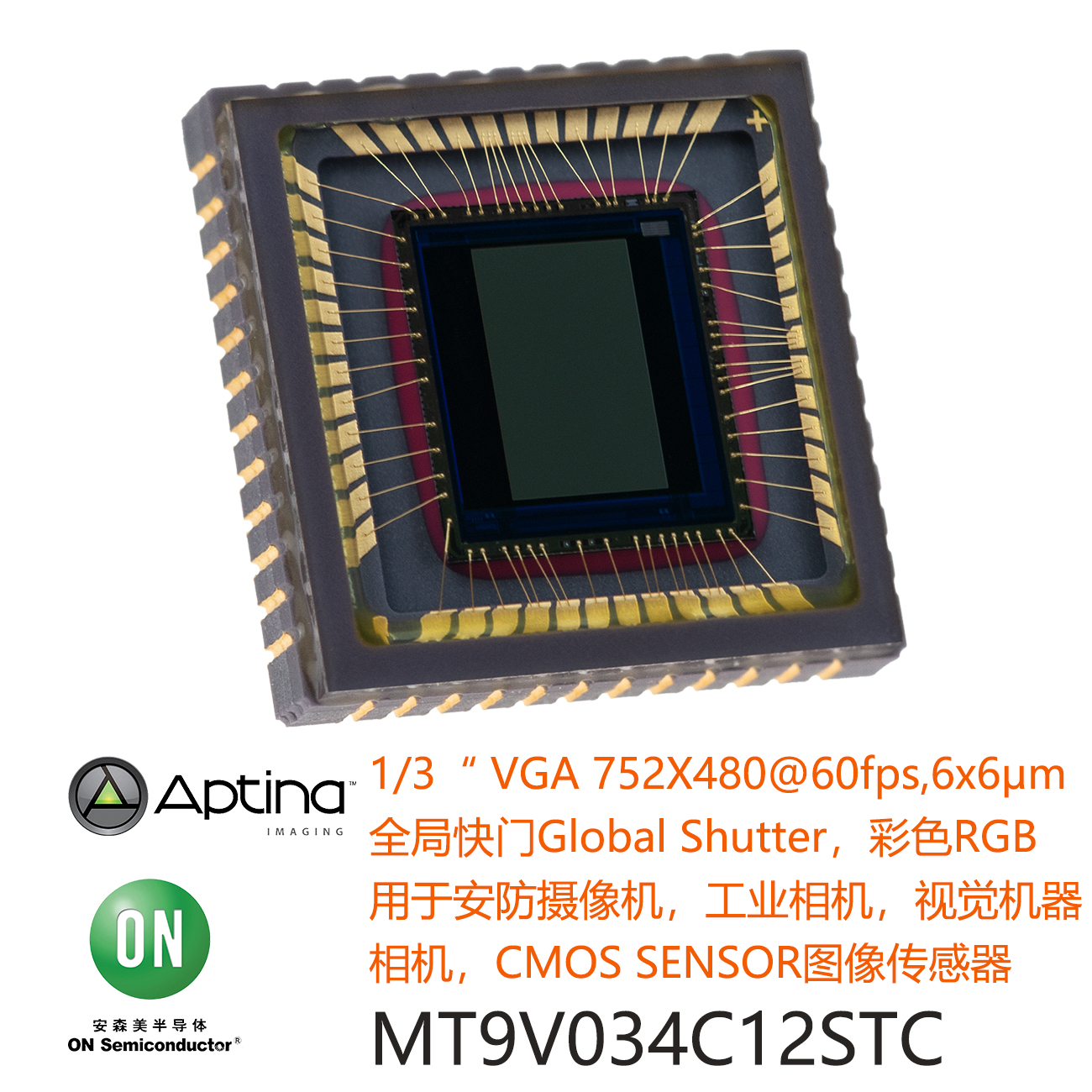

MT9V034C12STC
ONSEMI工业相机图像传感器
MT9V034C12STC, Aptina ONSEMI VGA CMOS SENSOR,全局快门Global shutter用于工业相机industrial、视觉机器相机Visual machine camera、安防摄像机Security camera...图像传感器cmos image sensor,彩色RGB图像传感器,像素尺寸6x6μm,762x480px,大像元高帧率,1/3"

MT9V034 1/3-Inch Wide-VGA CMOS Digital Image Sensor Datasheet, Rev. G

特性
•阵列格式:宽VGA,Active 752H x 480V (360960像素)
•全局快门光电二极管像素;同时集成和读出
•RGB拜耳或单色:用于非可见近红外照明的近红外增强性能•读出模式:渐进或交错
•快门效率:99%•简单的二线串行接口
•实时曝光上下文切换-双寄存器设置
•寄存器锁定功能
•窗口大小:用户可编程任何较小的格式(QVGA, CIF, QCIF)。数据率可以保持独立的窗口大小
•装箱:2×2和4×4的完整分辨率
•ADC:芯片上,10位列并行(可选择12位到10位压缩模式)
•自动控制:自动曝光控制(AEC)和自动增益控制(AGC);可变区域和可变重量AEC/AGC
•支持四个独特的串行控制寄存器id来控制同一总线上的多个映像器
•数据输出格式:
-单传感器模式:10位并行/独立的8位或10位串行LVDS
-立体传感器模式:点缀的8位串行LVDS
•高动态范围(HDR)模式

应用,用途
•安防监控摄像机
•高动态范围成像
•无人值守监测
•立体视觉•视频作为输入
•机器视觉•自动化

参数      值
光学格式:1/3英寸
活动成像仪尺寸:4.51毫米(H) x2.88毫米(V)对角线5.35毫米
活动像素:752H x 480V
像素大小:6.0 x 6.0mm米m
彩色滤镜阵列:单色或彩色RGB拜耳
快门类型:全局快门
最大数据速率主时钟:27 Mp/s 27 MHz
全分辨率:752 x480
帧速率:60帧/秒(满分辨率)
ADC分辨率:10位列并行
响应率:4.8 V/lux-sec (550nm)
动态范围:55dB线性;在100分贝在HDR模式电源电压3.3 v + 0.3 v (所有供应)
功耗:最大数据速率160mW (LVDS禁用);120年mW备用电源在3.3 v
工作温度:-30℃~ +70℃
封装:48-pin闭环化油器控制

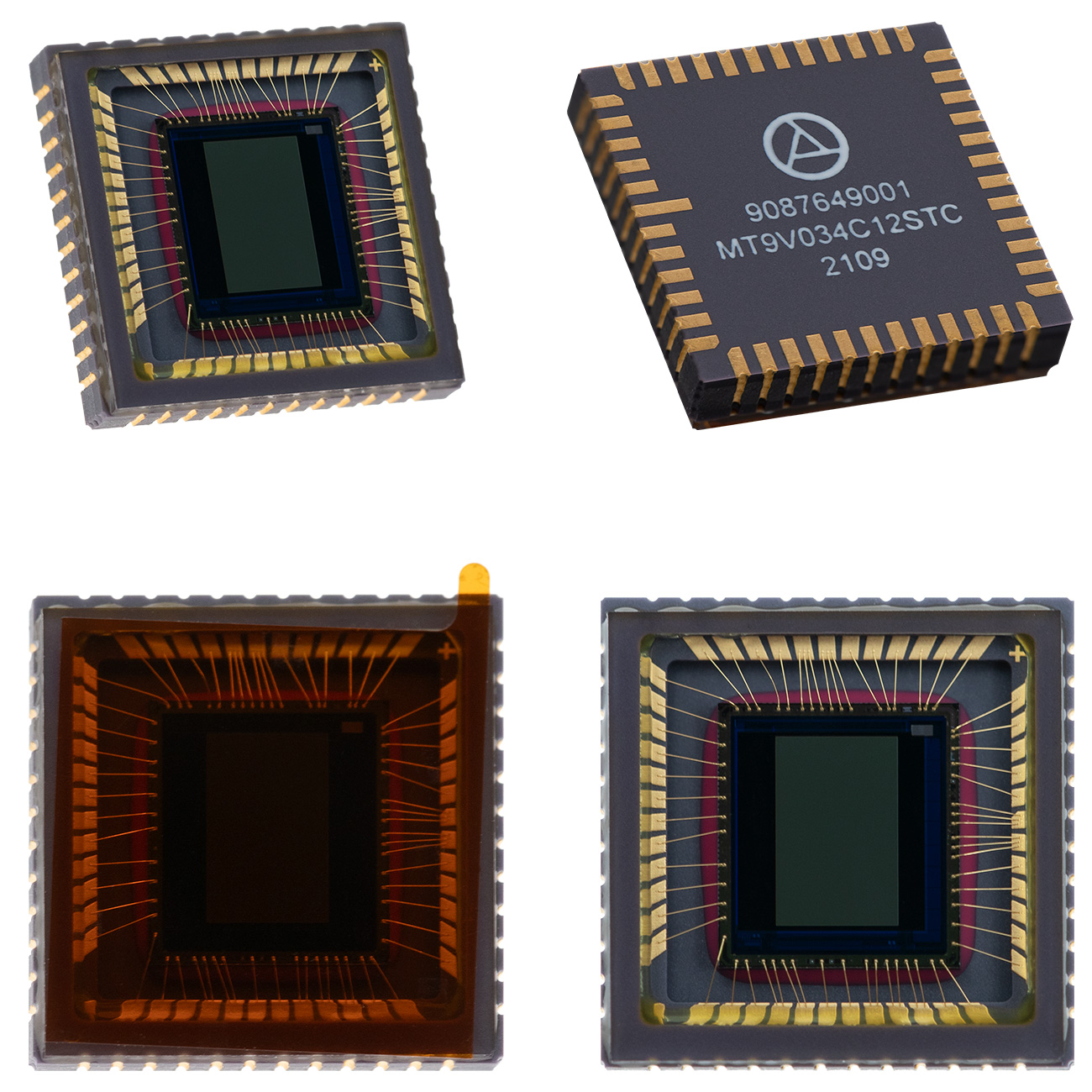

安森美全局快门感光芯片
RGB彩色传感器

=============================================================================================================

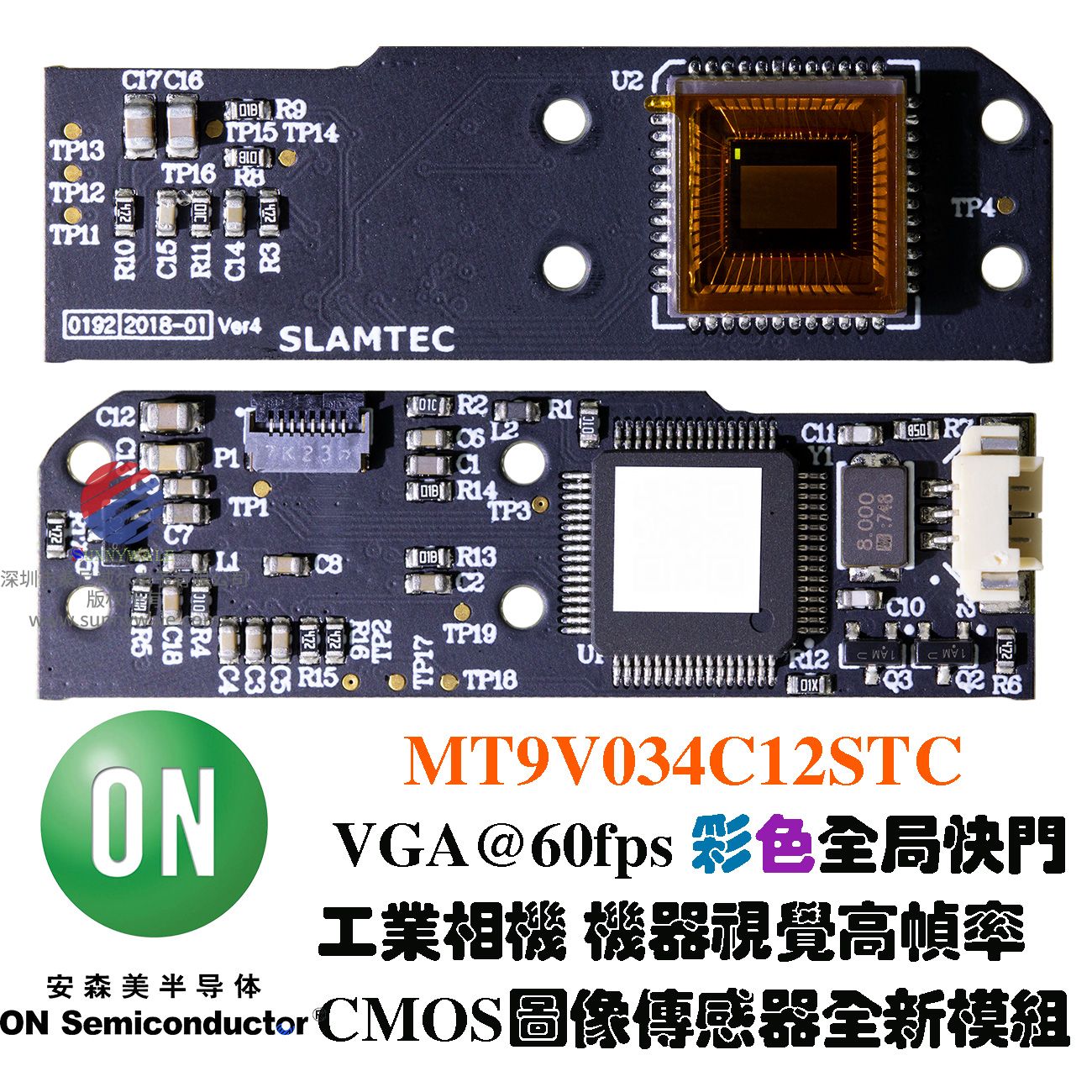

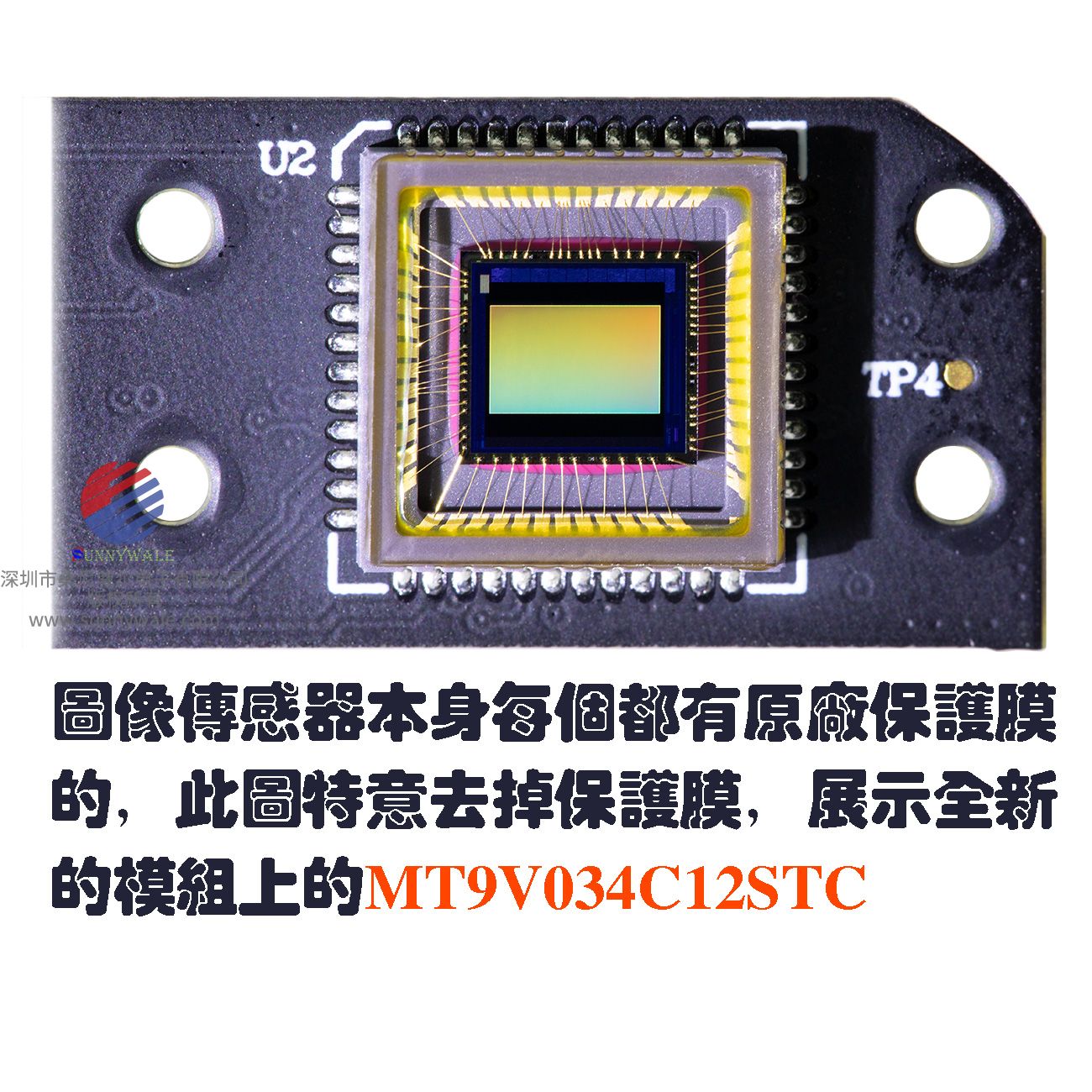

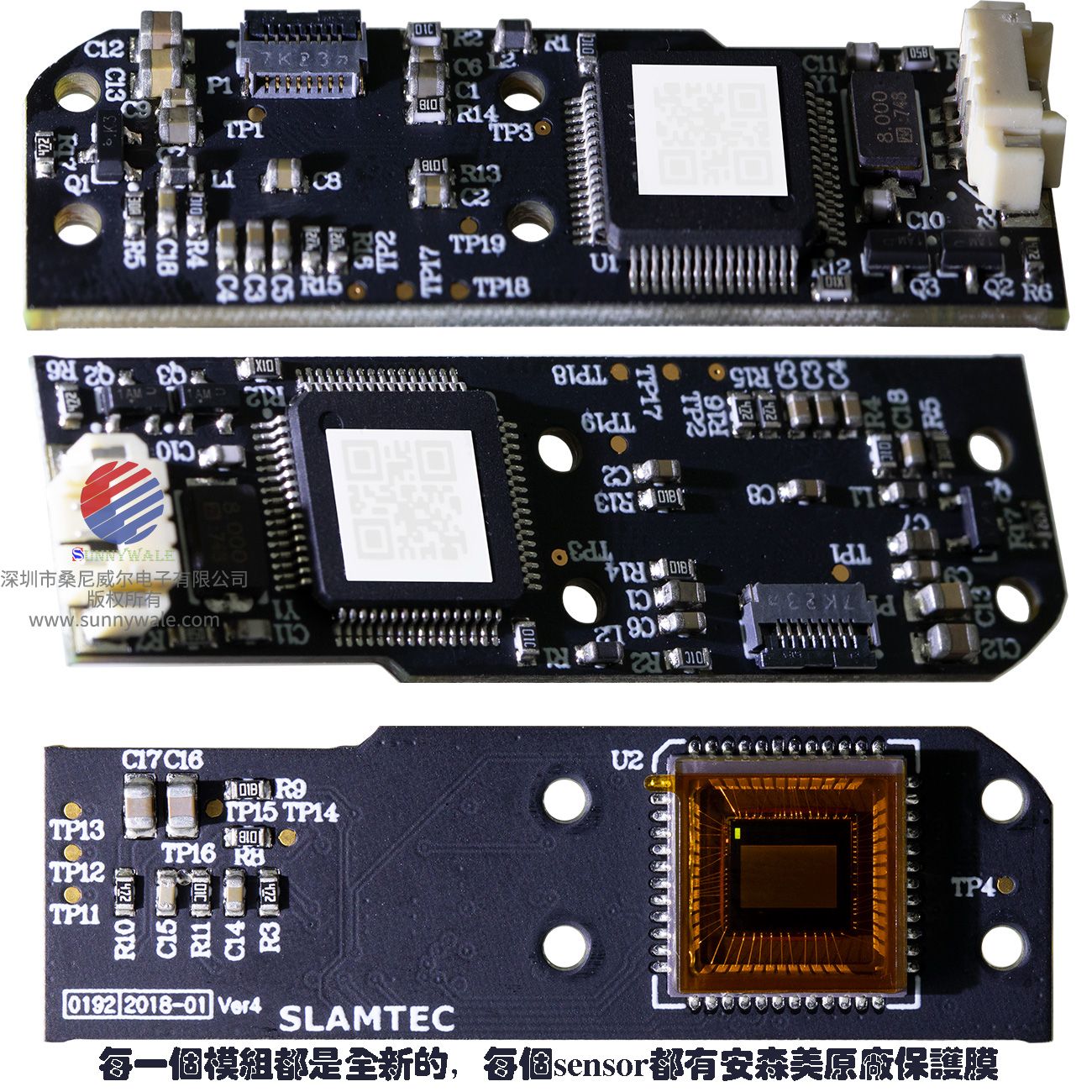

下面图片为此型号做出来的全新模组,可以出货
VGA大像元高帧率图像传感器
全局曝光CMOS SENSOR
用于工业相机
机器视觉相机CMOS 安防监控摄像机芯片


Features
• Array format: Wide-VGA, active 752H x 480V (360,960 pixels)
• Global shutter photodiode pixels; simultaneous integration and readout
• RGB Bayer or Monochrome: NIR enhanced performance for use with non-visible NIR illumination • Readout modes: progressive or interlaced
• Shutter efficiency: >99% • Simple two-wire serial interface
• Real-time exposure context switching - dual register set
• Register lock capability
• Window size: User programmable to any smaller format (QVGA, CIF, QCIF). Data rate can be maintained independent of window size
• Binning: 2 x 2 and 4 x 4 of the full resolution
• ADC: On-chip, 10-bit column-parallel (option to operate in 12-bit to 10-bit companding mode)
• Automatic controls: Auto exposure control (AEC) and auto gain control (AGC); variable regional and variable weight AEC/AGC
• Support for four unique serial control register IDs to control multiple imagers on the same bus
• Data output formats: – Single sensor mode: 10-bit parallel/stand-alone 8-bit or 10-bit serial LVDS – Stereo sensor mode: Interspersed 8-bit serial LVDS
• High dynamic range (HDR) mode

Applications
• Security
• High dynamic range imaging
• Unattended surveillance
• Stereo vision • Video as input
• Machine vision • Automation

Parameter             Value
Optical format :         1/3-inch
Active imager size:       4.51mm(H) x 2.88mm(V) 5.35mm diagonal
Active pixels:            752H x 480V
Pixel size:               6.0mm x 6.0mm
Color filter array :         Monochrome or color RGB Bayer
Shutter type:            Global shutter
Maximum data rate master clock :  27 Mp/s 27 MHz
Full resolution :          752 x 480
Frame rate:             60 fps (at full resolution)
ADC resolution:          10-bit column-parallel
Responsivity :            4.8 V/lux-sec (550nm)
Dynamic range:         >55dB linear; >100dB in HDR mode Supply voltage 3.3V +0.3V (all supplies)
Power consumption:       <160mW at maximum data rate (LVDS disabled); 120mW standby power at 3.3V
Operating temperature:    -30°C to +70°C ambient

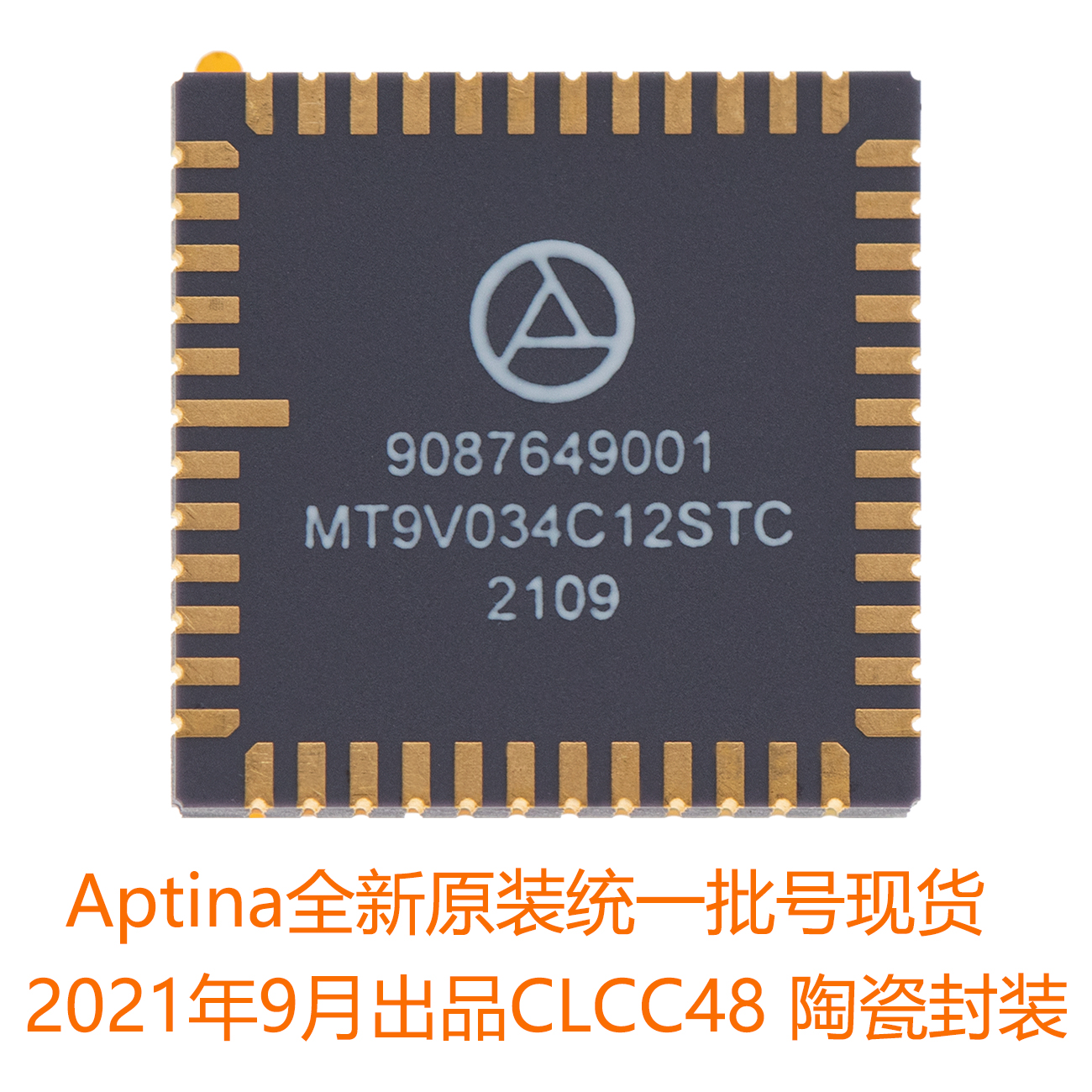

Packaging:                  48-pin CLCC

Ordering Information
Table 2: Available Part Numbers
Part Number             Product Description      Orderable Product Attribute Description

MT9V034C12STC-DP ,         VGA 1/3" GS CIS ,                        Dry Pack with Protective Film
MT9V034C12STC-DR,         VGA 1/3" GS CIS ,                        Dry Pack without Protective Film
MT9V034C12STM-DP,         VGA 1/3" GS CIS ,                        Dry Pack with Protective Film
MT9V034C12STM-DR,         VGA 1/3" GS CIS,                        Dry Pack without Protective Film
MT9V034C12STM-DR1,      VGA 1/3" GS CIS  ,                       Dry Pack Single Tray without Protective Film
MT9V034C12STM-TP,         VGA 1/3" GS CIS ,                        Tape & Reel with Protective Film
MT9V034C12STM-TR,         VGA 1/3" GS CIS ,                       Tape & Reel without Protective Film
MT9V034D00STMC13CC1-200,  VGA 1/3" GS CIS ,                Die Sales, 200ìm Thickness
MT9V034W00STMC13CC1-750,  VGA 1/3" GS CIS ,               Wafer Sales, 750ìm Thickness


MT9V034C12STC, Aptina ONSEMI VGA CMOS SENSOR,全局快门Global shutter用于工业相机industrial、视觉机器相机Visual machine camera、安防摄像机Security camera...图像传感器cmos image sensor,彩色RGB图像传感器,像素尺寸6x6μm,762x480px,大像元高帧率,1/3

有关MT9V034C12STC的价格,datasheet download免费下载,简介,PDF文档下载,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书下载,代理商,技术支持,产品介绍,参数,方案,分销,经销,官网,生产厂家,批量采购,模组,模块,特价,库存,哪里买,性价比,用途,封装厂,晶圆,代工,可咨询本公司

https://www.sunnywale.com/uploadfile/2022/0805/MT9V034_Awin.pdf
点击或者复制上面链接到浏览器打开,MT9V034 datasheet PDF file可免费下载,Click or copy the link to free download the datasheet PDF file.

满2件全国包邮,如果你有货,可以卖给我,当我求购MT9V034I12STC,你需要购买MT9V034,可以找我买。
Freight is free when you buy 2 pieces in China, if you have MT9V034 inventory, you can sell to me, if you need buy MT9V034, you can ask me to buy.

如果你想了解单色黑白的Mono chrome MT9V034C12STM,请点击

如果想要了解此同类产品黑白型号MT9V032C12STM,或请点击下面链接,或访问本公司官网:sunnywale.com,搜索关键词“MT9V032”,即可展现更多详情。
If you want to know about similar products MT9V032C12STM, or click here,or Visit The official website: sunnywale.com,Search the keywods“MT9V032”,it can show more details.
