IMX385LQR SONY Diagonal 8.35mm (Type 1/2) CMOS Solid-state Image Sensor with Square Pixel for Color Cameras工业相机、安防摄像机图像传感器，AMA-2701摄像机模组，ATMEGA88PA
2022-06-07 22:46:39
点击购买
IMX385LQR， SONY (Type 1/2) CMOS，ATMEGA88PA，SONY 2MP SENSOR, Industrial camera sensor, security camera image sensor,1/2英寸工业相机图像传感器，索尼感光芯片，2百万像素CMOS,安防摄像机芯片，1/2-inch cmos sensor,AMA-2701 camera module摄像机模组，韩国进口ANTKR摄像机模组，10位深摄像机，MIPI-IMX385LQR Starlight Camera
IMX385LQR main parameters
● Aspect Ratio：16 : 9
● Bit Depth ：10
● Chromatics ：Color
● Frame Rate [fps]：120 fps
● Horizontal Resolution [px]：1920
● Vertical Resolution [px] ：1080
● Interface ：LVDS
● Manufacturer：Sony
● Package ：128pins LGA (Ceramic)
● Pixel Size x [μm] ：3.75
● Pixel Size y [μm] ：3.75
● Product Type ：Area Sensors
● Protective Film ：Yes
● Resolution [MP] ：2.07 MP
● Sensor Size ：1/2 inch
● Sensor Technology ：Exmor
● Sensor Type ：CMOS
● Shutter Type ：Rolling Shutter
CMOS Image Sensor for Industrial Applications that Realizes High Sensitivity Approximately Twice That of the Existing Product
Sony Semiconductor Solutions Corporation has developed the CMOS image sensor "IMX385LQR" for industrial applications. This new image sensor realizes high sensitivity approximately twice that of the existing product (IMX185LQJ)*1.
The IMX385LQR pursues picture quality at low illuminance most needed by cameras for industrial applications and mounts pixels with a sensitivity of 2350 mV, which is the highest sensitivity among Sony image sensors for industrial applications*2. In addition, SNR1s of 0.13 lx*3, which is the highest performance among Sony Full HD-compatible image sensors for industrial applications, is achieved by mounting an internal programmable gain amplifier and high conversion gain pixels. Superior performance as an image sensor for industrial applications is further achieved by combining HDR (High Dynamic Range) technology with technology that improves sensitivity in the near-infrared light region.
*1: See the New Product Information released in August 2013.
*2: As of January 2017 (based on in-house research)
*3: Low illuminance performance index advocated by Sony for image sensors for industrial applications
Overwhelming low illuminance performance
Cameras for industrial applications are required to produce color images with high picture quality even in dark conditions. High sensitivity characteristics of 2350 mV, which is approximately twice that of the existing Type 1/2 Full HD product (IMX185LQJ) with the same 3.75 μm pixel size have been achieved by mounting a new pixel with the highest sensitivity among Sony image sensors for industrial applications.
In addition, mounting high conversion rate pixels achieved SNR1s of 0.13 lx, which is the highest performance among Sony Full HD-compatible image sensors for industrial applications.
Furthermore, combination with technology for improving sensitivity in the near infrared light region also improves picture quality under near-infrared LED lighting.
DOL-HDR function
The IMX385LQR supports a DOL (digital overlap) -type HDR function. This function uses a method that outputs the data for three frames with different storage times line by line instead of frame by frame, enabling improvement of picture quality espe-cially under low illuminance when compared to the existing multiple exposure HDR function.
Versatile interface
The IMX385LQR is equipped with two different types of output interface (low-voltage LVDS serial, MIPI CSI-2) to meet the diverse needs of customers. The low-voltage LVDS serial interface has a maximum output data rate of 445.5 Mbps/ch, and the number of output channels can be selected from 1 ch, 2 ch, or 4 ch. The MIPI CSI-2 interface has a maximum output data rate of 742.5 Mbps/lane, and the number of output lanes can be selected from 1 lane, 2 lanes, or 4 lanes.
FURTHER SPECIFICATIONS
DESCRIPTION
Sony Semiconductor Solutions Corporation has developed the CMOS image sensor “IMX385LQR” for industrial applications. This new image sensor realizes high sensitivity approximately twice that of the existing product (IMX185LQJ). The IMX385LQR pursues picture quality at low illuminance most needed by cameras for industrial applications and mounts pixels with a sensitivity of 2350 mV, which is the highest sensitivity among Sony image sensors for industrial applications. In addition, SNR1s of 0.13 lx, which is the highest performance among Sony Full HD-compatible image sensors for industrial applications, is achieved by mounting an internal programmable gain amplifier and high conversion gain pixels. Superior performance as an image sensor for industrial applications is further achieved by combining HDR (High Dynamic Range) technology with technology that improves sensitivity in the near-infrared light region.

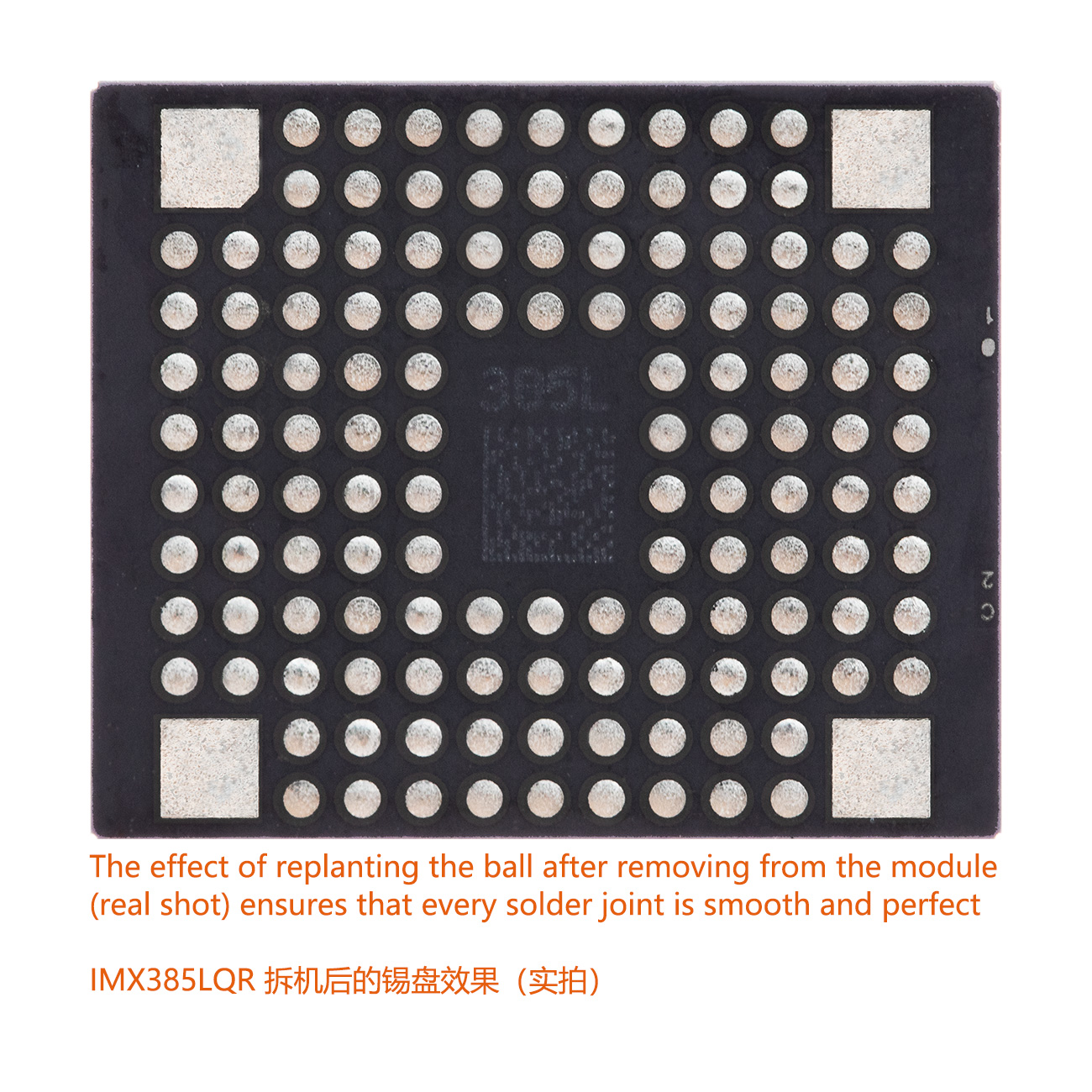

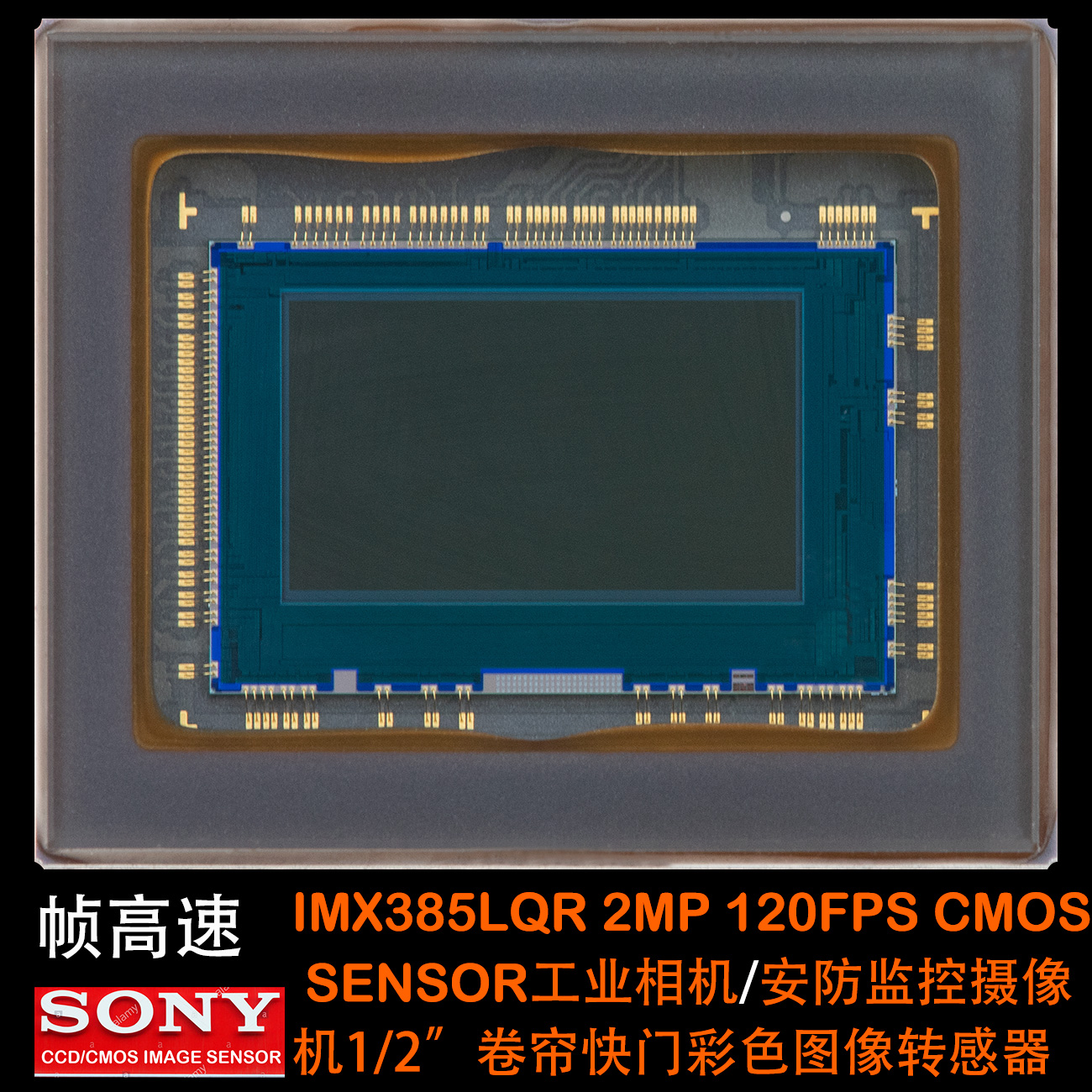

The IMX385LQR-C is a diagonal 8.35 mm (Type 1/2) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 3.3 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable
charge-integration time.
Applications: Surveillance cameras，Industrial camera
Features
◆ CMOS active pixel type dots
◆ Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆ Input frequency: 74.25 MHz / 37.125 MHz
◆ Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07 M pixels
◆ Readout mode
All-pixel scan mode / Window cropping mode
Vertical / Horizontal direction: normal / inverted readout mode
◆ Readout rate：Maximum frame rate in All-pixel scan mode: 120 frame / s
◆ Wide dynamic range (WDR) function Multiple exposure WDR：Digital overlap WDR
◆ Variable-speed shutter function (resolution 1H units)
◆ 10-bit / 12-bit A/D converter
◆ Conversion gain switching (HCG Mode / LCG Mode)
◆ CDS / PGA function
0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.1 dB)
30.1 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.1 to 42 dB (step pitch 0.1 dB)
◆ Supports I/O switching
Low voltage LVDS (150 mVp-p) serial (2 ch / 4 ch / 8 ch switching) DDR output
CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
◆ Recommended lens F number: 2.8 or more (Close side)
◆ Recommended exit pupil distance: –30 mm to –∞

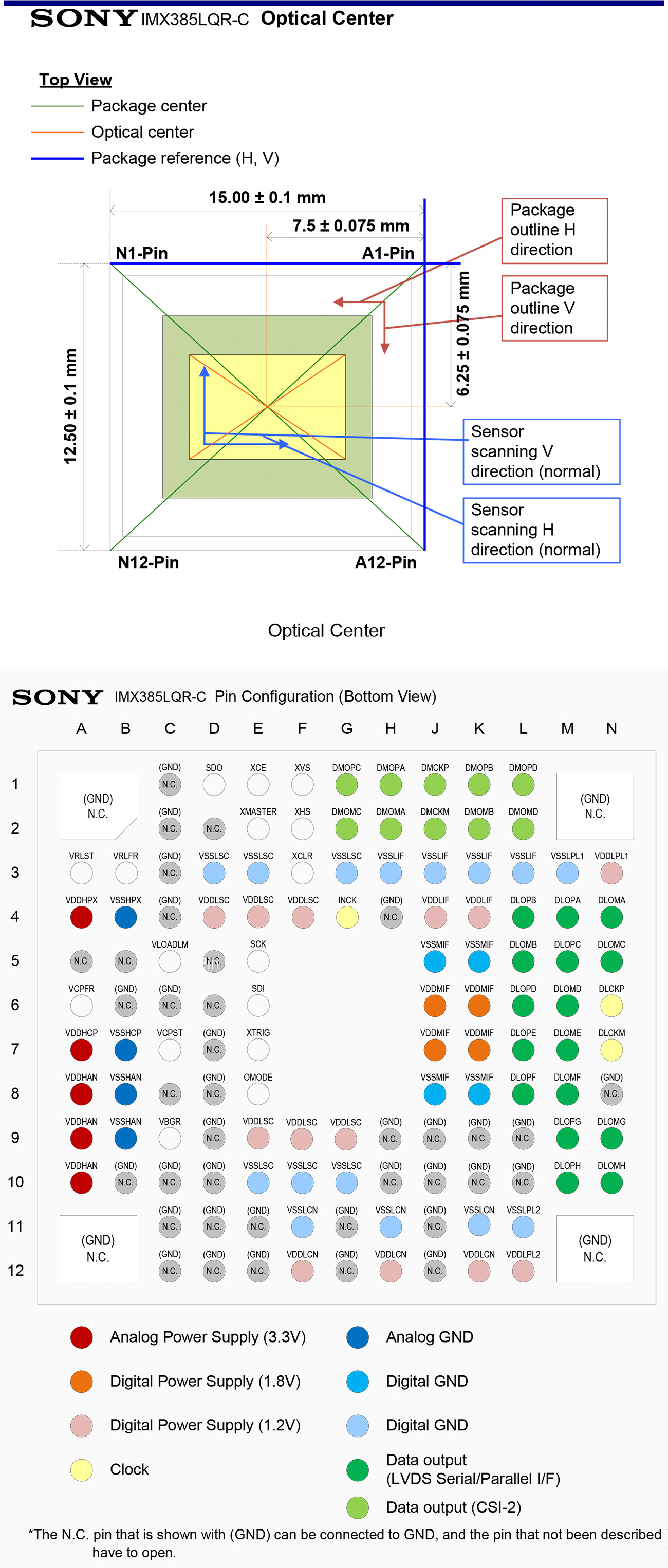

Device Structure
◆ CMOS image sensor
◆ Image size：Type 1/2
◆ Total number of pixels：1952 (H) × 1113 (V) approx. 2.17 M pixels
◆ Number of effective pixels：1945 (H) × 1097 (V) approx. 2.13 M pixels
◆ Number of active pixels：1937 (H) × 1097 (V) approx. 2.12 M pixels
◆ Number of recommended recording pixels ：1920 (H) × 1080 (V) approx. 2.07 M pixels
◆ Unit cell size：3.75 μm (H) × 3.75 μm (V)
◆ Optical black
Horizontal (H) direction: Front 4 pixels, rear 0 pixels
Vertical (V) direction : Front 16 pixels, rear 0 pixels
◆ Dummy
Horizontal (H) direction: Front 0 pixels, rear 3 pixels Vertical (V) direction : Front 0 pixels, rear 0 pixels
◆ Substrate material : Silicon
IMX385LQR主要参数
● 高宽比:16:9
● 位深:10
● 色彩学:颜色
● 帧率[fps]:120 fps
● 水平分辨率[px]:1920
● 垂直分辨率[px]:1080
● 接口:LVDS
● 制造商:索尼
● 封装:128引脚LGA(陶瓷)
● 像素尺寸x [μm]:3.75
● 像素尺寸y [μm]:3.75
● 产品类型:区域传感器
● 保护膜:有
● 分辨率[MP]:2.07 MP
● 传感器尺寸:1/2英寸
● 传感器技术:Exmor
● 传感器类型:CMOS
● 卷帘类型:卷帘
CMOS图像传感器的工业应用，实现高灵敏度近似是现有产品的两倍
索尼半导体解决方案公司开发了用于工业应用的CMOS图像传感器“IMX385LQR”。这种新的图像传感器实现了高灵敏度，大约是现有产品(IMX185LQJ)的两倍。
IMX385LQR追求工业应用中相机最需要的低亮度图像质量，安装像素灵敏度为2350 mV，这是工业应用中索尼图像传感器的最高灵敏度*2。此外，通过安装内部可编程增益放大器和高转换增益像素，实现了0.13 lx*3的snr1，这是索尼全hd兼容图像传感器中工业应用的最高性能。通过将HDR(高动态范围)技术与提高近红外光区灵敏度的技术相结合，进一步实现了作为工业应用图像传感器的卓越性能。
*1:详见2013年8月发布的新产品信息。
*2:截至2017年1月(基于内部调研)
*3:工业用图像传感器采用索尼公司倡导的低照度性能指标应用
压倒性的低照度性能
工业用相机需要在黑暗条件下也能产生高画质的彩色图像。2350 mV的高灵敏度特性，大约是现有的1/2型全高清产品(IMX185LQJ)的两倍，具有相同的3.75 μm像素尺寸，已通过安装一个新的像素，灵敏度最高的索尼图像传感器工业应用中。
此外，安装高转换率像素的snr1达到0.13 lx，这是索尼全hd兼容图像传感器中最高的性能，用于工业应用。
此外，结合提高近红外光区的灵敏度的技术，也提高了近红外光LED照明下的图像质量。
DOL-HDR函数
IMX385LQR支持DOL(数字重叠)类型的HDR功能。该函数采用了逐行输出不同存储时间的三帧数据的方法，而不是逐帧输出，与现有的多次曝光HDR功能相比，可以提高图像质量，特别是在低照度下。
通用的接口
IMX385LQR配备了两种不同类型的输出接口(低压LVDS串行，MIPI CSI-2)，以满足客户的多样化需求。低压LVDS系列接口的最大输出速率为445.5 Mbps/ch，输出通道数可从1、2、4通道中选择输出数据速率742.5 Mbps/lane，输出车道数可选择1车道、2车道或4车道
进一步规范
描述
索尼半导体解决方案公司开发了用于工业应用的CMOS图像传感器“IMX385LQR”。这种新的图像传感器实现了高灵敏度，大约是现有产品(IMX185LQJ)的两倍。IMX385LQR在工业应用的相机最需要的低照度下追求图像质量，并安装具有2350 mV灵敏度的像素，这是索尼工业应用图像传感器中灵敏度最高的。此外，通过安装内部可编程增益放大器和高转换增益像素，实现了0.13 lx的snr1，这是索尼全hd兼容图像传感器中工业应用的最高性能。通过将HDR(高动态范围)技术与提高近红外光区灵敏度的技术相结合，进一步实现了作为工业应用图像传感器的卓越性能。
IMX385LQR-C是一种对角线8.35 mm(1/2型)CMOS有源像素型固态图像传感器，具有方形像素阵列和2.13 M有效像素。该芯片采用模拟电源3.3 V，数字电源1.2 V，接口电源1.8 V三路供电，功耗低。采用R、G、B三原色马赛克滤光片，具有高灵敏度、低暗电流、无涂片效果。这种芯片的特点是具有可变的电子快门charge-integration时间。
应用
监控安防摄像头，工业相机
特性
◆ CMOS有源像素型点
◆ 内置定时调节电路、H/V驱动和串行通信电路
◆ 输入频率:74.25 MHz / 37.125 MHz
◆ 推荐记录像素数:1920 (H) × 1080 (V)左右。◆读取模式
全像素扫描模式/窗口裁剪模式
垂直/水平方向:正常/倒立读出模式
◆ 读出速率:全像素扫描模式下最大帧率:120帧/秒
◆ 宽动态范围(WDR)功能多重曝光WDR:数字重叠WDR
◆ 变速快门功能(分辨率1H)
◆10位/ 12位A/D转换器
◆ 转换增益开关(HCG模式/ LCG模式)
◆ CDS / PGA功能
0 dB到30 dB:模拟增益30 dB(步距0.1 dB)
30.1 dB至72 dB:模拟增益30db +数字增益0.1至42 dB(步距0.1 dB)
◆ 支持I/O切换
低电压LVDS (150mvp -p)串行(2路/ 4路/ 8路开关)DDR输出
CSI-2串行数据输出(2 Lane / 4 Lane, RAW10 / RAW12输出)
◆ 推荐镜头F号:2.8及以上(近侧)
◆ 推荐出瞳距离:- 30mm到-∞
设备结构
◆ CMOS图像传感器
◆ 图像大小:1/2型
◆ 总像素数:1952 (H) × 1113 (V)左右。2.17像素
◆ 有效像素数:约1945 (H) × 1097 (V)2.13像素
◆ 活动像素数:1937 (H) × 1097 (V)左右。2.12像素
◆ 推荐记录像素数:1920 (H) × 1080 (V)左右。2.07像素
◆ 晶胞尺寸:3.75 μm (H) × 3.75 μm (V)
◆ 光黑色
水平(H)方向:前面4像素，后面0像素
垂直(V)方向:前方16像素，后方0像素
◆ 虚拟
水平(H)方向:前0像素，后3像素垂直(V)方向:前0像素，后0像素
◆ 衬底材料:硅
有关IMX385的价格，datasheet download免费下载，简介，PDF文档下载，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书下载，代理商，技术支持，产品介绍，参数，方案，分销，经销，官网，生产厂家，批量采购，模组，模块，特价，库存，哪里买，性价比，用途，封装厂，晶圆，代工，可咨询本公司
满2件模组整出，全国包邮，如果你有货，可以卖给我，当我求购IMX385，你需要购买IMX385，可以找我买。
Freight is free when you buy 2 pieces in China, if you have IMX385 inventory, you can sell to me, if you need buy IMX385, you can ask me to buy.
如果想要了解此同类产品IMX226,IMX185或请点击下面链接，或访问本公司官网：sunnywale.com，搜索关键词“IMX226、IMX185”，即可展现更多详情。
更多详情和高清大图，请复制如下链接到浏览器打开，查看本公司官网；或者直接访问本公司官网：sunnywale.com，搜索关键词"IMX385"，即可查看:
For more details and HD images, please copy the following link to open in your browser to view our official website；or visit our official website: Sunnywale.com , searching keyword "IMX385".
================================================

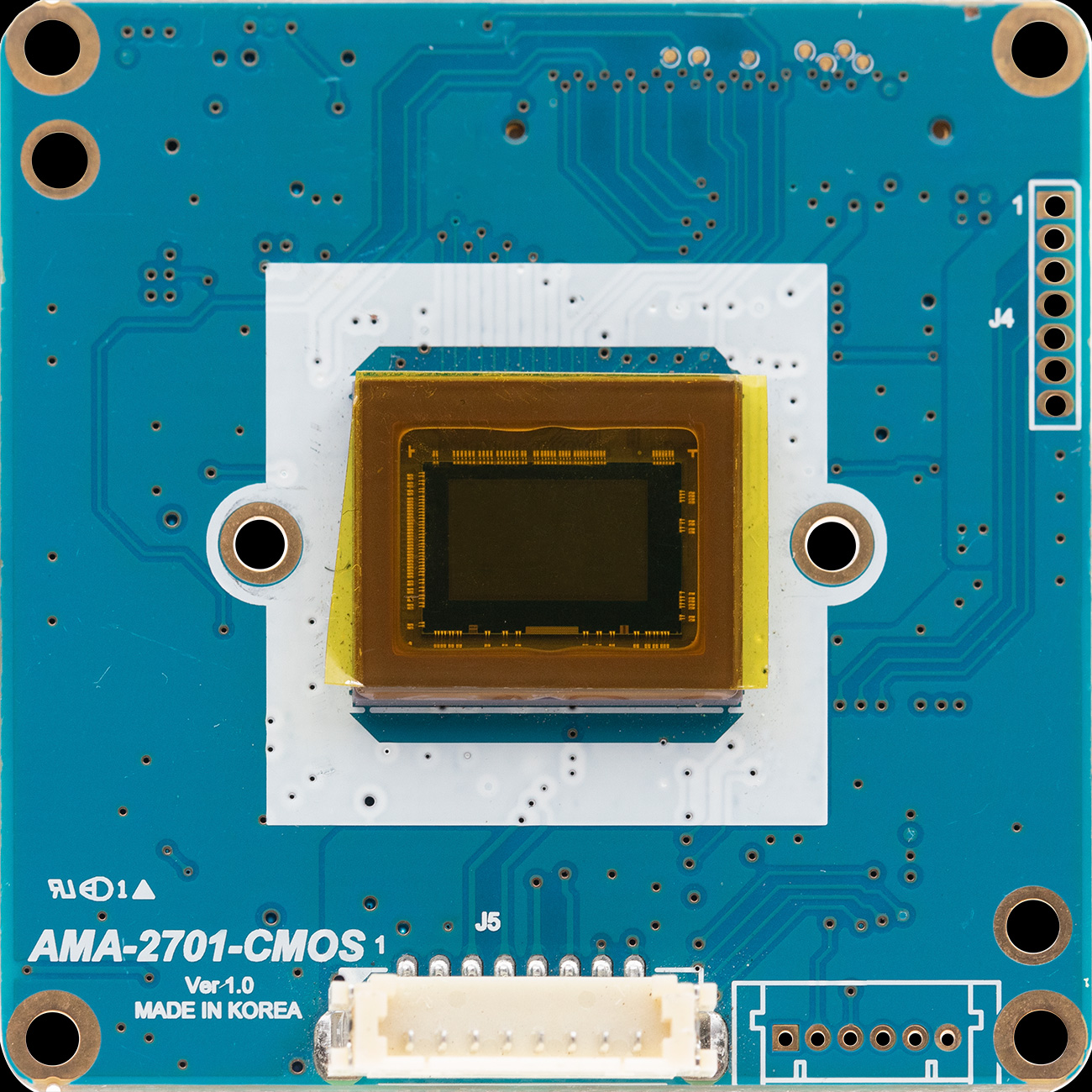

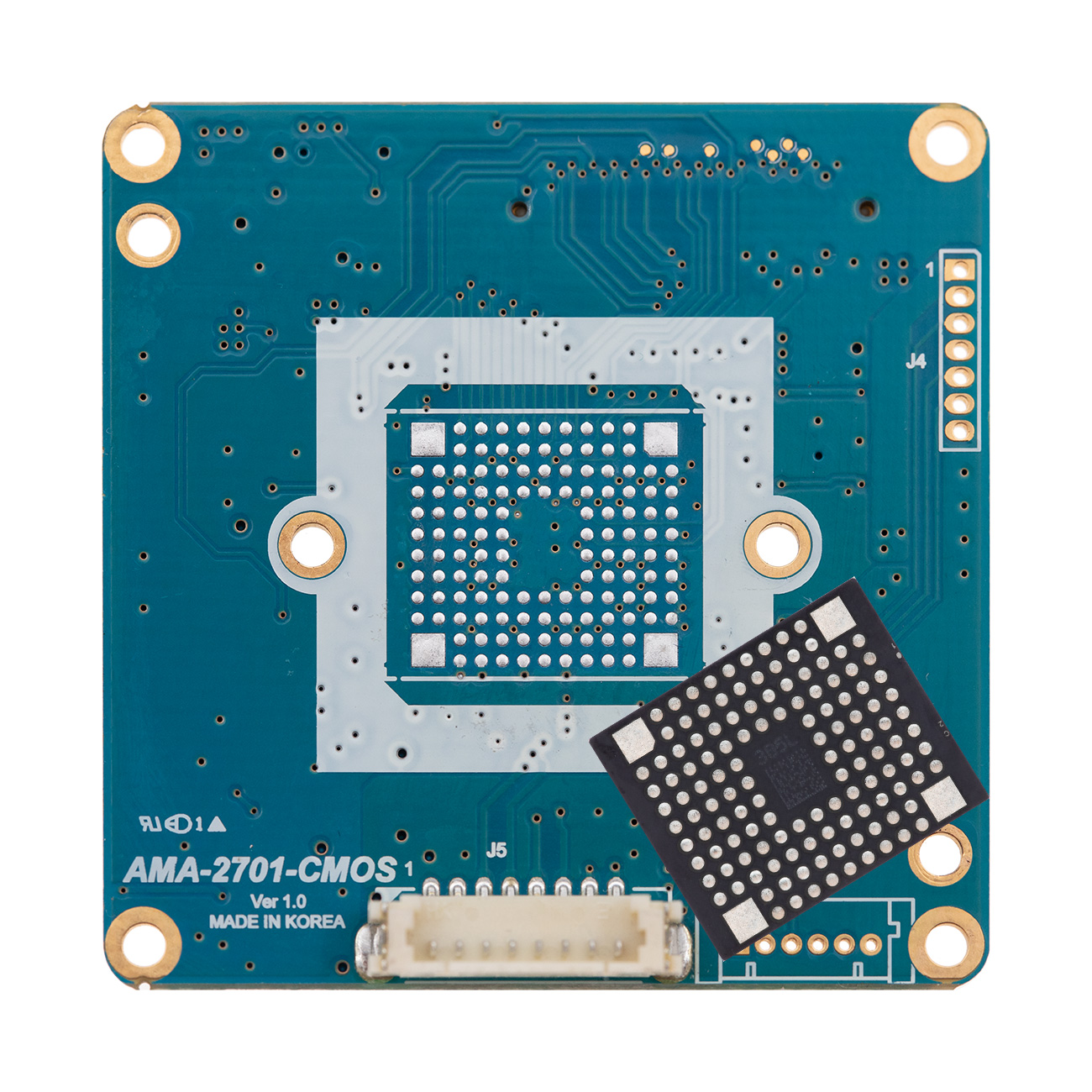

AMA-2701 Camera Module Description
2. IMX385 Features
-最高2兆像素(1090 x 1080)高清晰度。
- Full HD 1080p, 30fps影像传送。
- 42x42mm2块板组成
- Sony Exmor CMOS Image Sensor应用。
- 支持CVBS外部输出
- poe (ieee802.15.3 3at)支援
- SD存储器(最多128GB)存储功能支持(option)。
- 支援ONVIF 19.12
- 通过Web管理员或专用程序的简单的F/W updata。
2. Features
- Up to 2 megapixels (1090 x 1080) in high definition.
- Full HD 1080p, 30fps video transmission
-42mm Sized 2 Board type.
- Sony Exmor CMOS Image Sensor applications.
- Supports CVBS external output
- POE (IEEE802.15.33 3AT) supported
- SD memory (up to 128GB) Storage function supported (Option).
- Support ONVIF 19.12
- Simple F/W updata through Web administrators or dedicated programs.
- Motorized Focus Zoom Lens支持(option)
2. Features
- 최대 2메가 픽셀( 1090 x 1080 )고해상도
- Full HD 1080p, 30fps 영상 전송.
- 42 sized 2 Board type.
- Sony Exmor CMOS Image Sensor 적용.
- CVBS 외부 출력 지원.
- POE(IEEE802.3at) 지원.
- SD메모리(최대 128GB) 저장 기능 지원 (option).
- ONVIF 19.12지원.
- Web관리자 또는 전용프로그램을 통한 간편한 F/W updata.
- Motorized Focus Zoom Lens지원(option).
更多AMA-2701的详情，请点击下载详细的使用说明书,For more about AMA-2701's details, please click to download the detailed instruction manual
================================================

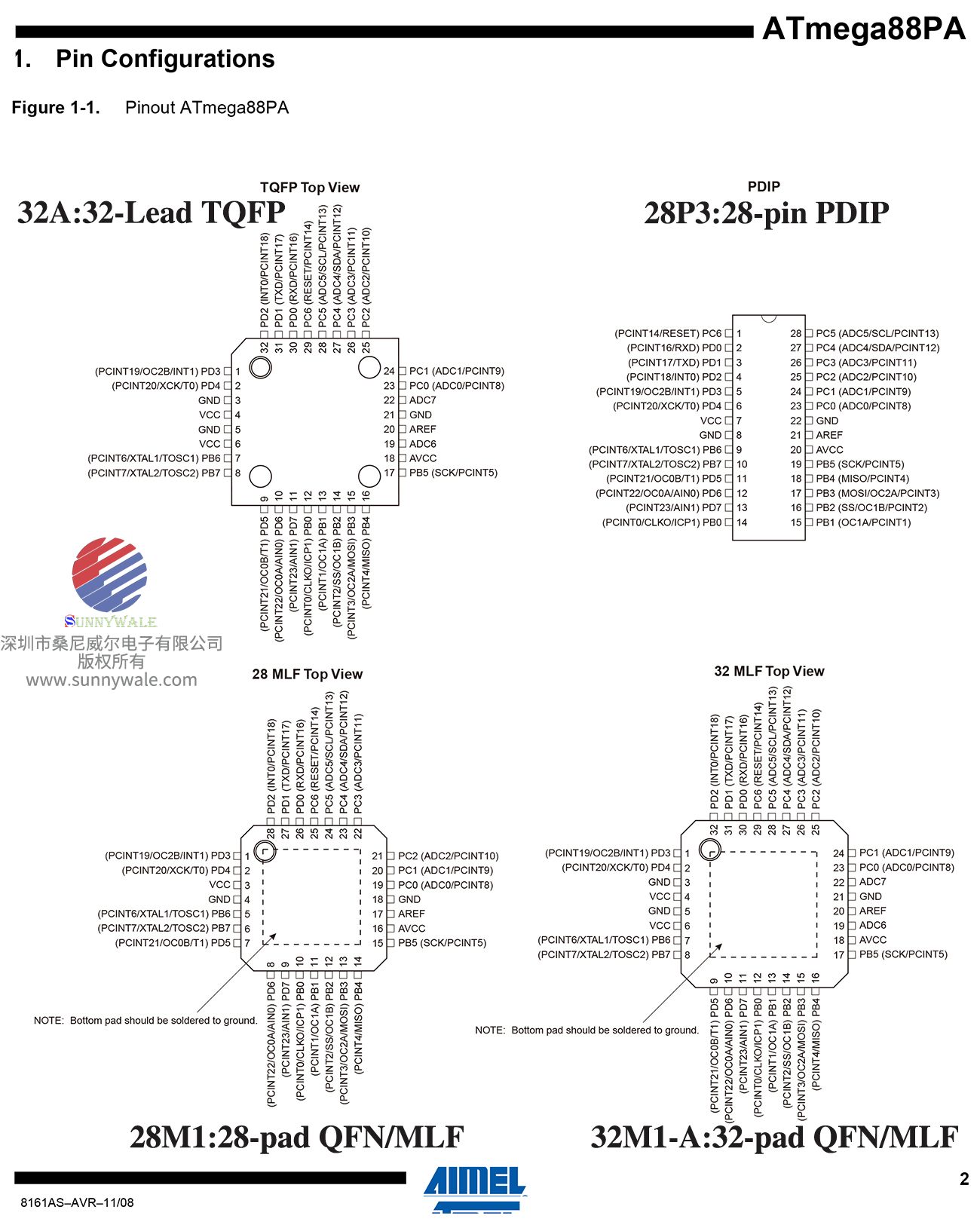

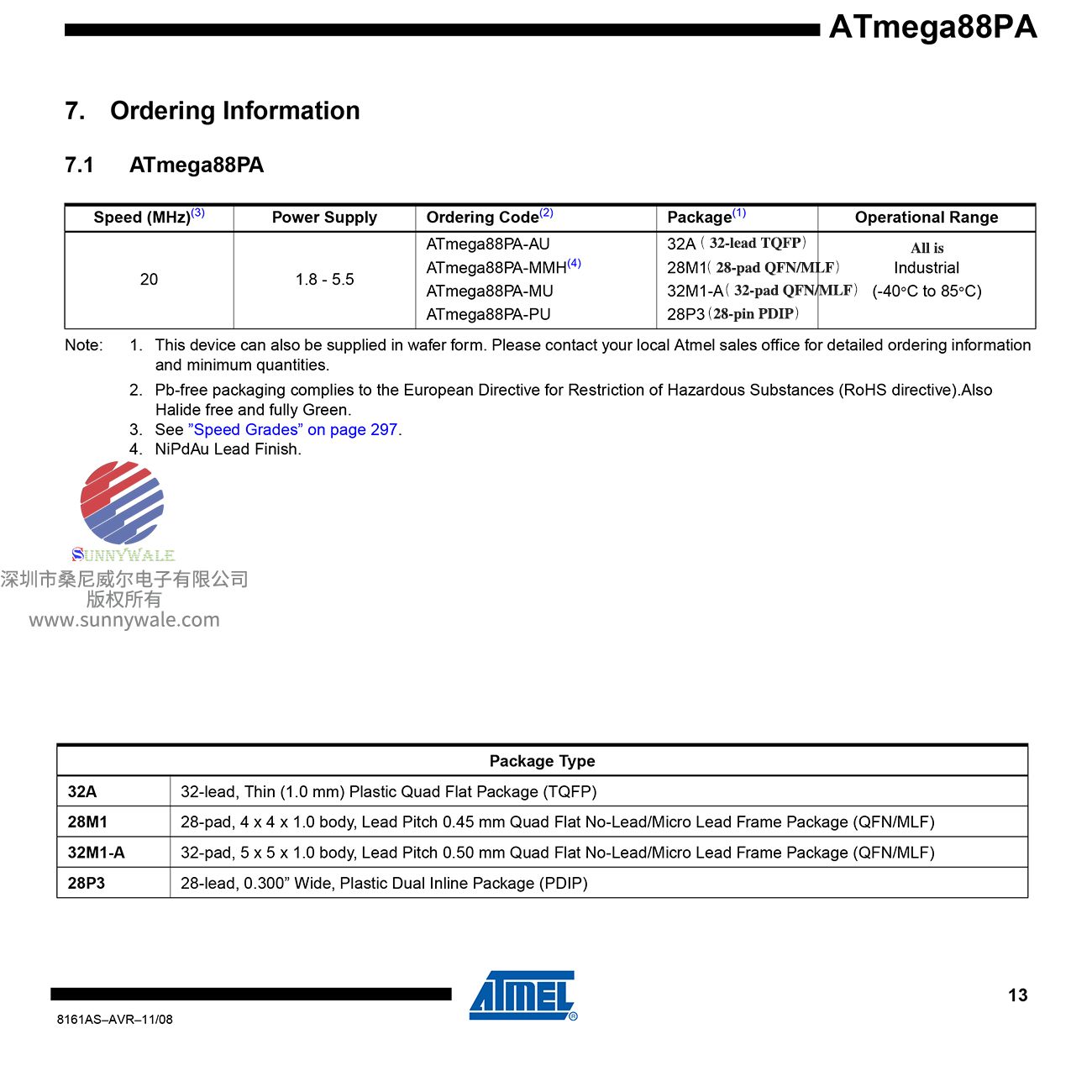

8-bit AVR Microcontroller with 8K Bytes In-SystemProgrammable Flash ATmega88PA Summary Rev. 8161AS–AVR–11/08 Datasheet download

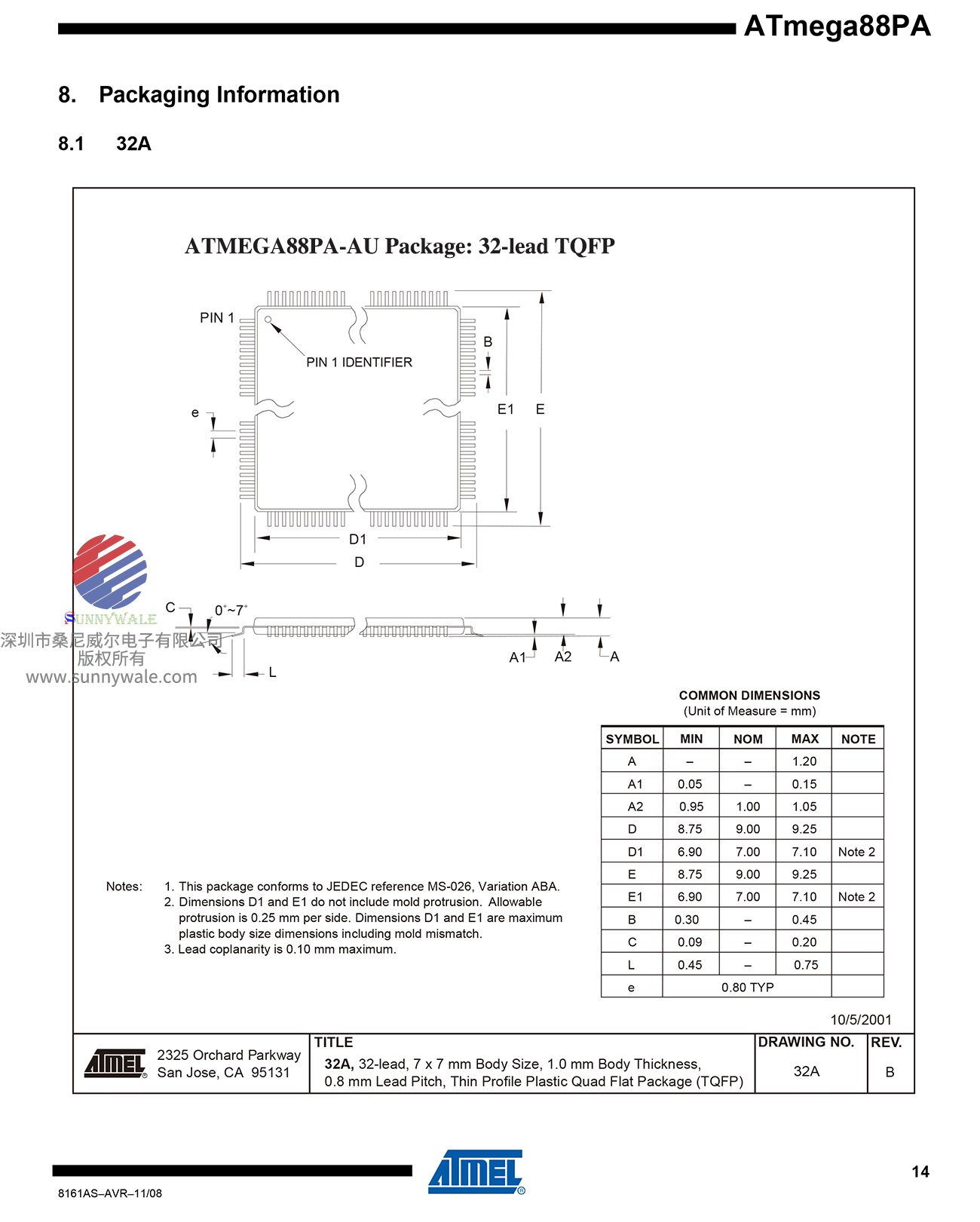

ATMEGA88PA-AU（TQFP32pin） ATMEL AVR 8比特微控制器
特性
● 高性能，低功耗AVR 8位微控制器
● 先进的RISC架构
- 131强大的指令-最单一的时钟周期执行
- 32 * 8通用用途工作登记册
- 完全静态操作
- 高达20 MIPS吞吐量在20 MHz
- 片上2周期倍增器
● 高耐久性非易失性内存段
- 8K字节系统内自编程Flash程序存储器(ATmega88PA)
- 512字节EEPROM (ATmega88PA)
- 1K字节的内部SRAM (ATmega88PA)
- 写/擦除周期:10,000 Flash/100,000 EEPROM
- 数据保存:85°C下20年/ 25°C下100年(1)
- 可选的带独立锁位的启动码段，通过片上启动程序的系统内编程实现真正的读写操作
- 软件安全编程锁
● 外围功能
- 两个8位定时器/计数器具有单独的预分器和比较模式
- 一个16位定时器/计数器，具有独立的预分器，比较模式和捕获模式
- 具有独立振荡器的实时计数器
- 6个PWM通道
- TQFP和QFN/MLF包中的8通道10位ADC
- 6通道10位ADC在PDIP封装温度测量
- 可编程串行USART
- 主/从SPI串行接口
- 面向字节的2线串口(兼容Philips I2C)
- 可编程看门狗定时器与单独的片上振荡器
- 片上模拟比较器
- 引脚更换时中断和唤醒
● 特殊的微控制器功能
- 开机复位和可编程褐变检测
- 内部校准振荡器
- 外部和内部中断源
- 六种休眠模式:空闲、ADC降噪、省电、下电、待机和延长待机
● I/O和封装
- 23条可编程I/O线
- 28脚PDIP, 32脚TQFP, 28脚QFN/MLF和32脚QFN/MLF
● 工作电压:1.8 - 5.5V ATmega88PA
● 温度范围:-40°C至85°C
● 速度等级:0 - 20 MHz @ 1.8 - 5.5V
● ATmega88PA在1 MHz, 1.8V, 25°C的低功耗:
- 主动模式:0.2 mA
- 下电模式:0.1 μA
- 省电模式:0.75 μA(含32 kHz RTC)
本公司有ATmega88PA-AU(TQFP32 pin)少量的带板或拆机现货出售
马上购买ATmega88PA-AU
如果你想了解同类产品IMX226,IMX178,IMX185,请点击相应的感应区链接了解详情
马上购买IMX385
