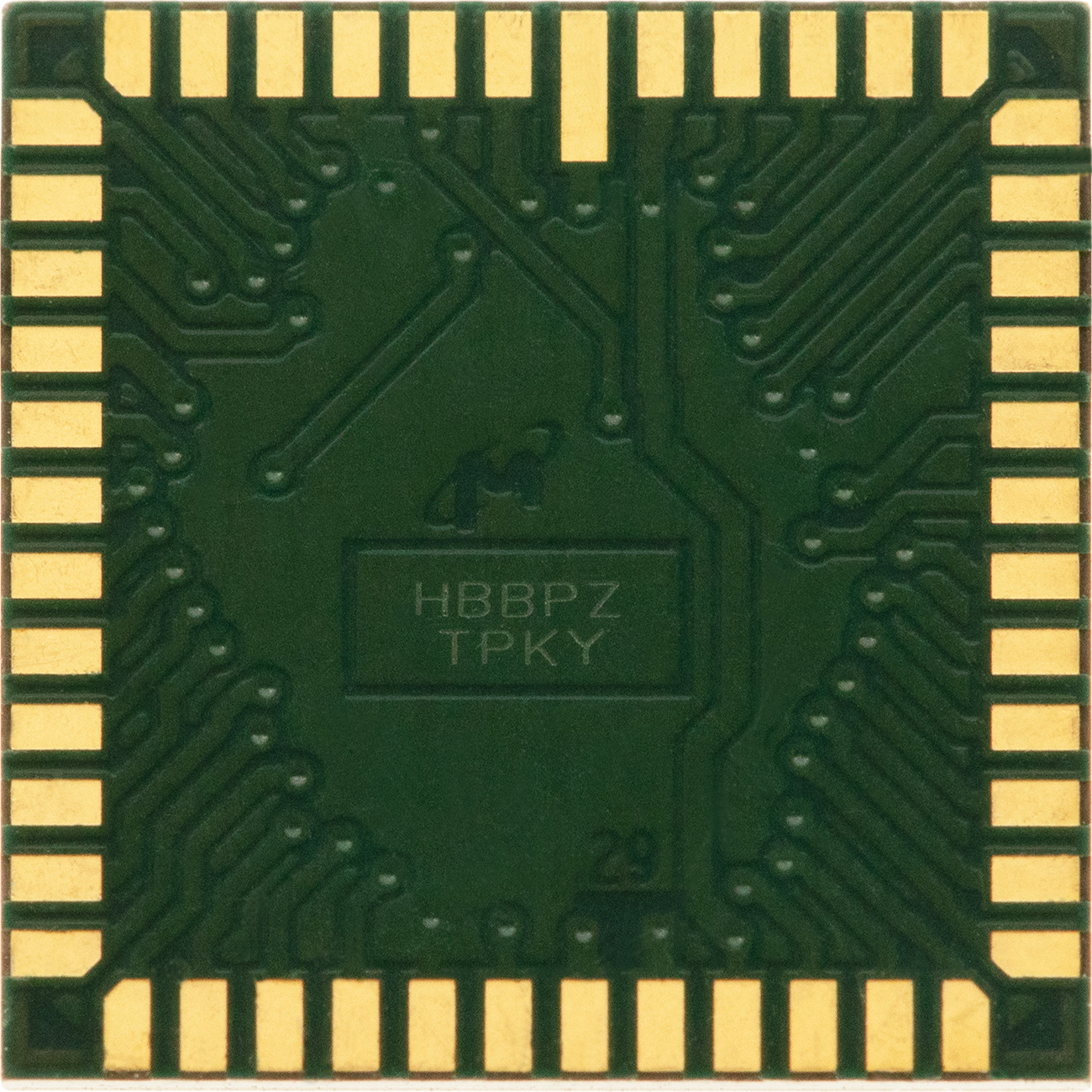

HBBPZ 5MP Monochrome (B/W) CMOS IMAGE SENSOR FOR Industrial camera
HBBPZ，黑白芯片，单色sensor,MICRON APTINA ONSEMI 5MP monothrome image sensor，1/2.5-INCH Monochrome sensor, b/w(_black/white) CMOS IMAGE SENSOR, FOR Industrial camera cmos sensor，镁光安森美5百万像素图像传感器，黑白单色图像传感器，工业相机cmos，汽车平衡仪检测设备摄像头cmos感光芯片。
Features
● DigitalClarity® imaging technology
● High frame rate
● Superior low-light performance
● Low dark current
● Global reset release, which starts the exposure of all rows simultaneously
● Bulb exposure mode, for arbitrary exposure times
● Snapshot mode to take frames on demand
● Horizontal and vertical mirror image
● Column and row skip modes to reduce image size without reducing field of view (FOV)
● Column and row binning modes to improve image quality when resizing
● Simple two-wire serial interface
● Programmable controls: gain, frame rate, frame size, exposure
● Automatic black level calibration
● On-chip PLL
Applications
● Industrial camera
● Car balance tester
● Digital still cameras
● Digital video cameras
● PC cameras
● Converged DSCs/camcorders
● Cellular phones
● PDAs
General Description
The Micron® Imaging HBBPZ is a 1/2.5-inch CMOS active-pixel digital image sensor with an active imaging pixel array of 2592H x 1944V. It incorporates sophisticated camera functions on-chip such as windowing, column and row skip mode, and snapshot mode. It is programmable through a simple two-wire serial interface.
The 5-megapixel CMOS image sensor features Digital-Clarity-Micron's breakthrough low-noise CMOS imaging technology that achieves CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
有关HBBPZ的价格，datasheet download免费下载，简介，PDF文档下载，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书下载，代理商，技术支持，产品介绍，参数，方案，分销，经销，官网，生产厂家，批量采购，模组，模块，特价，库存，哪里买，性价比，用途，封装厂，晶圆，代工，可咨询本公司
满2件全国包邮，如果你有货，可以卖给我，当我求购HBBPZ，你需要购买HBBPZ，可以找我买。
Freight is free when you buy 2 pieces in China, if you have HBBPZ inventory, you can sell to me, if you need buy HBBPZ, you can ask me to buy.
