AR0130CS ONSEMI安森美1/3‐inch 1.2 MP CMOS Digital Image Sensor for security camera, SONIX SN9C292Big USB 2.0 High-Speed (HS) compatible PC Camera controller,support VGA to 3MP cmos sensor,H.264
AR0130CS ONSEMI安森美1/3‐inch 1.2 MP CMOS Digital Image Sensor for security camera, SONIX SN9C292Big USB 2.0 High-Speed (HS) compatible PC Camera controller,support VGA to 3MP cmos sensor,H.264, built-in 3A (AE / AWB / AF)
Description
ON Semiconductor AR0130 is a 1/3?inch CMOS digital image sensor with an active?pixel array of 1280H x 960V. It captures images with a rolling?shutter readout. It includes sophisticated camera functions such as auto exposure control, windowing, and both video and single frame modes. It is programmable through a simple two?wire serial interface. The AR0130 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including gaming systems, surveillance, and HD video.
Package: PLCC48 11.43 11.43 CASE 776AL
Features
● Superior Low-light Performance Both in VGA Mode and HD Mode
● Excellent Near IR Performance
● HD Video (720p60)
● On-chip AE and Statistics Engine
● Auto Black Level Calibration
● Context Switching
● Progressive Scan
● Supports 2:1 Scaling
● Internal Master Clock Generated by
On-chip Phase Locked Loop (PLL)
Oscillator
● Parallel Output
Applications
● Gaming Systems
● Video Surveillance
● 720p60 Video Applications
GENERAL DESCRIPTION
The ON Semiconductor AR0130 can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a 960p resolution image at 45 frames per second (fps). It outputs 12-bit raw data over the parallel port. The device
may be operated in video (master) mode or in single frame trigger mode.
FRAME_VALID and LINE_VALID signals are output on dedicated pins, along with a synchronized pixel clock in parallel mode.
The AR0130 includes additional features to allow application-specific tuning: windowing and offset, adjustable auto-exposure control, and auto black level correction. Optional register information and histogram statistic information can be embedded in first and last 2 lines of the image frame.
FUNCTIONAL OVERVIEW
The AR0130 is a progressive-scan sensor that generates a stream of pixel data at a constant frame rate. It uses an on-chip, phase-locked loop (PLL) that can be optionally enabled to generate all internal clocks from a single master input clock running between 6 and 50 MHz The maximum output pixel rate is 74.25 Mp/s, corresponding to a clock rate of 74.25 MHz. Figure 1 shows a block diagram of the sensor.
AR0130CSSC00SPBA0-DP1： RGB Bayer 48-Pin PLCC Dry Pack with Protective Film
AR0130CSSC00SPBA0-DR1： RGB Bayer 48-Pin PLCC Dry Pack without Protective Film
AR0130CSSC00SPCA0-DPBR1： RGB Bayer 48-Pin iLCC Dry Pack with Protective Film, Double Side BBAR Glass
AR0130CSSC00SPCA0-DRBR1: RGB Bayer 48-Pin iLCC Dry Pack without Protective Film, Double Side BBAR Glass
AR0130CSSC00SPCAH-GEVB: RGB Bayer headboard iLCC
AR0130CSSC00SPCAH-S115-GEVB: RGB Bayer headboard iLCC
AR0130CSSC00SPCAH-S213A-GEVB: RGB Bayer headboard iLCC
AR0130CSSC00SPCAW-GEVB: RGB Bayer headboard iLCC
AR0130CSSM00SPCA0-DRBR1: Monochrome 48-Pin iLCC Dry Pack without Protective Film, Double Side BBAR Glass
AR0130CSSM00SPCAH-S213A-GEV: B Monochrome headboard iLCC
描述
ON Semiconductor AR0130是1/3英寸CMOS数字图像传感器，具有1280H x 960V像素阵列。它捕获的图像具有滚动快门读出。它包括复杂的相机功能，如自动曝光控制，窗口，视频和单帧模式。它是通过简单的两个?线串行接口。AR0130产生非常清晰、清晰的数字图像，其捕捉连续视频和单帧的能力使其成为广泛应用的完美选择，包括游戏系统、监控和高清视频。
封装:PLCC48 11.43 11.43 CASE 776AL
特性
●VGA模式和HD模式均具有优越的低光性能
●优异的近红外性能
●高清视频(720p60)
●片上AE和统计引擎
●自动黑电平校准
●上下文切换
●逐行扫描
●支持2:1缩放
●内部主时钟由芯片锁相环(PLL)振荡器
●并行输出
应用
●游戏系统
●视频监控
720p 60fps视频应用
一般的描述
ON半导体AR0130可以在其默认模式下操作，或为帧大小、曝光、增益和其他参数编程。默认模式输出的是960p分辨率、45帧每秒(fps)的图像。它通过并行端口输出12位原始数据。该设备 可在视频(主)模式或单帧触发模式下操作。
FRAME_VALID和LINE_VALID信号在专用的引脚上输出，同时以并行模式输出同步的像素时钟。
AR0130包括附加功能，以允许特定应用程序的调整:开窗和偏移，可调自动曝光控制，自动黑电平校正。可选的寄存器信息和直方图统计信息可以嵌入图像帧的前2行和后2行。
功能概述
AR0130是一种逐进扫描传感器，以恒定的帧率生成像素数据流。最大输出像素率为74.25 Mp/s，对应于74.25 MHz的时钟率。图1显示了传感器的框图。
--------------------------------------------------------------------------------

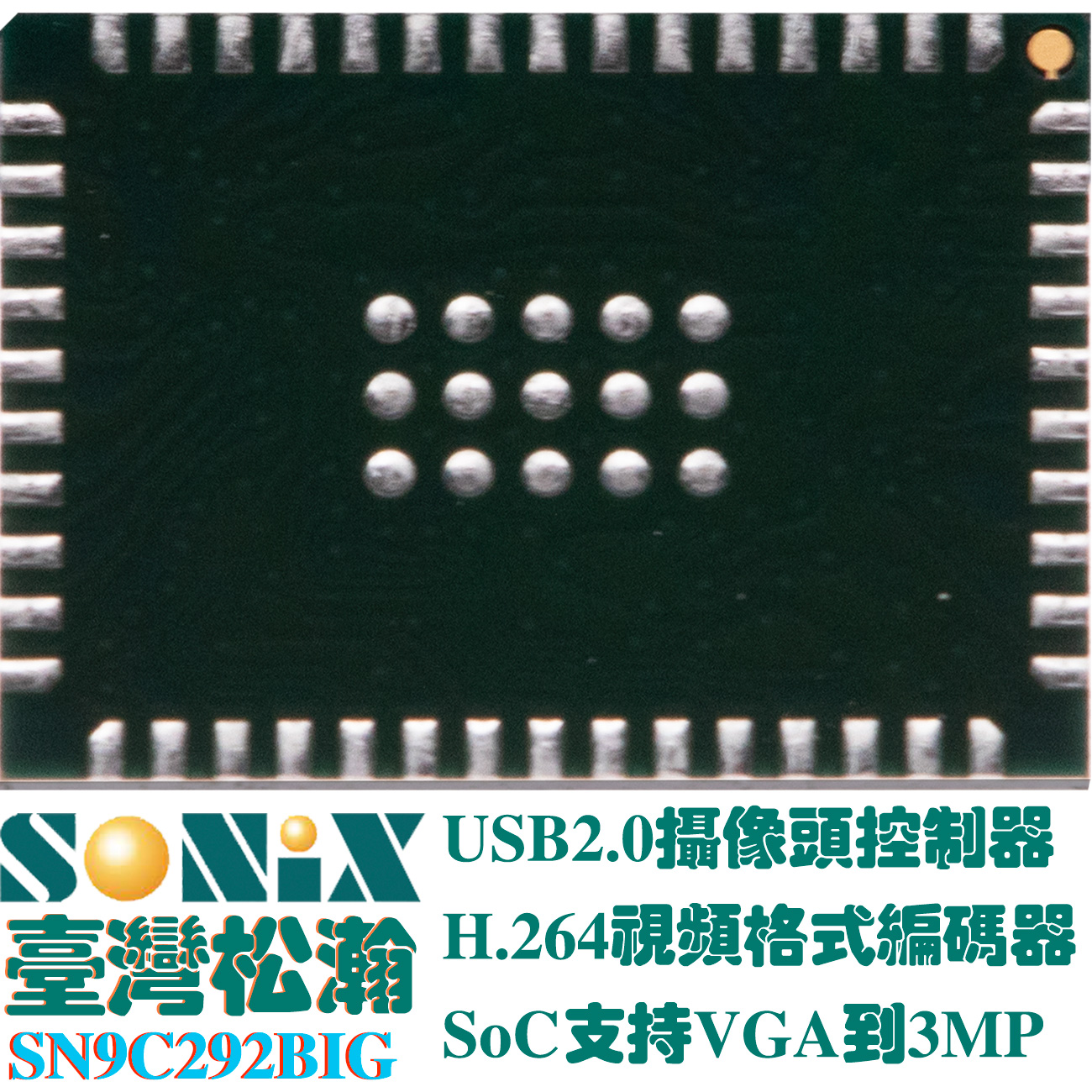

SN9C292BIG
1 General Description
SN9C292B is a USB 2.0 High-Speed (HS) compatible PC Camera controller. The superior image signal processing engine brings sight video experience. The high performance Motion-JPEG / h.264 compression engine makes variant compression ratio to satisfy bandwidth requirement.
SN9C292B is compliant with USB Video Class and Audio Class. With the integrated sensor interface and color processing engine, it can support most available CMOS sensors that range from VGA to 3MP.
SN9C292B is controlled by the embedded micro-controller, and the statistics for 3A (AE / AWB / AF) are built-in. The flexible architecture is consisted of mask ROM, internal RAM and external serial-flash which can store the customized codes and parameters. With the highly-integrated firmware architecture and the developing kit provided by SONiX, it’s easy for 3rd party to fulfill customized features.
2 Features
2.1 System
● 3.3V(analog, I/O), 1.8V(DDR) & 1.2V(core) external power supply are necessary
● Low power consumption of suspend, standby & preview mode
● Input oscillator frequency is 12MHz
● Built-in PLL for internal clock generation
● Using external serial flash to store customized code and data(default 128KBytes)
● Wide serial flash controller speed up to 60 MHz with phase detection
● External RAM is not needed
● 65-pin(use 1.8v LDO) LGA 7.0mmx5.0mm / 88-pin QFN(use 1.8v LDO) 10.0mmx10.0mm package
● Total 9 GPIOs (3 GPIOs are predefined for LED control, serial flash write protect, and sensor reset)
2.2 USB Controller
● USB 2.0 high-speed and full-speed compatible
● USB Video Class 1.1 / 1.5 compliant
● USB Audio Class 1.0 compliant
● USB2.0 HS/FS auto sense and switch
● USB FS mode and USB disconnection are programmable
● 6 endpoints: 1 CONTROL pipe, 2 Interrupt IN, 3 Isochronous-IN(MJPEG/YUY2, H.264 stream, Audio stream)
n 6 alternate settings for Video Streaming Interface
2.3 Sensor Interface
● Support QXGA(3MP, 2048x1536), FHD(1920x1080), UXGA(2MP,1600x1200), SXGA(1.3MP, 1280x1024), HD(1280x720), VGA (0.3MP, 640x480) CMOS ISP/Bayer RAW sensor
● Support YUY2 image data format from sensor (max 96M pixel / sec include dummy)
● Support RAW (Bayer-Pattern) image data format from sensor (max 96M pixel / sec include dummy)
● Support industrial standard 2-wire serial interface for sensor control
2.4 Color Processing
● AE histogram statistics
● AWB window statistics
● AF edge window statistics
● On-the fly defect-pixel cancellation
● Mesh lens shading compensation for R/G/B channel separately.
● Color interpolation with low pass filter (less false color)
● Individual digital color gain control for R/Gr/Gb/B channels
● Individual digital color gain control for Y/Cb/Cr channels
● Pixel offset (optical black) compensation for R/Gr/Gb/B channels
● Programmable gamma table for RGB channels
● Programmable color conversion matrix for R/G/B input
● Configurable noise reduction
● De-color aliasing in edge
● Configurable edge enhancement
● Programmable gamma table for Y channel
● Configurable windowing function after processed image
● Programmable hue and saturation
2.5 Scaling Engine
● Fine scalar for maximum 1/256 down-scaling and x4 up-scaling
● For QXGA / UXGA / 1080P / 720P sensors, combined scaling and windowing function provides similar view angle for 1080P / SXGA / 720P / SVGA / VGA / QVGA / QQVGA output format
● The scaling & frame rate adjusting engine are separately controlled for YUV/MJPG and H.264 video streams
2.6 JPEG Encoder
● Built-in JPEG encoder to support USB Video Class MJPEG payload
● JPEG format is YUV420 / YUV422 baseline
● Programmable 128 bytes quantization table for Y and C to adjust compression ratio
2.7 H.264 Encoder
● Profile: Main profile, Level: 4.1
● Built-in H.264 encoder support USB Video Class MPEG2-TS
● Built-in H.264 encoder support USB Video Class Skype-TS
● Built-in H.264 encoder support USB Video Class Microsoft UVC V1.5 driver
● Support UVC 1.1
● Adjustable QP for Y and C to provide programmable compression ratio
● Support multiple stream (with SONiX proprietary driver)
● I & P picture types
● CAVLC/CABAC entropy
● Fully support 4x4 (9 modes) and 16x16 (4 modes) Intra prediction modes
● Fully support 16x16, 16x8, 8x16, 8x8, 8x4, 4x8 and 4x4 Inter prediction modes
● Hadamard SAD (SATD) for Quarter-Pixel Motion Estimation
2.8 Video / Still Image
● Output video / still image format:
⊕ USB Video Class Uncompressed YUY2 payload (16bits/pixel)
⊕ USB Video Class MJPEG payload
⊕ USB Video Class H.264 payload
⊕ USB Video Class MPEG2-TS payload
⊕ Skype-TS payload
● Still Image capture up to UXGA and is able to support UVC still image capture method 1/2
SN9C292BIG
1一般描述
SN9C292B是一个USB 2.0高速(HS)兼容的PC摄像头控制器。优越的图像信号处理引擎带来视觉视频体验。高性能的Motion-JPEG / h.264压缩引擎使不同的压缩比满足带宽要求。
SN9C292B兼容USB视频类和音频类。通过集成传感器接口和颜色处理引擎，它可以支持从VGA到3MP的大多数CMOS传感器。
SN9C292B由嵌入式微控制器控制，内置3A (AE / AWB / AF)统计。其灵活的结构由掩模ROM、内部RAM和外部串行闪存组成，可存储定制代码和参数。通过 SONiX提供的高度集成的固件架构和开发工具包，第三方很容易实现定制的功能。
2功能
2.1系统
● 需要3.3V(模拟，I/O)， 1.8V(DDR)和1.2V(核心)外置电源
● 挂起、待机、预览模式功耗低
● 输入振荡器频率为12MHz
● 内置锁相环，用于内部时钟产生
● 使用外部串行flash存储定制代码和数据(默认128KBytes)
● 宽串行flash控制器，速度可达60 MHz，具有相位检测功能
● 不需要外部RAM
● 65针(使用1.8v LDO) LGA 7.0mmx5.0mm / 88针QFN(使用1.8v LDO) 10.0mmx10.0mm封装
● 共9个gpio接口(3个gpio接口可用于LED控制、串行flash写入保护和传感器复位)
2.2通用串行总线控制器
● USB 2.0高速和全速兼容
● USB视频类1.1 / 1.5兼容
● USB音频类1.0兼容
● USB2.0 HS/FS自动检测和开关
● USB FS模式和USB断开可编程
● 6个端点:1个控制管道，2个中断IN, 3个等时-IN(MJPEG/YUY2, H.264流，音频流)
● 6可选的视频流接口设置
2.3传感器接口
● 支持QXGA(3MP, 2048x1536)， FHD(1920x1080)， UXGA(2MP,1600x1200)， SXGA(1.3MP, 1280x1024)， HD(1280x720)， VGA (0.3MP, 640x480) CMOS ISP/拜耳RAW传感器
● 支持YUY2图像数据格式的传感器(最大96M像素/秒包括虚拟)
● 支持来自传感器的RAW(拜耳模式)图像数据格式(最大96M像素/秒包括虚拟)
● 支持工业标准2线串行接口，用于传感器控制
2.4颜色处理
● AE直方图统计
● AWB窗口统计
● AF边缘窗口统计
● 动态缺陷-像素消除
● R/G/B通道网格镜片遮光补偿。
● 颜色插值低通滤波器(少假色)
● 独立数字颜色增益控制，适用于R/Gr/Gb/B通道
● Y/Cb/Cr通道独立数字颜色增益控制
● R/Gr/Gb/B通道像素偏移(光学黑)补偿
● 可编程的伽玛表RGB通道
● 可编程颜色转换矩阵，用于R/G/B输入
● 可配置降噪
● 消除边缘颜色走样
● 可配置边缘增强
● 可编程的Y通道伽玛表
● 图像处理后可配置开窗功能
● 可编程色调和饱和度
2.5扩展引擎
● 精细标量最大1/256向下缩放和x4向上缩放
● 对于QXGA / UXGA / 1080P / 720P传感器，结合缩放和窗口功能，为1080P / SXGA / 720P / SVGA / VGA / QVGA / QQVGA输出格式提供类似的视角
● 缩放和帧率调整引擎分别控制YUV/MJPG和H.264视频流
2.6 JPEG编码器
● 内置JPEG编码器，支持USB视频类MJPEG有效载荷
● JPEG格式为YUV420 / YUV422基线
● 可编程的128字节量化表，用于Y和C调整压缩比
2.7 h .编码器
● 简介:主简介，等级:4.1
● 内置H.264编码器，支持USB视频类MPEG2-TS
● 内置H.264编码器，支持USB视频类Skype-TS
● 内置H.264编码器，支持USB视频类Microsoft UVC V1.5驱动程序
● 支持UVC 1.1
● Y和C可调QP，提供可编程的压缩比
● 支持多流(配合SONiX专有驱动)
● I & P图片类型
● CAVLC / CABAC熵
● 完全支持4x4(9种模式)和16x16(4种模式)内部预测模式
● 完全支持16x16, 16x8, 8x16, 8x8, 8x4, 4x8和4x4 Inter预测模式
● 四分之一像素运动估计的Hadamard SAD (SATD)
2.8视频/静止图像
● 输出视频/静止图像格式:
⊕USB Video Class未压缩YUY2有效载荷(16位/像素)
⊕USB视频类MJPEG有效载荷
⊕USB视频类H.264有效载荷
⊕USB视频类MPEG2-TS有效载荷
⊕Skype-TS载荷
● 静态图像捕获达到UXGA，并能支持UVC静态图像捕获方法1/2

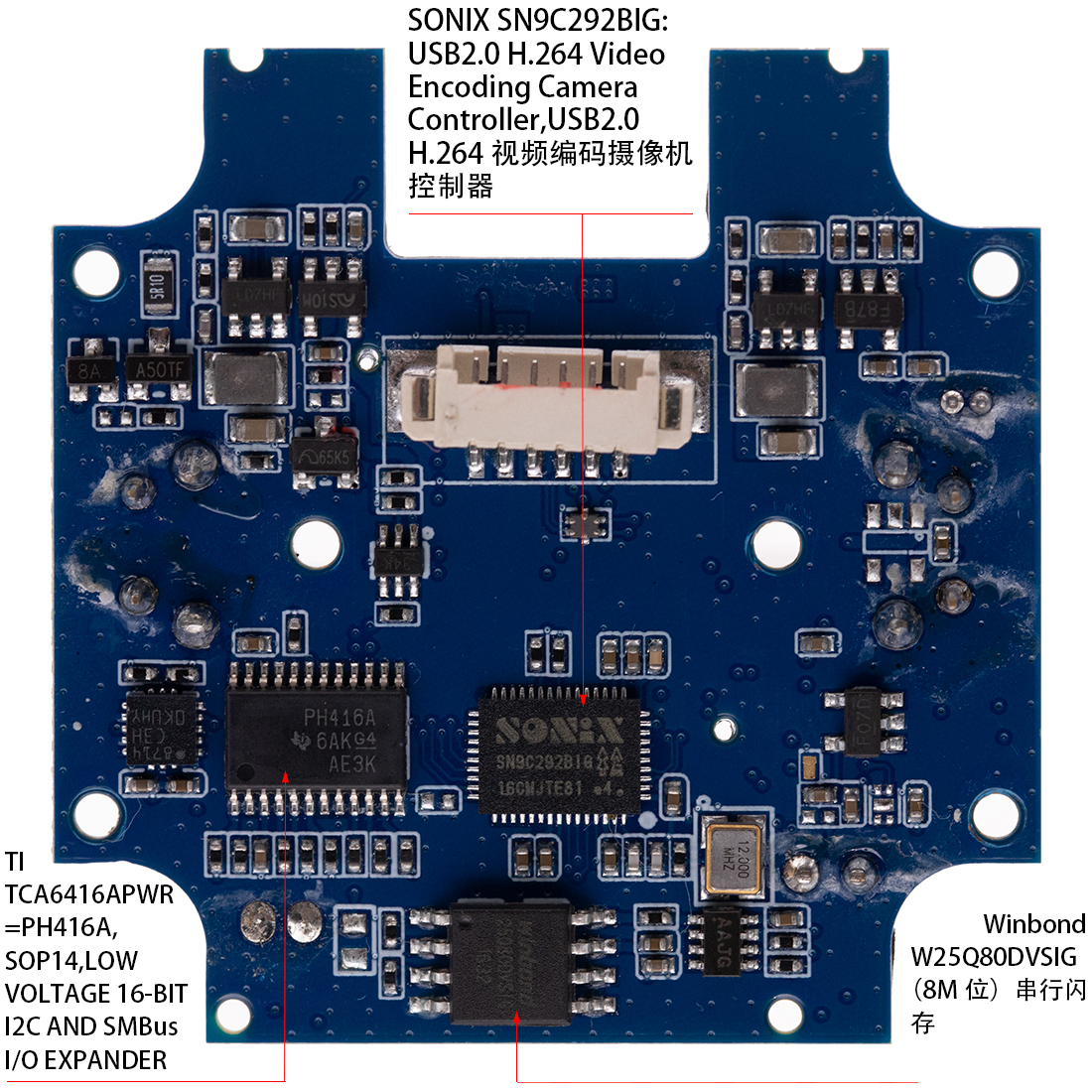

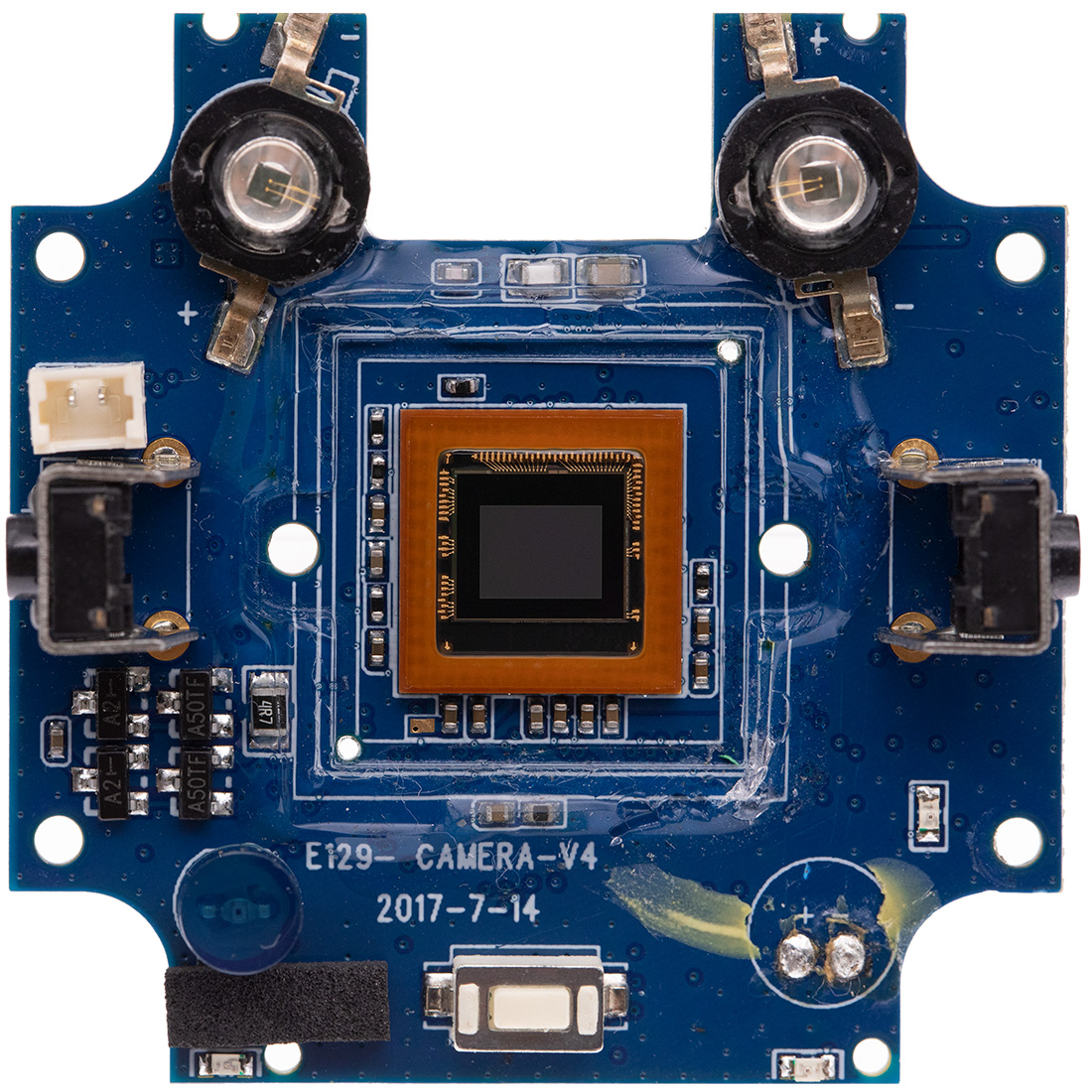

板载零件表：
TI TCA6416APWR=PH416A,SOP14,LOW-VOLTAGE 16-BIT I2C AND SMBus I/O EXPANDER, WITH INTERRUPT OUTPUT, RESET,AND CONFIGURATION REGISTERS,低电压16位I2C和SMBus I/O扩展器，带有中断输出，复位和配置寄存器
SONIX SN9C292BIG:USB2.0 H.264 Video Encoding Camera Controller,USB2.0 H.264视频编码摄像机控制器
Winbond W25Q80DVSIG（8M位）串行闪存
AR0130CSSC00SPBA0-DR，1.2 MP 1/3" CIS Dry Pack without Protective Film，
