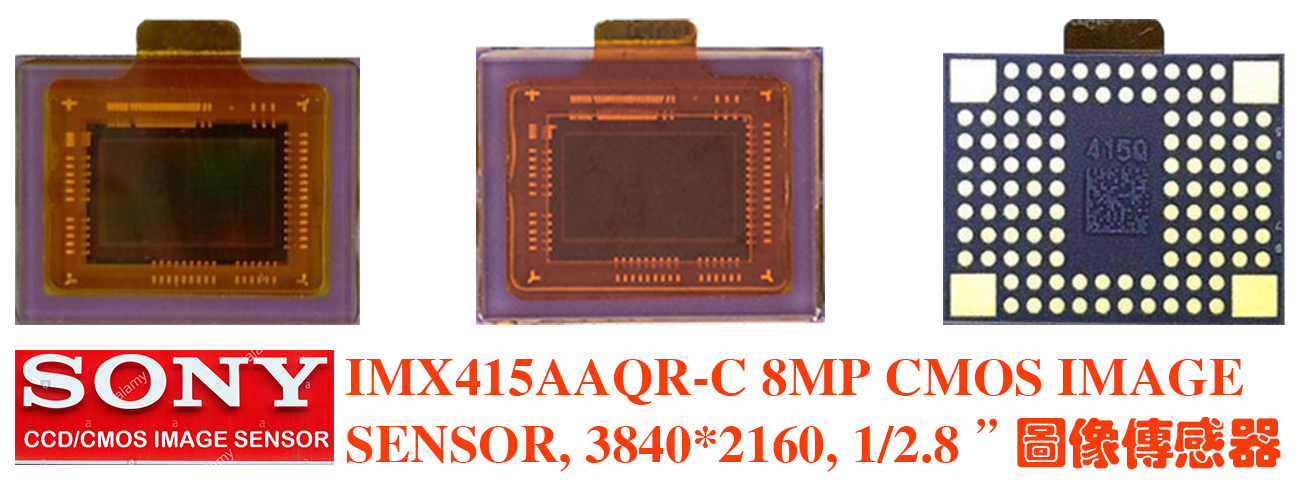

索尼SONY IMX415 4K CMOS SENSOR图像影像传感器1/2.8英寸星光级COMS，3840*2160，8.29M像素，12位：60帧/秒 高动态范围（HDR）功能多重曝光HDR 应用于安防监视摄像
索尼SONY IMX415， 4K CMOS SENSOR，图像影像传感器1/2.8英寸，星光级COMS，3840*2160，8.29M像素，12位：60帧/秒， 高动态范围（HDR），多重曝光HDR，
应用于安防监视摄像机，FA相机，工业相机，Survillance相机
Sony to Release Two Types of 4K-Resolution CMOS Image Sensors for Security Cameras: World's Smallest※1 type 1/2.8 and Enhanced Low-Light Performance TypeEnabling High Level of Image Recognition and Detection Performance for Improved Safety for Smart City, Surveillance, and Traffic Monitoring Systems
2019.06.27，Tokyo, Japan-Sony Corporation today announced the upcoming release of two new models of CMOS image sensors: the IMX415 type 1/2.8 4K-resolution stacked CMOS image sensor, which is the smallest of its kind in the world※1; and the IMX485 type 1/1.2 4K-resolution back-illuminated CMOS image sensor, which delivers outstanding low-light performance approximately 3.3 times that of conventional.※2 Sony has designed these two new sensors for security cameras for the growing smart city market and to meet the rapidly expanding need for security cameras in a variety of monitoring applications such as anti-theft, disaster alert, and traffic monitoring systems or commercial complexes.
There is an increasing demand for security cameras for use in a variety of places, and with that comes greater demand than ever for compact cameras that can be installed just about anywhere and have a higher level of image recognition and detection performance. Going forward, significant growth is also expected in demand for cameras for image recognition in anomaly detection and behavioral analysis using AI.
Addressing this need, Sony offers a lineup of compact 4K-resolution CMOS image sensors that deliver superior image recognition and detection performance and excellent low-light performance at the same time—which had been difficult to achieve with conventional technologies. The expanded sensor lineup makes it possible to obtain high-quality images for various scenes, thereby expanding the range of applications for security cameras.
※1: Among 4K-resolution CMOS image sensors for security camera applications
※2: Compared to Sony's IMX334, type 1/1.8, 8.42M effective pixels CMOS image sensor
4K-resolution CMOS image sensors for security camera applications
4K-resolution CMOS image sensors for security camera applications
Left:IMX415 Right: IMX485
Model name Sample shipment date Sample price (excluding tax)
IMX415 type 1/2.8 (diagonal 6.43mm) 8.46M
effective pixels※3 stacked CMOS image sensor April 2019 2,500 JPY
IMX485 type 1/1.2 (diagonal 12.86mm) 8.42M
effective pixels※3 back-illuminated CMOS image sensor July 2019 10,000 JPY
※3: Based on image sensor effective pixel specification method
In general, as pixel miniaturization progresses, the light collection efficiency per pixel deteriorates and sensitivity decreases. Sony's newly developed IMX415 stacked CMOS image sensor employs proprietary high-sensitivity, low-noise technology to miniaturize the pixel size to 1.45 square μm, which is approximately 80% smaller than conventional.※4 The result is the world’s smallest※1 type 1/2.8 4K-resolution stacked CMOS image sensor yet with superior low-light performance.
Sony is also releasing the IMX485, a back-illuminated CMOS image sensor with even better low-light performance. By employing the latest pixel technology for low-noise capabilities, this sensor achieves an outstanding low-light performance 3.3 times higher than conventional※2 for a 4K-resolution sensor. This enables superior image recognition and detection performance even in dark environments, making it an optimal solution for high-end 4K security cameras.
Sony expects that these newly developed CMOS image sensors will be used for a variety of applications, and that this, in turn, will promote the adoption of 4K security cameras, thereby contributing to the expansion of the market.
※4: Compared to Sony's IMX274 type1/2.5, 8.51M effective pixels CMOS image sensor.
Main Features
IMX415: World's smallest※1 type 1/2.8 4K-resolution stacked CMOS image sensor for security cameras
Sony developed this type 1/2.8 4K-resolution CMOS image sensor, the smallest of its kind in the world,※1 for security camera applications. It employs proprietary high-sensitivity, low-noise technology to miniaturize the pixel size to 1.45 square μm, approximately 80% smaller than conventional.※4 This makes for a compact 1/2.8 sensor size, while still achieving superior low-light performance 1.5 times better than that of conventional CMOS image sensors.※4 In addition, by employing a stacked structure with a low-noise circuit, Sony has made it possible to capture clear images even in dark scenes. The 1/2.8 sensors are in high demand for security cameras since they are compact and can fit just about anywhere.
IMX415 image(Left) Conventional (IMX274) image(Right)
IMX485: type 1/1.2 4K-resolution back-illuminated CMOS image sensor that delivers an outstanding low-light performance
Sony developed the IMX485 type 1/1.2 4K-resolution CMOS image sensor which delivers outstanding low-light performance. With its ample 2.9 square μm pixel size, 2.1 times larger than conventional,※2 coupled with the latest pixel technology for low-noise capabilities, the new sensor dramatically improves the low-light performance to 3.3 times that of conventional CMOS image sensors for security cameras.※2 This makes it possible to accurately detect and capture objects even in dark scenes. Sony proposes this new 1/1.2 image sensor format for high-end 4K security cameras.
索尼将推出两款应用于安防摄像机的4K CMOS影像传感器：1/2.8英寸大小刷新世界纪录 低光下表现增强
为智能城市、监控和交通监测系统提供高水平的图像识别和检测性能，以提高…
2019.06.27，日本，东京-索尼公司（下称索尼）宣布即将发布两款新型CMOS影像传感器：IMX415，1/2.8 英寸堆叠式4K CMOS影像传感器，刷新全球同类产品的小尺寸纪录；IMX485，1/1.2英寸背照式4K CMOS影像传感器，低光性能优异，约为前代产品3.3倍。*1 针对日益扩大的智慧城市相关的市场需求，索尼特别开发了这两款新型的应用于安防摄像机的传感器，以满足安防摄像机在防盗、灾难警报、交通监测系统或商业综合体等多种监控应用领域的快速增长需求。
目前，在各种场合安装安防摄像机的需求正日益增多，而对于可以安装在任何地方、具有更高图像识别和检测性能的紧凑型安防摄像机的需求也比以往任何时候都要大。未来，用于异常检测和人工智能行为分析的图像识别摄像机的需求也将显著增长。
为了满足这一需求，索尼推出了一系列紧凑型4K CMOS影像传感器，能够同时提供卓越的图像识别和检测性能，以及出色的低光性能表现--这是传统技术难以实现的。索尼丰富的传感器产品线，让人们在多种场景下都能获取高质量图像，从而扩大了安防摄像机的应用范围。
*1 与索尼IMX334影像传感器（1/1.8英寸，有效像素842万）相比较
应用于安防摄像机的4K CMOS影像传感器
左侧:IMX415 右侧: IMX485
产品型号
样品发货时间
样品价格（税后）
IMX415 1/2.8英寸（对角线6.43mm）有效像素846万*2，堆叠式影像传感器,2019年4月，2,500日元
IMX485 1/1.2英寸（对角线12.86mm）有效像素842万*2，背光式影像传感器，2019年7月，10,000日元
*2 基于图像传感器的有效像素计算方法
一般来说，像素越小，单个像素的光采集率、灵敏度就越低。索尼的新开发的IMX415堆叠式CMOS影像传感器采用了索尼独有的高灵敏度，低噪点技术，将像素尺寸缩至1.45平方微米,比前代产品*3缩小约80%，缔造出破纪录的 1/2.8英寸堆叠式4K CMOS影像传感器，并具备卓越的低光性能。
索尼还推出了背照式CMOS影像传感器IMX485，它具有更加卓越的低光性能。这款传感器采用最先进的像素技术，能够很好地降低噪点，其低光性能比前代产品*1的4K影像传感器高出3.3倍，即使在黑暗的环境中也具有出色的图像识别及检测功能，成为高端4K安防摄像机的最佳选择。
索尼期待这些新开发的CMOS影像传感器可以被广泛应用，因为这可以反向推动4K安防摄像机的应用，从而进一步拉动市场需求。
*3与索尼IMX274 CMOS影像传感器（1/2.5英寸，851万有效像素）相比。
＜主要功能＞
IMX415：应用于安防摄像机的小尺寸的堆叠式4K CMOS影像传感器，仅为1/2.8英寸
索尼开发出的IMX415 4K CMOS影像传感器，尺寸为1/2.8英寸，应用于安防摄像机，在世界同类产品中堪称一绝。该影像传感器采用了索尼独有的高灵敏度、低噪点技术，将像素尺寸缩至1.45平方微米，较前代产品缩小了约80%。尽管该传感器只有1/2.8英寸，其低光性能却是前代产品的1.5倍*3。此外，该传感器采用低噪点电路堆叠式结构，即使在黑暗环境下也可以捕捉到清晰的图像。由于它尺寸小，可适用于多种场景，在安防摄像机应用方面需求量很高。
IMX415样张（左） 前代产品IMX274样张（右）
IMX485：具有卓越低光性能的1/1.2英寸背照式4K CMOS影像传感器
索尼开发的IMX485 1/1.2英寸4K CMOS影像传感器具有卓越的低光性能。它的像素尺寸是2.9平方微米，比前代产品大*12.1倍，该传感器采用最新的低噪点像素技术，低光性能得以大幅提升，是应用于安防摄像机的前代产品的3.3倍*1。该传感器能够在黑暗环境中精准地检测并捕捉目标图像。索尼希望这款新型的1/1.2英寸影像传感器可以成为高端4K安防摄像机的标配。
IMX485样张
The IMX415 from Sony Corporation is type 1/2.8 4K-resolution stacked CMOS image sensor. The ample pixel size of 1.45 square µm coupled with the latest pixel technology for low-noise capabilities, improves the low-light performance, making this sensor ideal for high-end 4K security cameras. This image sensor is ideal for security cameras in a variety of monitoring applications such as anti-theft, disaster alert, and traffic monitoring systems or commercial complexes.
Product Specifications
Product Details
Part Number：IMX415
Manufacturer：Sony Semiconductor Solutions Corporation
Description：4K-Resolution CMOS Image Sensor for Security Cameras
General Parameters
Resolution：3864 (H) x 2192 (V)
Mega Pixels：8.46 MP
Supply Voltage：1.1 V(Digital), 1.8 V(Interface), 2.9 V(Analog)
Optical Format：1/2.8 Inches
Package Type：LGA, Ceramic
Chroma：RGB, Color, Bayer Color
Frame Rate：60 fps@12 Bits, 90 fps@10 Bits
ADC Resolution：10 Bits, 12 Bits
Pixel Size：1.45µm (H) x 1.45µm (V)
Pixel：4 k
Type：Digital Image Sensors
Sensitivity：2048 digits
Connections & Interface
Interface：MIPI
Applications
Application：Security Cameras, Traffic Monitoring Systems, Surveillance, Smart City, Disaster Monitoring Alert
Physical Properties
Optical Diagonal：6.43 mm
Dimensions：12.0 mm x 9.3 mm
索尼公司的IMX415是1/2.8 4k分辨率的堆叠CMOS图像传感器。 1.45平方微米的充足像素尺寸，加上最新的像素技术，低噪音能力，提高了低光性能，使该传感器成为高端4K安全摄像头的理想选择。 这种图像传感器是各种监控应用中的安全摄像头的理想选择，如防盗、灾难警报、交通监控系统或商业综合体。
产品规格
产品详细信息
零件号:IMX415
制造商:索尼半导体解决方案公司
描述:用于安全摄像机的4k分辨率CMOS图像传感器
一般参数
分辨率:3864 (H) x 2192 (V)
百万像素:8.46像素
电源电压:1.1 V(数字)，1.8 V(接口)，2.9 V(模拟)
通过对光学格式:英寸
封装类型:LGA,陶瓷
色度:RGB, Color, Bayer Color
帧速率:60 fps@12 Bits, 90 fps@10 Bits
ADC分辨率:10位，12位
像素大小:1.45µm (H) x 1.45µm (V)
像素:4 k
类型:数字图像传感器
灵敏度:2048位
连接和接口
接口:MIPI
应用:安全摄像头，交通监控系统，监控，智慧城市，灾害监测预警
物理性质
光学对角:6.43毫米
尺寸:12.0毫米x 9.3毫米
