MT9P001i12STM，MI5100黑白芯片，MICRON APTINA ONSEMI 5MP monothrome image sensor，1/2.5-INCH Monochrome sensor, b/w(_black/white) CMOS IMAGE SENSOR, FOR Industrial camera cmos sensor，镁光安森美5百万像素图像传感器，黑白单色图像传感器，工业相机cmos，汽车平衡仪检测设备摄像头cmos感光芯片。

Features

• DigitalClarity® imaging technology

• High frame rate

• Superior low-light performance

• Low dark current

• Global reset release, which starts the exposure of all rows simultaneously

• Bulb exposure mode, for arbitrary exposure times

• Snapshot mode to take frames on demand

• Horizontal and vertical mirror image

• Column and row skip modes to reduce image size without reducing field of view (FOV)

• Column and row binning modes to improve image quality when resizing

• Simple two-wire serial interface

• Programmable controls: gain, frame rate, frame size, exposure

• Automatic black level calibration

• On-chip PLL



Applications

• Industrial camera

• Car balance tester

• Digital still cameras

• Digital video cameras

• PC cameras

• Converged DSCs/camcorders

• Cellular phones

• PDAs



General Description

The Micron® Imaging MT9P001(MI5100) is a 1/2.5-inch CMOS active-pixel digital image sensor with an active imaging pixel array of 2592H x 1944V. It incorporates sophisticated camera functions on-chip such as windowing, column and row skip mode, and snapshot mode. It is programmable through a simple two-wire serial interface.



The 5-megapixel CMOS image sensor features Digital-Clarity—Micron’s breakthrough low-noise CMOS imaging technology that achieves CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.

特性

• DigitalClarity®成像技术

• 高帧率

• 卓越的弱光性能

• 低暗电流

• 全局重置释放，同时开始暴露所有行

• 灯泡曝光模式，可任意设定曝光时间

• 快照模式，按需获取帧

• 水平和垂直镜像

• 列和行跳过模式，减少图像大小而不减少视场(FOV)

• 列和行二进制模式，以提高图像质量时调整大小

• 简单的二线制串行接口

• 可编程控制:增益，帧速率，帧大小，曝光

• 自动黑电平校准

• 芯片上的锁相环



应用

• 工业相机

• 汽车平衡测试仪

• 数码静止相机

• 数码摄像机

• 电脑摄像头

• 聚合DSCs /摄像机

• 手机

• pda



一般的描述

Micron®Imaging MT9P001是一个1/2.5英寸CMOS有源像素数字图像传感器，具有2592H x 1944V的有源成像像素阵列。 它集成了复杂的片上相机功能，如窗口、列和行跳过模式和快照模式。 它是可编程的，通过一个简单的两线串行接口。



500万像素CMOS图像传感器采用Digital-Clarity-Micron公司突破性的低噪声CMOS成像技术，在保持CMOS固有尺寸、成本和集成优势的同时，实现CCD图像质量(基于信噪比和低光灵敏度)。



Ordering Information

Table 2: Available Part Numbers

Part Number Description

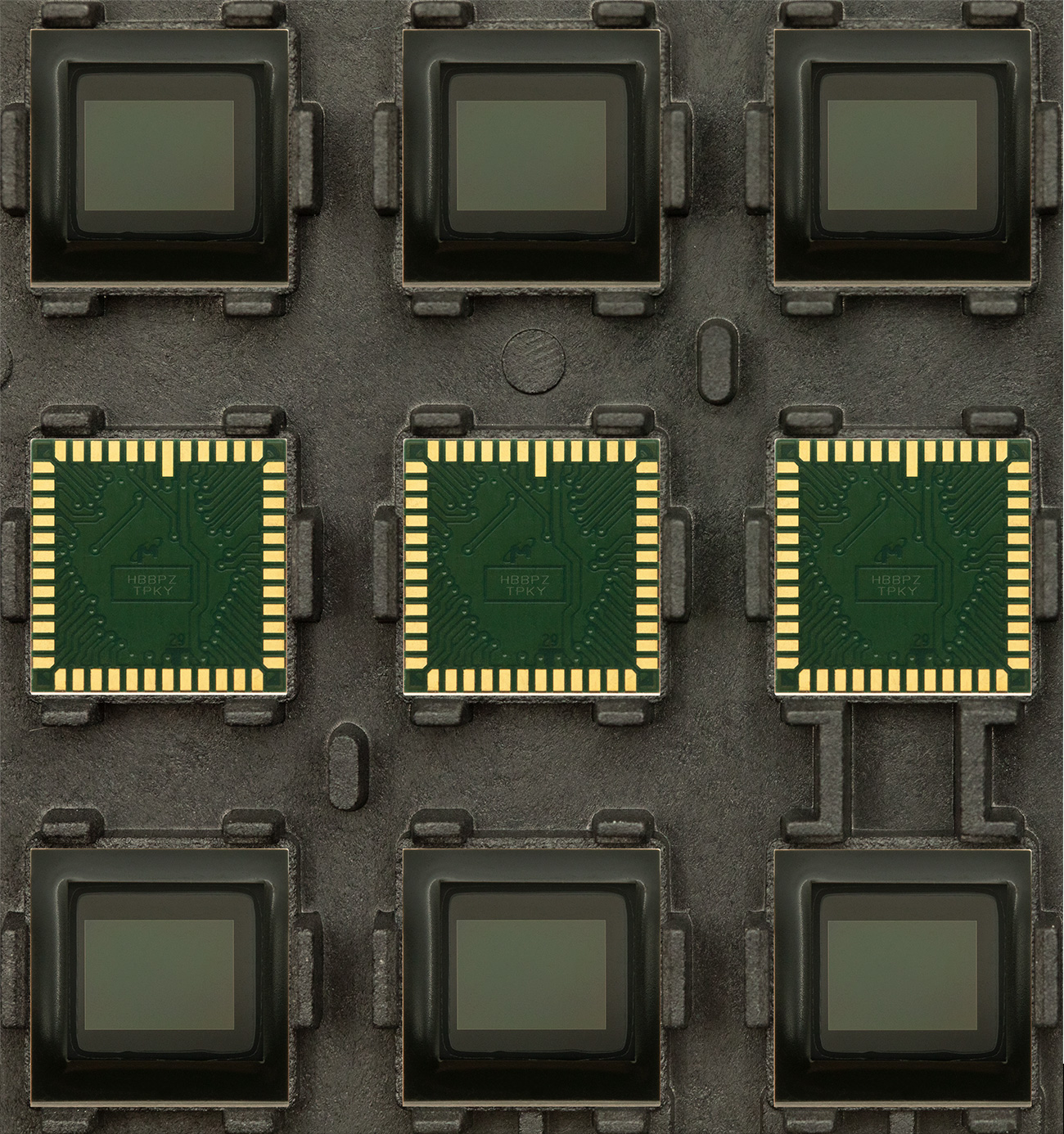

MT9P001I12STM 48-pin iLCC
