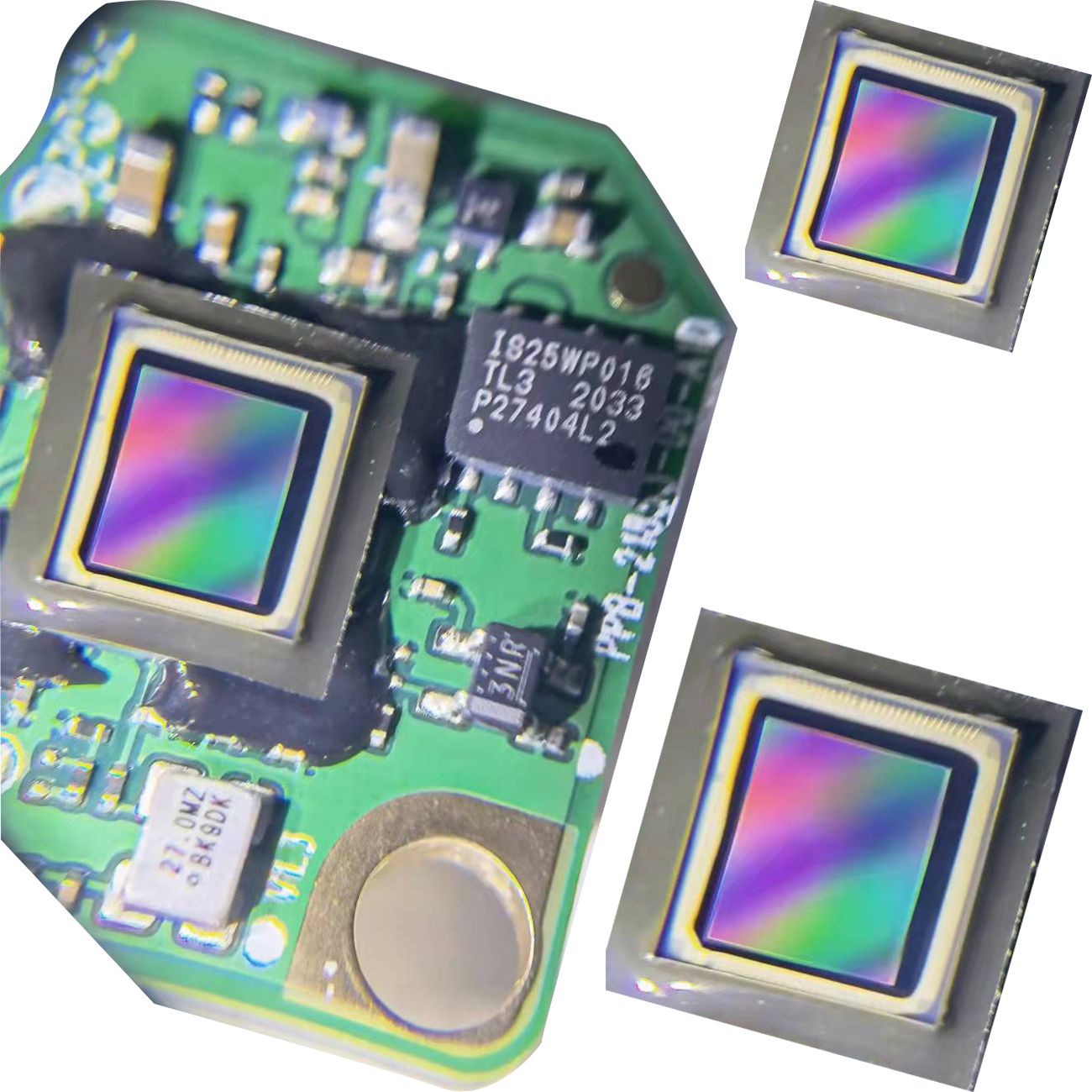

ISX019 1/3.8 type 1.23megapixels CMOS image sensor System-on-Chip (SoC) for automotive 用于汽车360°可视角环绕影像的1/3.8英寸123万像素图像传感器片上系统(SoC)
满2件全国包邮，你有这个ISX019可以卖给我，你需要ISX019，可以找我买。
Freight is free when you buy 2 pieces in China, if you have ISX019 inventory, you can sell to me, if you need ISX019, you can ask me to buy.
The ISX019 is a System on Chip with the stacked structure consists of a high performance image sensor and a processing engine for automotive surround and rear view camera use.
1. The image sensor uses a back-illuminated pixeltechnology to realize high sensitivity and lownoise, and the logic chip realizes large-scale
circuit by state-of-the-art process in smaller chip with low power consumption.
2. High Dynamic Range (HDR) function is realized by digital overlap method of combining multipleframes on chip.
3. “Super Contrast” is one of the built-in function, which enhances the contrast of picture.
Product Features
● Sensitivity 4x improvement than conventional product.
● Conversion Gain Switching (HCG mode / LCG mode)
● Power consumption 40% reduction than conventional product
● High Dynamic Range (HDR) function
- 100dB@60fps by 2-frame combination
- 120dB@30fps by 3-frame combination.
● Super Contrast function
● AE/AWB control function
● External communication interface: I2C
● Output interface:
- CMOS Parallel / MIPI CSl-2 Serial
● Output format : YCbCr format
● 12-bit / 10-bit A/D converter
● Serial-NOR-Flash control function
● AEC-Q100 Grade 2 qualified
用于汽车的1/3.8型123万像素CMOS图像传感器片上系统(SoC)
ISX019是一种堆叠结构的芯片系统，由高性能图像传感器和汽车处理引擎组成使用360°可视角环绕视频和后视镜。
1. 图像传感器采用背光像素技术，实现了高灵敏度、低噪声，逻辑芯片实现了大规模成像电路采用最先进的工艺，芯片更小，功耗更低。
2. 采用片上多帧相结合的数字重叠方法实现了高动态范围功能。
3. 内置“超对比度”功能，增强画面对比度。
产品特性
● 灵敏度比传统产品提高4倍。
● 转换增益切换(HCG模式/ LCG模式)
● 能耗比常规产品降低40%
● 高动态范围(HDR)功能
- 100dB@60fps由2帧组合
- 120dB@30fps由3帧组合。
● 超强对比度功能
● AE/AWB控制功能
● 外部通信接口:I2C
● 输出接口:
- CMOS并行/ MIPI CSl-2串行
● 输出格式:YCbCr格式
● 12位/ 10位A/D转换器
● 串行无闪光控制功能
● AEC-Q100二级认证合格
SONY ISX019 系統晶片簡介 2019-02-13
Sony推出對角線4.69 mm（1/3.8吋）、畫素尺寸為2.9 x 2.9 μm、1.23 Mega有效畫素的影像感測器-ISX019。ISX019採用System on Chip (SoC)的架構，其內部堆疊結構包括高效能的影像感測器和影像處理器，同時搭配Back-illuminated背照式技術，實現了高靈敏度和低雜訊的效能。在邏輯晶片部分採用最先進的製程，能在較小的晶片中實現大規模的電路以及低功耗的表現，此外ISX019具有高動態範圍(HDR)功能，是通過多幀組合的DOL (Digital Over Lap)技術實現，並內建新功能“Super Contrast (SC)”，可以增強整體畫面對比度。ISX019適用於汽車環景和倒車後視鏡頭。
Sony has released ISX019, diagonal 4.69mm (1/3.8 ") image sensor with a pixel size of 2.9 x 2.9 μm and 1.23 Mega pixels. ISX019 adopts System on Chip (SoC) architecture. Its internal stack structure includes an efficient image sensor and image processor, coupled with back-illuminated technology, achieving high sensitivity and low noise efficiency. The ISX019 features a high dynamic range (HDR) function, which is achieved through multi-frame combination DOL (Digital Over Lap) technology. The new function "Super Contrast (SC)" can enhance the overall picture Contrast. ISX019 is suitable for car ring view and rear view mirror head.
有关ISX019的价格，datasheet，简介，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书，代理商，技术支持，产品介绍，参数，方案商，分销商，经销商，官网，生产厂家，专卖店，高价收购，模组，模块，特价，库存，生产商，哪里买，性价比，用途，封装厂，晶圆厂，代工厂，可咨询本公司
https://www.sunnywale.com/uploadfile/2021/1108/ISX019简介(Awin).pdf
点击或者复制上面链接到浏览器打开，可下载datasheet PDF，Click or copy the link to download the datasheet PDF
