MT9V024IA7XTR，ONSEMI安森美，近红外增强彩色RGB(RCCC:NIR enhanced)，全局曝光快门机器视觉相机，工业相机宽1/3VGA黑白单色彩色RGB近红外增强，数字图像传感器， Global shutter Wide-VGA， CMOS Digital Image Sensor,for Industrial camera
]

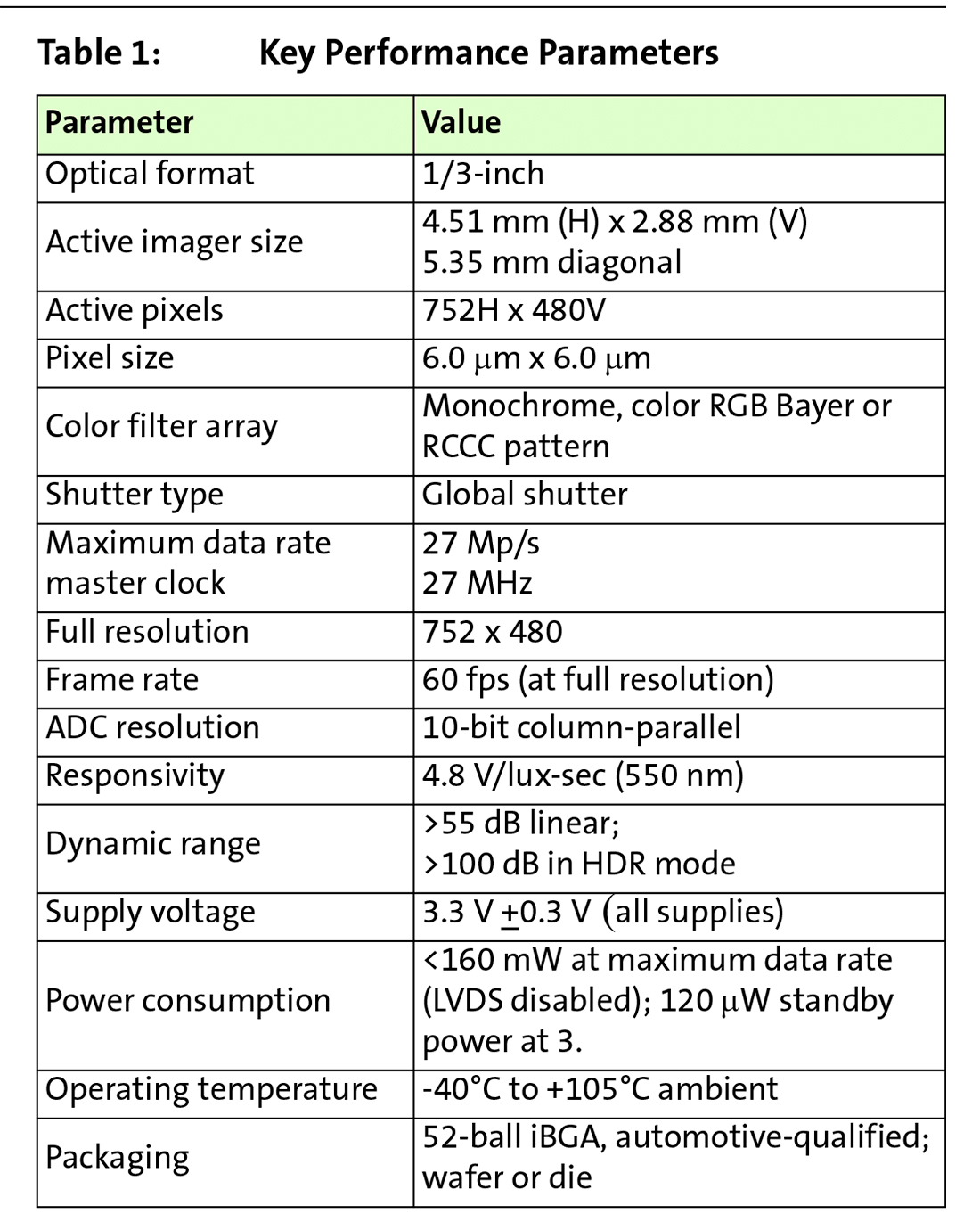

Features
● Array format: Wide-VGA, active 752H x 480V (360,960 pixels)
● Global shutter photodiode pixels; simultaneous integration and readout
● RGB Bayer, Monochrome, or RCCC: NIR enhanced performance for use with non-visible NIR illumination
● Readout modes: progressive or interlaced
● Shutter efficiency: >99%
● Simple two-wire serial interface
● Real-time exposure context switching - dual register set
● Register lock capability
● Window size: User programmable to any smaller format (QVGA, CIF, QCIF). Data rate can be maintained independent of window size
● Binning: 2 x 2 and 4 x 4 of the full resolution
● ADC: On-chip, 10-bit column-parallel (option to operate in 12-bit to 10-bit companding mode)
● Automatic controls: Auto exposure control (AEC) and auto gain control (AGC); variable regional and variable weight AEC/AGC
● Support for four unique serial control register IDs to control multiple imagers on the same bus
● Data output formats:
– Single sensor mode: 10-bit parallel/stand-alone，8-bit or 10-bit serial LVDS
– Stereo sensor mode: Interspersed 8-bit serial LVDS
● High dynamic range (HDR) mode

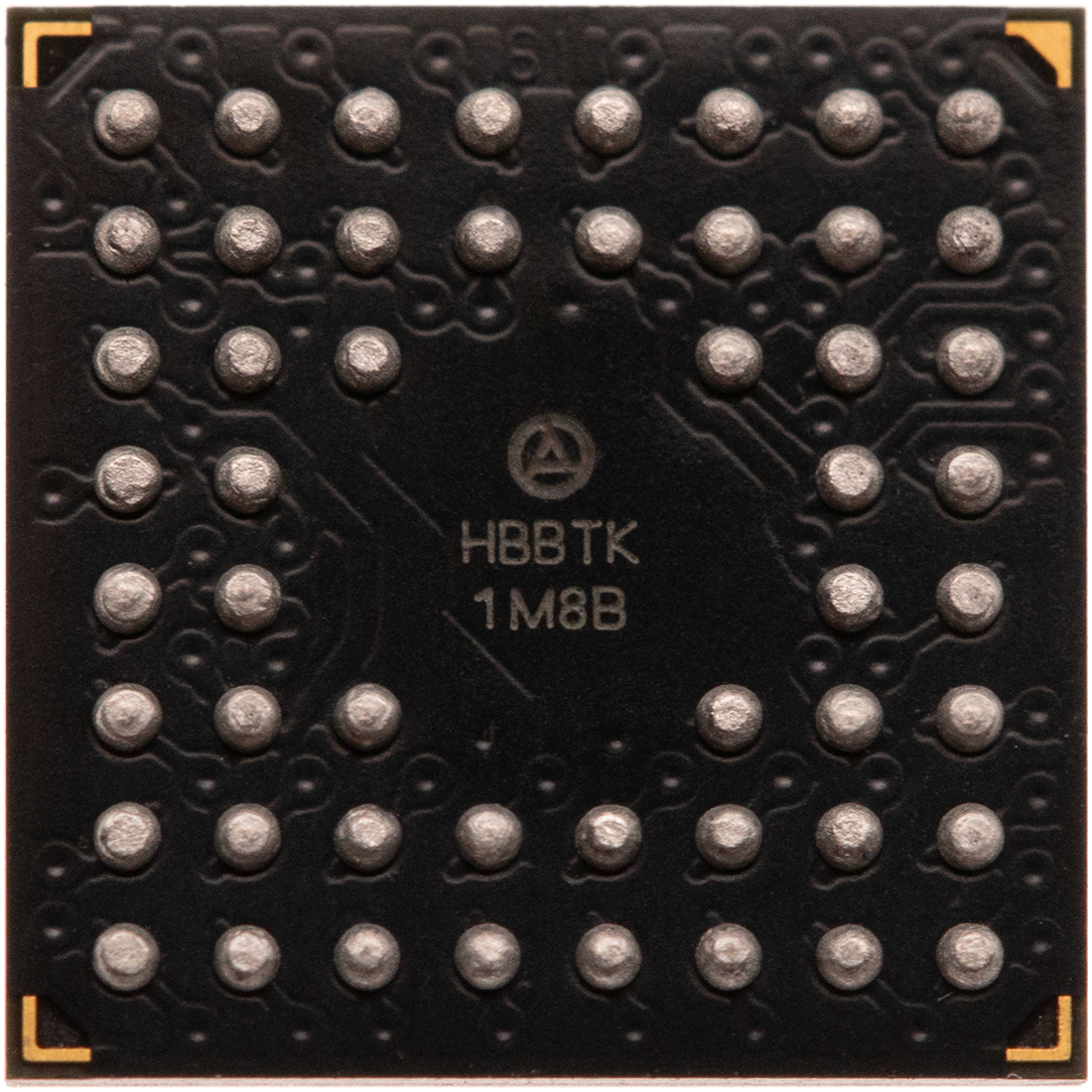

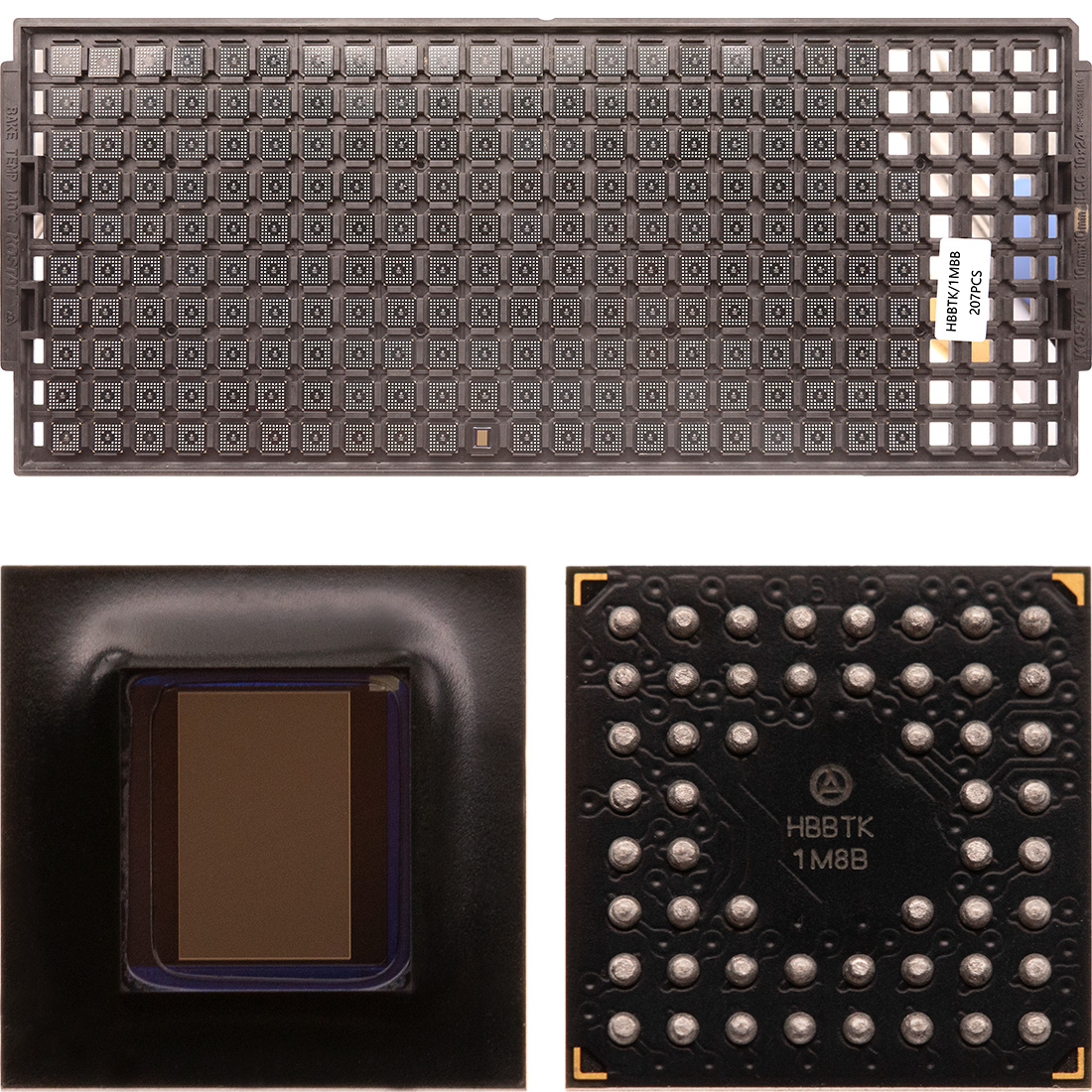

● Package: BGA52, 9X9mm
Applications
● Automotive
● Unattended surveillance
● Stereo vision
● Smart vision
● Automation
● Video as input
● Machine vision
General Description
The MT9V024 is a 1/3-inch wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior automotive imaging needs, which makes this part ideal for a wide variety of imaging applications in realworld environments.
This wide-VGA CMOS image sensor features Aptina’s breakthrough low-noise CMOS imaging technology that achieves CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
The active imaging pixel array is 752H x 480V. It incorporates sophisticated camera functions on-chip—such as binning 2 x 2 and 4 x 4, to improve sensitivity when operating in smaller resolutions—as well as windowing, column and row mirroring. It is programmable through a simple two-wire serial interface.
The MT9V024 can be operated in its default mode or be programmed for frame size, exposure, gain setting, and other parameters. The default mode outputs a wide-VGA-size image at 60 frames per second (fps).
An on-chip analog-to-digital converter (ADC) provides 10 bits per pixel. A 12-bit resolution companded for 10 bits for small signals can be alternatively enabled, allowing more accurate digitization for darker areas in the image.
In addition to a traditional, parallel logic output the MT9V024 also features a serial lowvoltage differential signaling (LVDS) output. The sensor can be operated in a stereocamera, and the sensor, designated as a stereo-master, is able to merge the data from itself and the stereo-slave sensor into one serial LVDS stream.
The sensor is designed to operate in a wide temperature range (–40°C to +105°C).
MT9V024IA7XR ONSEMI 1/3英寸宽vga CMOS数字图像传感器用于工业相机,RCCC:近红外增强性能
特性
● 阵列格式:宽VGA，有源752H x 480V(360,960像素)
● 全局快门光电二极管像素; 同时集成和读出
● RGB拜耳、单色或RCCC:近红外增强性能，用于非可见近红外照明
● 读数模式:渐进式或交错式
● 快门效率:>99%
● 简单的两线串行接口
● 实时曝光环境切换-双寄存器设置
● 寄存器锁定能力
● 窗口大小:用户可编程任何较小的格式(QVGA, CIF, QCIF)。 数据速率可以保持与窗口大小无关
● Binning: 2×2和4×4的全分辨率
● ADC:片上，10位列并行(可选择12-10位压缩模式)
● 自动控制:自动曝光控制(AEC)和自动增益控制(AGC); 可变区域和可变权重AEC/AGC
● 支持四个唯一的串行控制寄存器id来控制同一总线上的多个图像
● 数据输出格式:
-单传感器模式:10位并机/单机、8位或10位串行LVDS
-立体声传感器模式:散布8位串行LVDS
● 高动态范围(HDR)模式
● 封装: BGA52, 9X9mm
应用
● 汽车
● 无人值守监测
● 立体视觉
● 智能视觉
● 自动化
● 视频作为输入
● 机器视觉
一般的描述
MT9V024是一款1/3英寸宽vga格式CMOS主动像素数字图像传感器，具有全局快门和高动态范围(HDR)操作。 该传感器专门设计来支持苛刻的内部和外部汽车成像需求，这使得该部件成为现实世界环境中各种成像应用的理想选择。
这款宽vga CMOS图像传感器采用了Aptina突破性的低噪声CMOS成像技术，实现了CCD图像质量(基于信噪比和低光灵敏度)，同时保持了CMOS固有的尺寸、成本和集成优势。
主动成像像素阵列为752H x 480V。 它在芯片上集成了复杂的相机功能，比如在分辨率较小的情况下，将2 × 2和4 × 4的相机分成两组，以提高相机的灵敏度，还包括开窗、列和行镜像。 它是通过一个简单的两线串行接口编程的。
MT9V024可以在默认模式下操作，也可以对帧大小、曝光、增益设置和其他参数进行编程。 默认模式以每秒60帧(fps)的速度输出宽vga大小的图像。
片上模数转换器(ADC)提供每像素10位。 对于小信号，12位分辨率和10位分辨率可以交替启用，允许对图像中较暗的区域进行更精确的数字化。
除了传统的并行逻辑输出外，MT9V024还具有串行低电压差分信号(LVDS)输出。 传感器可以在立体摄像机中操作，传感器被指定为立体主控机，能够将自身和立体从传感器的数据合并到一个串行LVDS流中。
该传感器设计工作在宽温度范围(-40°C至+105°C)。
有关MT9V024的价格，datasheet，简介，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书，代理商，技术支持，产品介绍，参数，方案商，分销商，经销商，官网，生产厂家，专卖店，高价收购，模组，模块，特价，库存，生产商，哪里买，性价比，用途，封装厂，晶圆厂，代工厂，可咨询本公司
有关MT9V024IA7XTR的价格，datasheet，简介，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书，代理商，技术支持，产品介绍，参数，方案商，分销商，经销商，官网，生产厂家，专卖店，高价收购，模组，模块，特价，库存，生产商，哪里买，性价比，用途，封装厂，晶圆厂，代工厂，可咨询本公司
https://www.sunnywale.com/uploadfile/2022/0223/MT9V024_Awin.pdf点击或者复制上面链接到浏览器打开，MT9V024IA7XTR datasheet PDF file可免费下载，Click or copy the link to free download the datasheet PDF file.
