MT9V024全局曝光快门机器视觉相机，工业相机宽1/3VGA黑白单色彩色RGB近红外增强，数字图像传感器NIR enhanced， Global shutter Wide-VGA， CMOS Digital Image Sensor
2021-08-20 16:28:47
点击购买

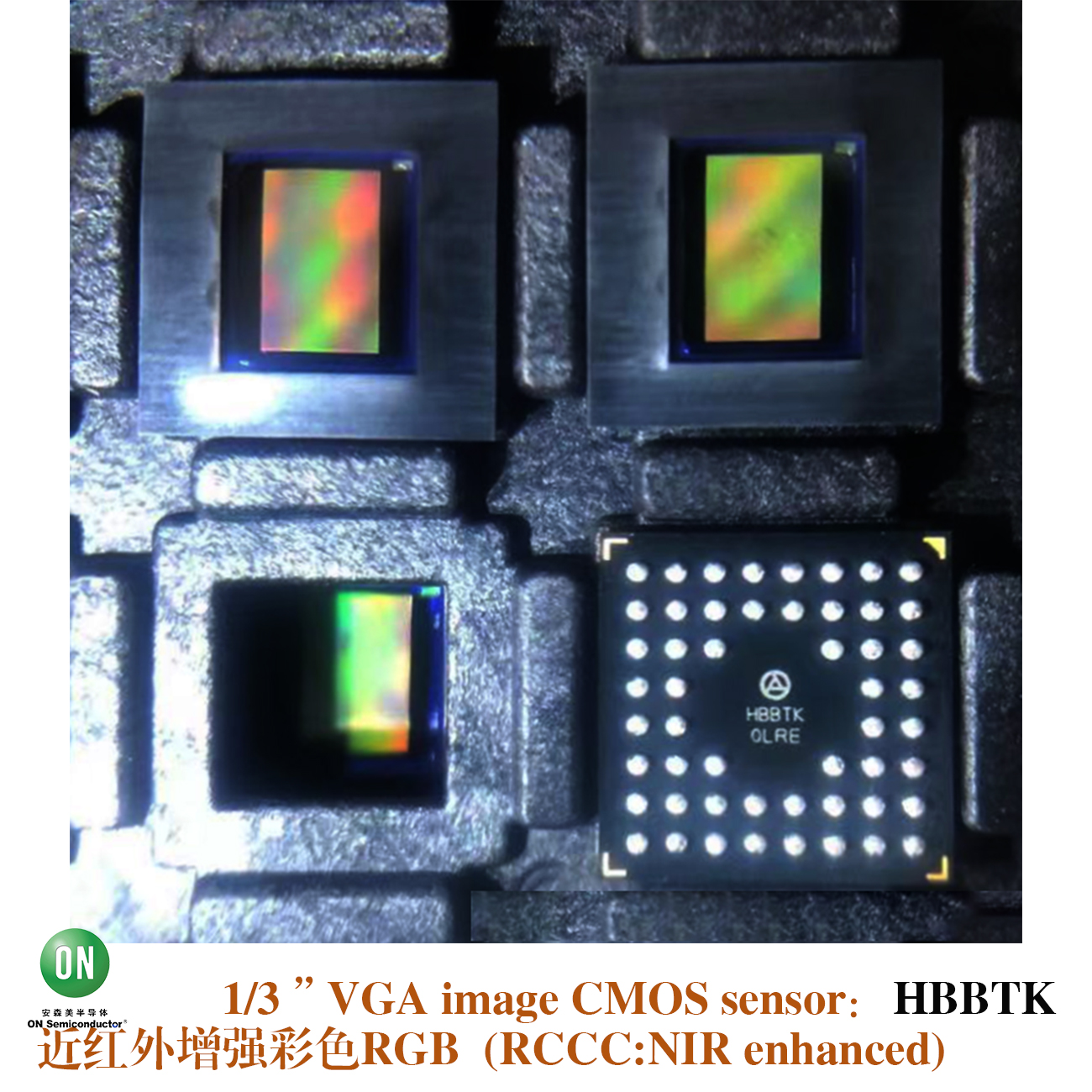

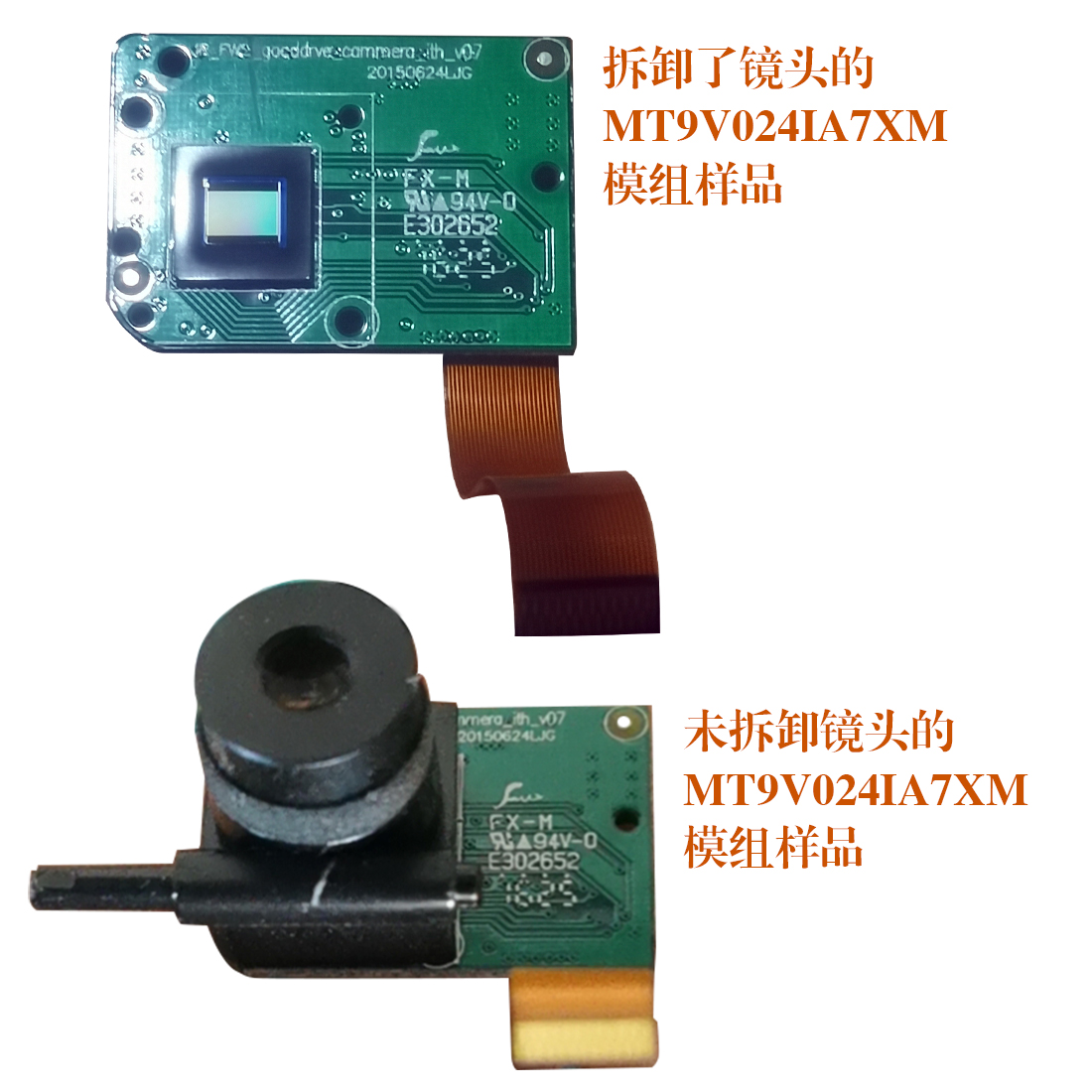

1/3-Inch Wide-VGA CMOS Digital Image Sensor
Features
● Array format: Wide-VGA, active 752H x 480V (360,960 pixels)
● Global shutter photodiode pixels; simultaneous integration and readout
● RGB Bayer, Monochrome, or RCCC: NIR enhanced performance for use with non-visible NIR illumination
● Readout modes: progressive or interlaced
● Shutter efficiency: >99%
● Simple two-wire serial interface
● Real-time exposure context switching - dual register set
● Register lock capability
● Window size: User programmable to any smaller format (QVGA, CIF, QCIF). Data rate can be maintained independent of window size
● Binning: 2 x 2 and 4 x 4 of the full resolution
● ADC: On-chip, 10-bit column-parallel (option to operate in 12-bit to 10-bit companding mode)
● Automatic controls: Auto exposure control (AEC) and auto gain control (AGC); variable regional and variable weight AEC/AGC
● Support for four unique serial control register IDs to control multiple imagers on the same bus
● Data output formats:
- Single sensor mode:
10-bit parallel/stand-alone
8-bit or 10-bit serial LVDS
- Stereo sensor mode: Interspersed 8-bit serial LVDS
● High dynamic range (HDR) mode
Applications
● Automotive
● Unattended surveillance
● Stereo vision
● Smart vision
● Automation
● Video as input
● Machine vision
Table 1: Key Performance Parameters
Parameter/ Value
Optical format: 1/3-inch
Active imager size：4.51 mm (H) x 2.88 mm (V)，5.35 mm diagonal
Active pixels： 752H x 480V
Pixel size： 6.0μm x 6.0μm
Color filter array：Monochrome, color RGB Bayer or RCCC pattern
Shutter type： Global shutter
Maximum data rate：27 Mp/s
master clock：27 MHz
Full resolution： 752 x 480
Frame rate： 60 fps (at full resolution)
ADC resolution： 10-bit column-parallel
Responsivity： 4.8 V/lux-sec (550 nm)
Dynamic range：>55 dB linear; >100 dB in HDR mode
Supply voltage ：3.3 V +0.3 V（all supplies)
Power consumption：<160 mW at maximum data rate (LVDS disabled); 120 μW standby power at 3.
Operating temperature： -40°C to +105°C ambient
Packaging：52-ball iBGA, automotive-qualified; wafer or die
General Description
The MT9V024 is a 1/3-inch wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior automotive imaging needs, which makes this part ideal for a wide variety of imaging applications in realworld environments.
This wide-VGA CMOS image sensor features Aptina’s breakthrough low-noise CMOS imaging technology that achieves CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
The active imaging pixel array is 752H x 480V. It incorporates sophisticated camera functions on-chip—such as binning 2 x 2 and 4 x 4, to improve sensitivity when operating in smaller resolutions—as well as windowing, column and row mirroring. It is programmable
through a simple two-wire serial interface.
The MT9V024 can be operated in its default mode or be programmed for frame size, exposure, gain setting, and other parameters. The default mode outputs a wide-VGA-size image at 60 frames per second (fps).
An on-chip analog-to-digital converter (ADC) provides 10 bits per pixel. A 12-bit resolution companded for 10 bits for small signals can be alternatively enabled, allowing more accurate digitization for darker areas in the image.
In addition to a traditional, parallel logic output the MT9V024 also features a serial lowvoltage differential signaling (LVDS) output. The sensor can be operated in a stereocamera, and the sensor, designated as a stereo-master, is able to merge the data from itself and the stereo-slave sensor into one serial LVDS stream.
The sensor is designed to operate in a wide temperature range (–40°C to +105°C).
1/3英寸宽VGA CMOS数字图像传感器
特性
● 阵列格式：宽VGA，有源752H x 480V(360,960像素)
● 全局快门光电二极管像素；同时集成和读出
● RGB拜耳、单色或RCCC：近红外增强性能，用于非可见近红外照明
● 读数模式：渐进式或交错式
● 快门效率：>99%
● 简单的两线串行接口
● 实时曝光环境切换-双寄存器设置
● 寄存器锁定能力
● 窗口大小：用户可编程任何较小的格式(QVGA, CIF, QCIF)。数据速率可以保持与窗口大小无关
● Binning: 2×2和4×4的全分辨率
● ADC：片上，10位列并行(可选择12- 10位压缩模式)
● 自动控制：自动曝光控制(AEC)和自动增益控制(AGC);可变区域和可变权重AEC/AGC
● 支持四个唯一的串行控制寄存器id来控制同一总线上的多个图像
● 数据输出格式：
-单传感器模式：
10位并行/独立
8位或10位串行LVDS
-立体声传感器模式:散布8位串行LVDS
● 高动态范围(HDR)模式
应用:
● 汽车摄像头
● 无人值守监测
● 立体视觉
● 智能视觉
● 自动化
● 视频作为输入
● 机器视觉
表1:关键性能参数
参数/值
光学格式：1/3-inch
主动成像仪尺寸：4.51 mm (H) x 2.88 mm (V)，对角线5.35 mm
活动像素：752H x 480V
像素尺寸：6.0μm × 6.0μm
滤色器阵列：单色，颜色RGB Bayer或RCCC模式
快门类型：全局快门
最大数据速率：27mp /s
主时钟：27 MHz
全分辨率：752 x 480
帧率：60帧/秒(全分辨率)
ADC分辨率：10位列并行
响应度：4.8 V/lux-sec (550 nm)
动态范围：>55 dB线性;> 100db在HDR模式
电源电压：3.3 V +0.3 V(所有电源)
耗电量：160 mW (LVDS禁用);120 μW待机功率在3。
工作温度：-40°C到+105°C环境
封装：52-ball iBGA车规；晶片或die
