ICX255AK索尼SONY1/3"低光照度模拟输出安防监控摄像机PAL彩色EXview HAD CCD图像传感器
2021-06-02 23:28:07
点击购买
对角线6mm(1/3型)CCD图像传感器，用于PAL彩色摄像机
描述
ICX255AK是一种行间CCD固态图像传感器，适用于PAL彩色摄像机的对角6mm (Type1/3)系统。与目前的产品ICX055BK相比，通过采用EXview HAD CCDTM技术，灵敏度、涂片、动态范围、信噪比等基本特性有了显著提高。
该芯片具有一个场周期读出系统和一个可变电荷存储时间的电子快门。
EXview HAD CCDTM与现有的CCD具有不同的光谱特性。
特性
•高灵敏度(与ICX055BK相比+6dB)
•低涂抹(与ICX055BK相比-20dB)
•高D量程(与ICX055BK相比+3dB)
•高信噪比
•暗电流低
•优良的防开花特性
•Ye, Cy, Mg, and G互补色马赛克滤波器芯片
•连续变速快门
•没有电压调整(复位栅极和衬底偏压没有调整。)
•复位门:5V驱动
•水平寄存器:5V驱动器
设备结构
•行间CCD图像传感器
•图像尺寸: 对角线6mm (Type 1/3")
•有效像素数: 500 (H)x582 (V)约 290 k像素
•像素总数: 537 (H)x597 (V)约 320 k像素
•芯片尺寸: 6.00mm (H)x4.96mm (V)
•细胞尺寸: 9.8μm (H)x6.3μm (V)
•光学黑色: 水平(H)方向:前7像素，后30像素
垂直(V)方向:前14像素，后1像素
•虚拟位的数量: 水平16
垂直1(甚至字段)
•衬底材料: 硅

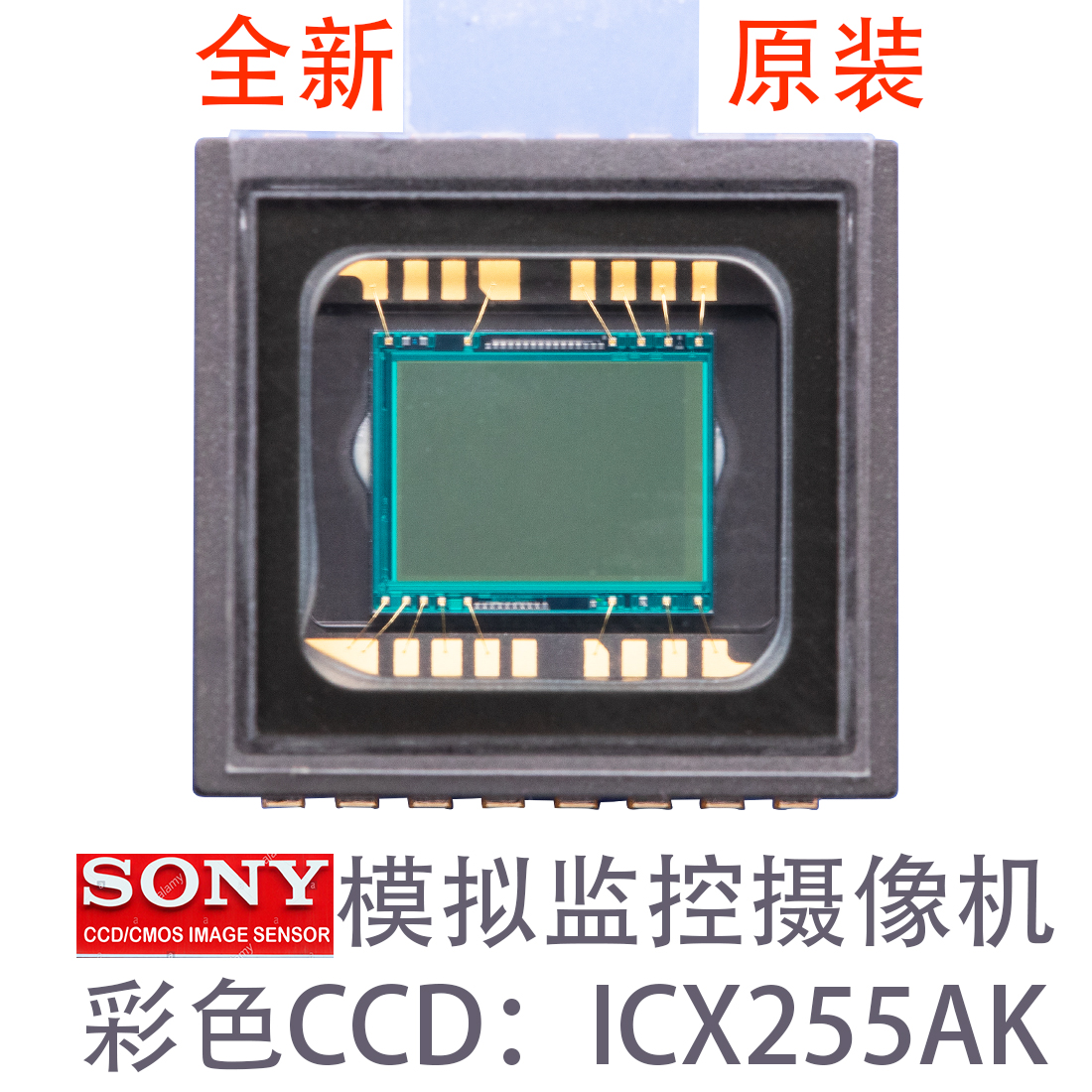

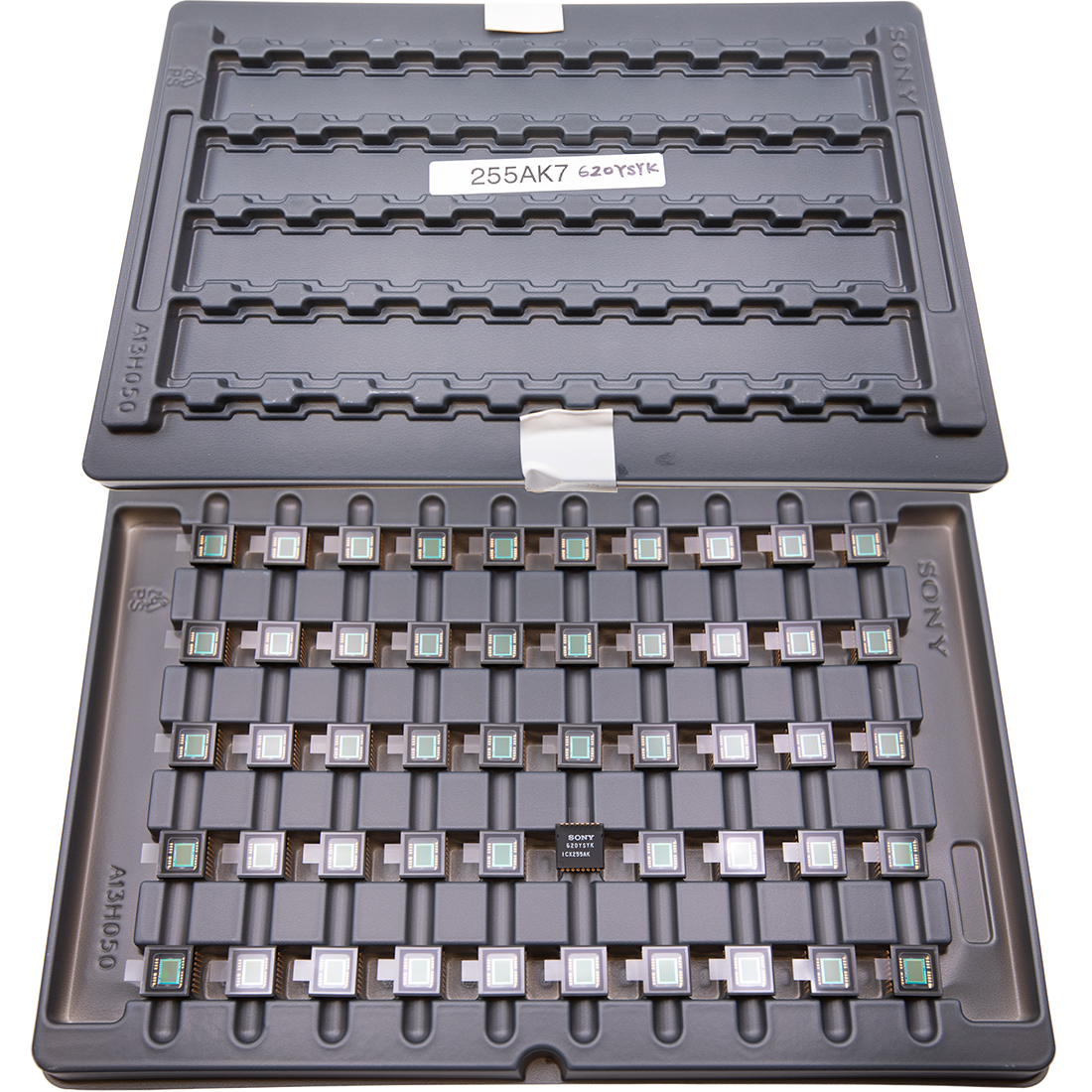

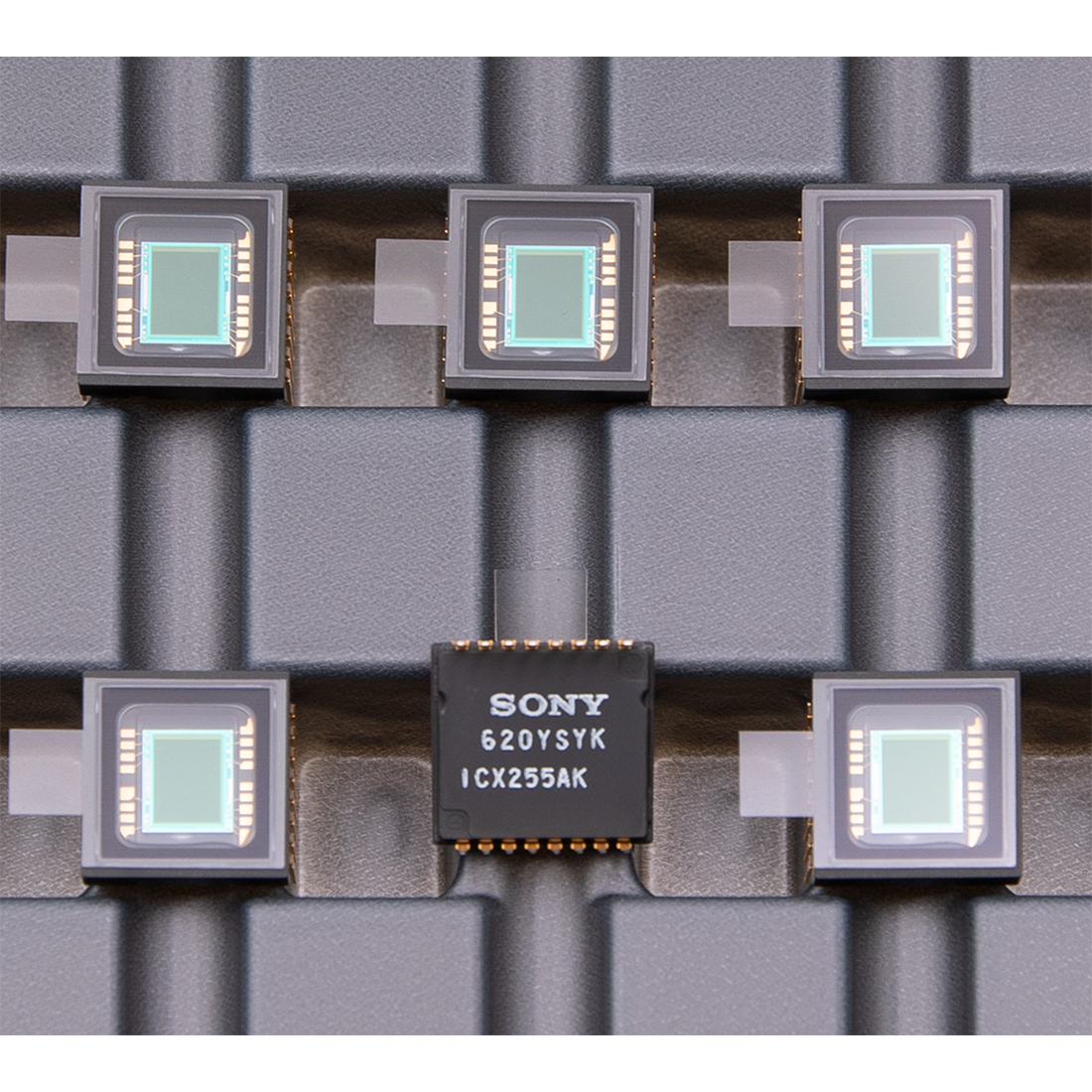

以上所有图片均为实物拍摄后抠图后即上线展示，所见即所得。
