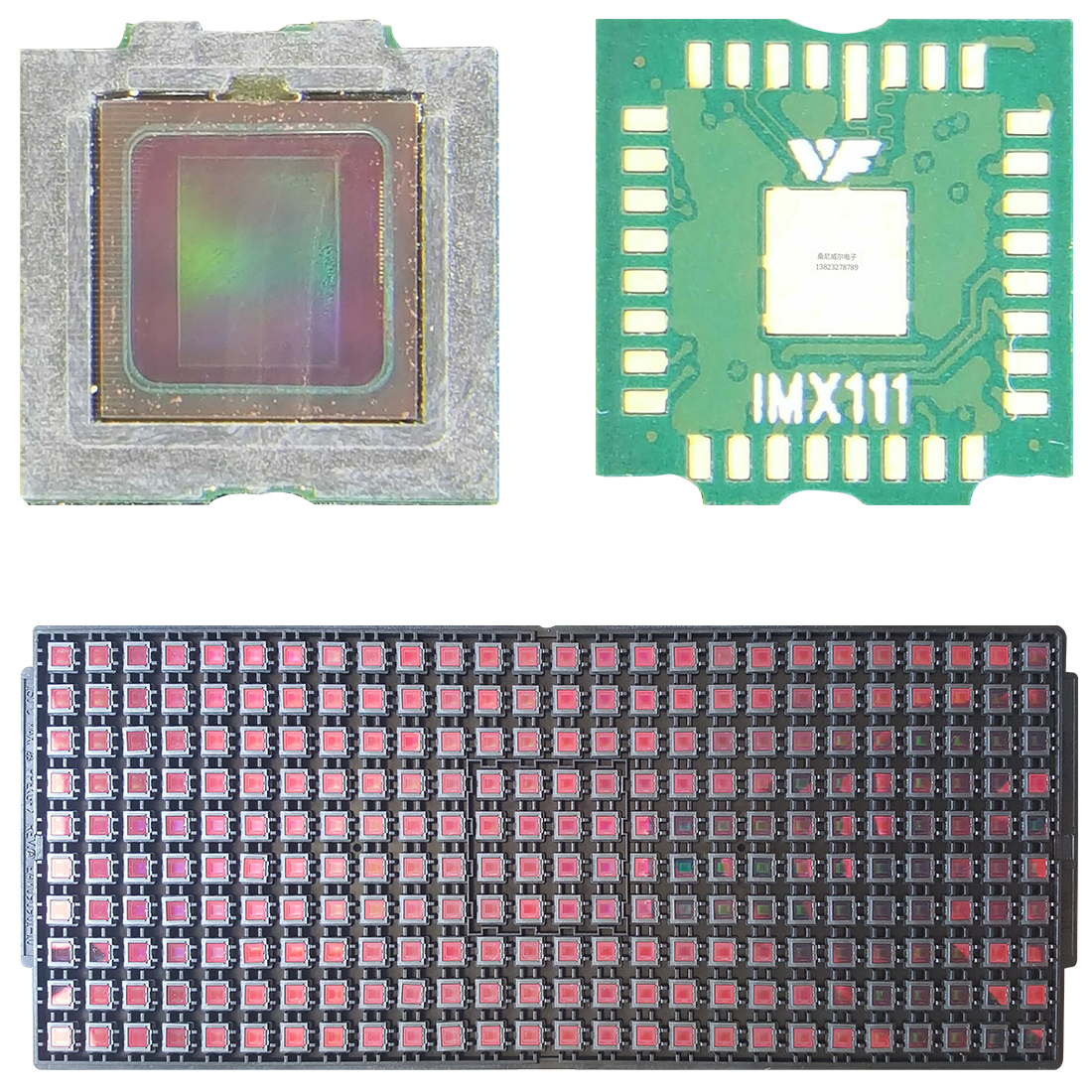

1. 一般的描述
IMX111PQ是一个对角线4.60 mm (Type 1/4.0)背光型CMOS图像传感器，具有正方形像素阵列和大约。该传感器由3280*2464(含有效像素3296*2480)有源像素组成。采用柱并联A/D转换器实现高速处理，改变基本结构为背照式增强成像灵敏度和低噪声特性。采用了R、G、B三原色拼接滤镜。高灵敏度，低暗电流特性实现。它配备了可变积分时间的电子快门。它工作在三个电源电压:模拟2.7 V，数字1.2 V和1.8 V输入/输出接口，实现低功耗。本产品专为手机摄像头应用而设计。
3.特性
◆背光源CMOS图像传感器Exmor R
◆芯片上的2线串行通信电路和3线串行通信电路
◆芯片上的CSI2串行数据输出(选择1 Lane/2 Lane)
◆芯片上的定时发生器、H、V驱动电路
◆10位A/D转换器
◆芯片上自动光学黑(OB)钳位电路
◆芯片锁相环(矩形波/正弦波)
◆灵敏度高、暗电流小、无涂片、抗晕性好
◆变速快门功能(最小单位:一个水平同步信号周期)
◆芯片上有R、G、B三原色颜料马赛克滤光片
◆氙气/LED闪光控制功能
◆全像素扫描模式下最大22.58帧/秒
◆像素速率:135.0 MHz(所有像素，2 Lane, 15帧/秒)
◆支持720/60p、1080/30p、
◆上下及左右反转功能
◆图像切割功能
◆OTP ROM (One Time Programmable Read Only Memory) 128字节
◆开机复位功能
◆无需上电顺序
◆校正/补偿处理功能(2D降噪)

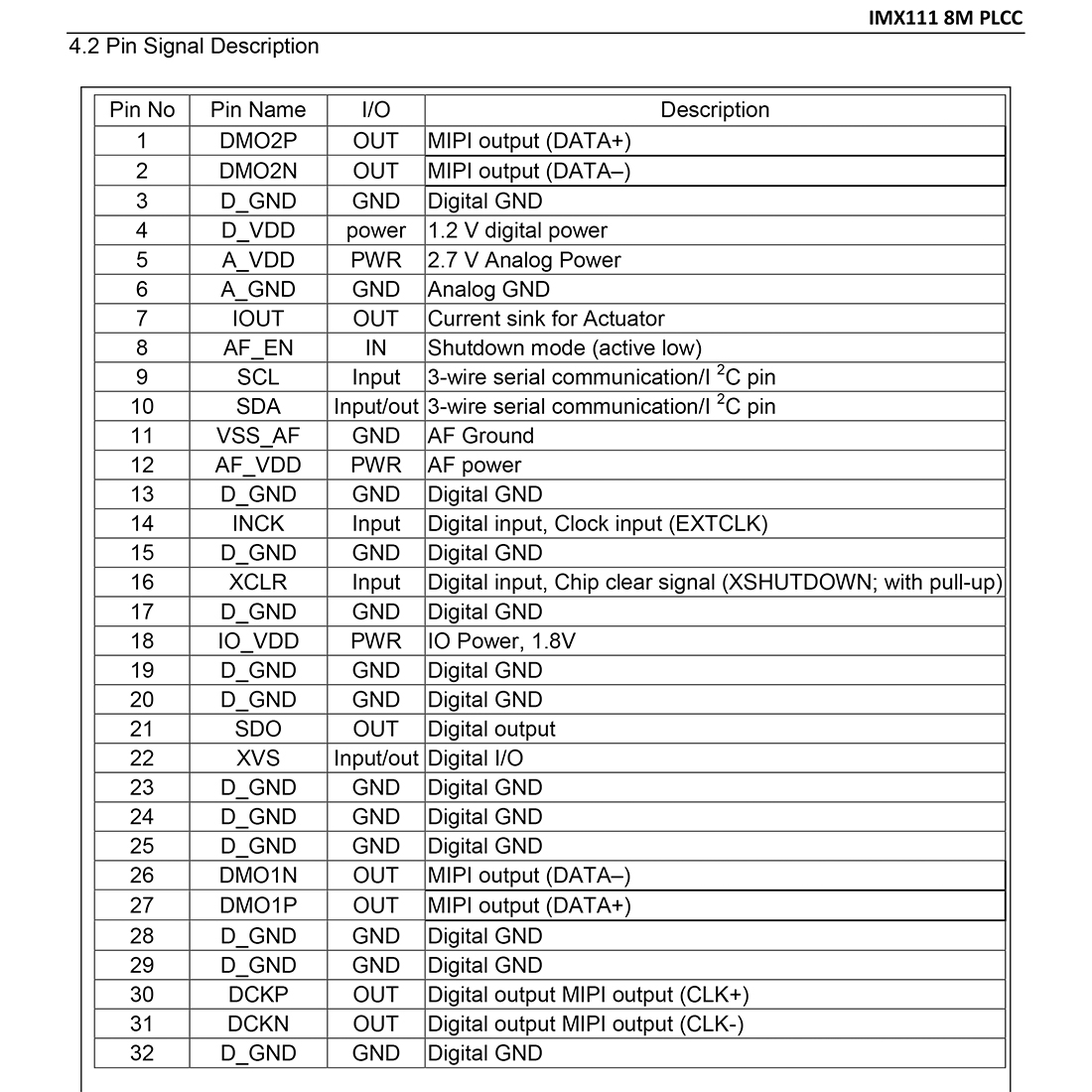

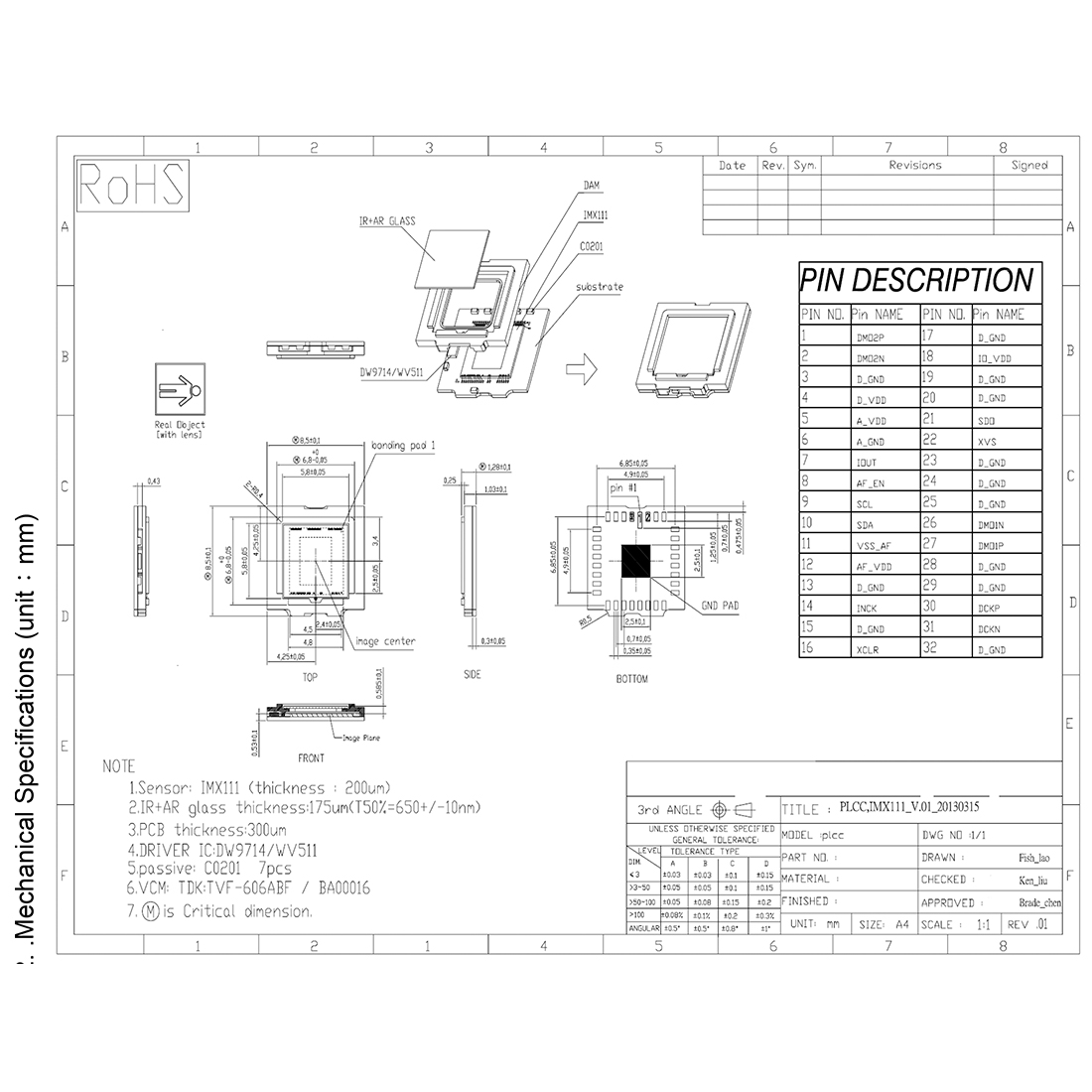

1. General Description
IMX111PQ is a diagonal 4.60 mm (Type 1/4.0) back-illuminated type CMOS image sensor with a square pixel array and approx. The sensor consists of 3280*2464(3296*2480 including effective pixels) active pixels. Adoption of column parallel A/D converter realized high-speed processing and changing fundamental structure to back-illuminated type enhanced imaging characteristics including sensitivity and low noise. R, G, and B pigment primary color mosaic filter is emproyed. High sensitivity, low dark current features are achieved. It equips an electronic shutter with variable integration time. It operates with three power supply voltages:analog 2.7 V, digital 1.2 V and 1.8 V for input/output interface and achieves low power consumption. This product is designed for use in mobile cellphone camera application.
3. Features
◆ Back-illuminated CMOS image sensor “Exmor R”
◆ 2-wire serial communication circuit and 3-wire serial communication circuit on chip
◆ CSI2 serial data output (selection of 1 Lane/2 Lane) on chip
◆ Timing generator, H and V driver circuits on chip
◆ CDS/PGA on chip ◆ 10-bit A/D converter on chip
◆ Automatic optical black (OB) clamp circuit on chip
◆ PLL on chip (rectangular wave/sine wave)
◆ High sensitivity, low dark current, no smear, excellent anti-blooming characteristics
◆ Variable-speed shutter function (Minimum unit: One horizontal sync signal period)
◆ R, G, B primary color pigment mosaic filters on chip
◆ Supports external mechanical shutter ◆ Xenon/LED Flash control function
◆ Max. 22.58 frame/s in all-pixel scan mode
◆ Pixel rate: 135.0 MHz (all pixels, 2 Lane, 15 frame/s)
◆ Supports 720/60p, 1080/30p,
◆ Up/down and/or right/left inversion function
◆ Pixel subsampling readout function ◆ Image cutout function
◆ OTP ROM (One Time Programmable Read Only Memory) 128 bytes
◆ Power-on reset function
◆ Power-on sequence free
◆ Correction/compensation processing function (2D noise reduction)
