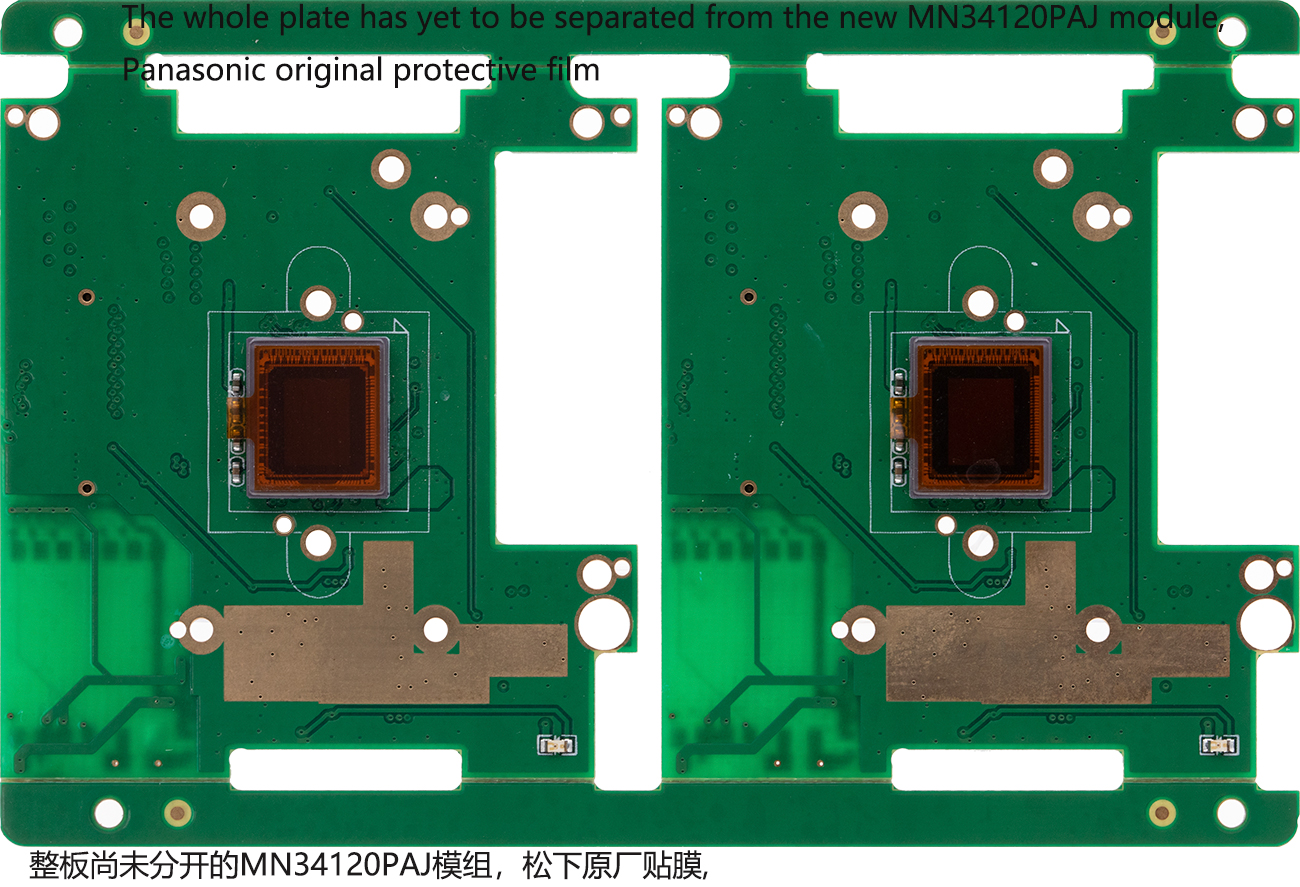

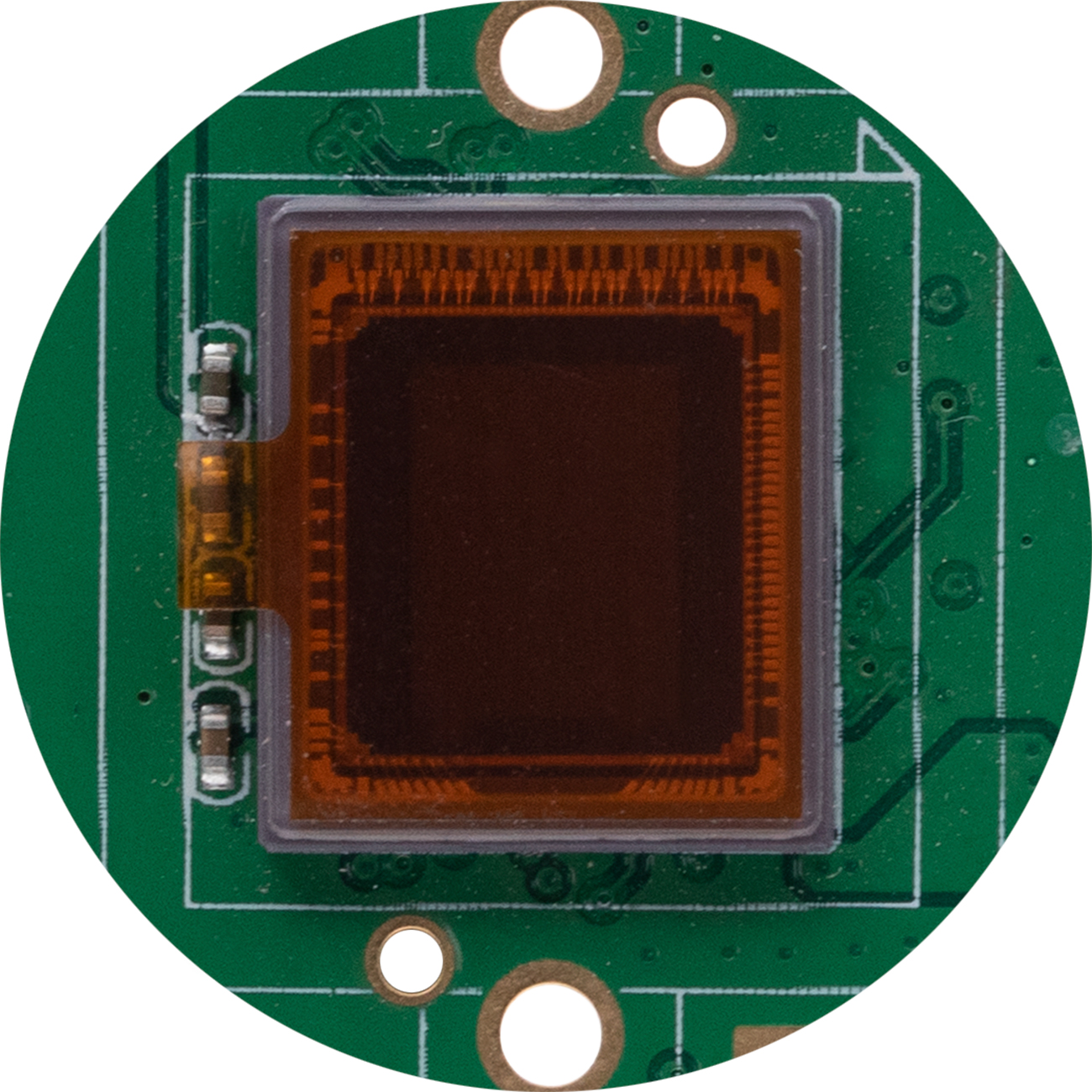

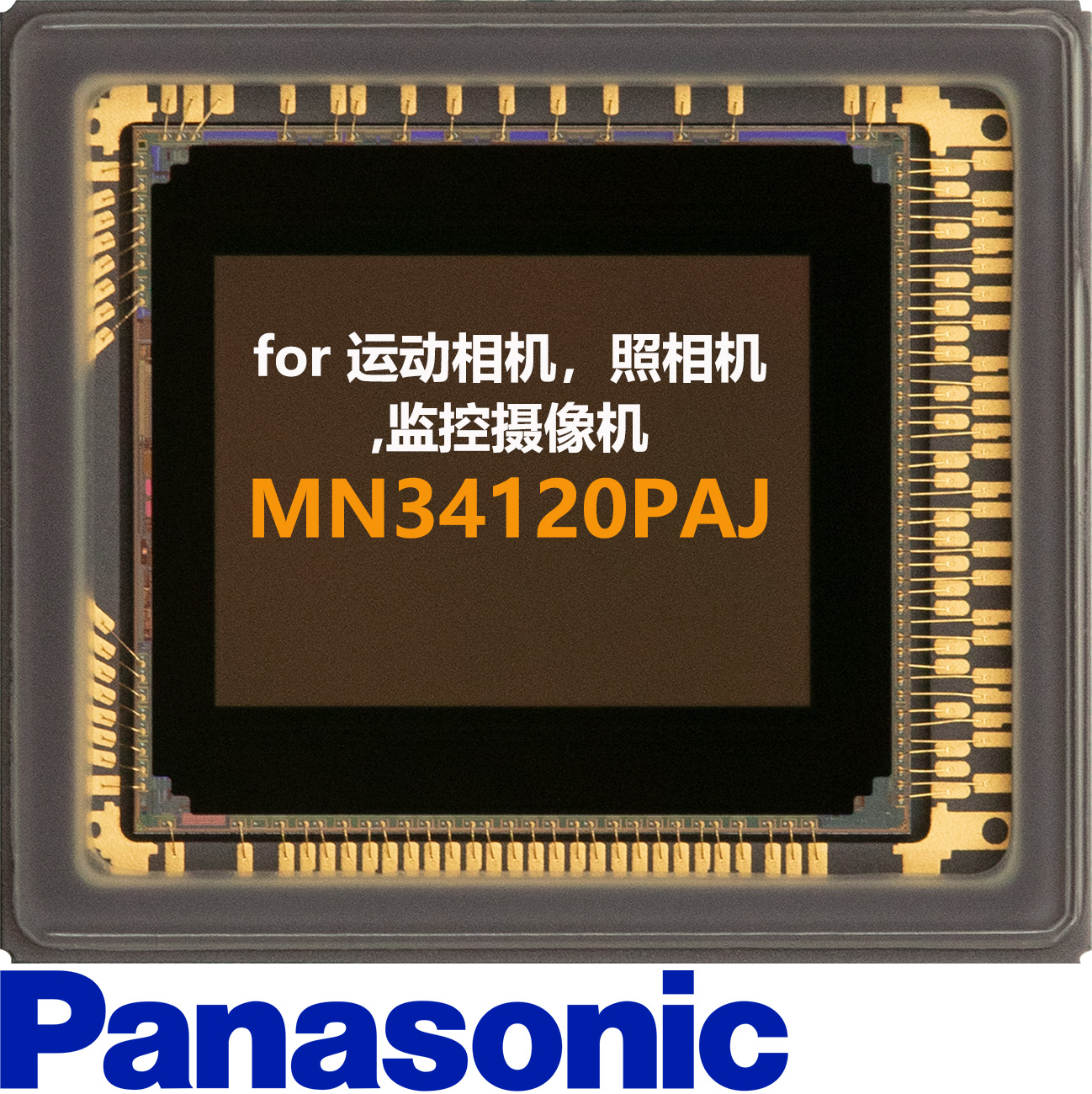

松下PanasonicMN34120PAJ模组,16MP,1600万像素工业相机运动相机Action Camera CMOS高清图像传感器,感光芯片SENSOR
2020-09-14 16:17:55
点击购买
松下Panasonic CMOS， MN34120PAJ深圳现货，1600万像素运动相机CMOS,16MP相机cmos，16mp工业相机sensor，松下安防CMOS，监控摄像机1080p60帧图像传感器，1080p@60fps CMOS，1/2.33-inch 4:3 sensor
■概述本产品为MOS型图像传感器，类型为1/2.33”16.37万像素。R,G,B原色马赛克滤镜用作颜色滤镜。在静止模式下，1637万像素的信号可以输出到高分辨率超高密度。FHD电影是通过垂直和水平混合实现的
■特性
参数/内容
扫描方式:渐进扫描
光学尺寸:1/2.33型4:3外观
有效像素数:4,660 (H) × 3,512 (V) = 16,365,920(像素)
活动像素数:4,632 (H) × 3,488 (V) = 16,156,416(像素)
总像素数:4,804 (H) × 3,648 (V) = 17,524,992(像素)
像素大小:1.335 (H)μm × 1.335 (V)μm
包装:LGA包装(陶瓷)
实际成像面积尺寸(活动像素面积):6183.72 (H)μm × 4656.48 (V)μm
滤色镜配置:R,G,B原色马赛克滤色镜
供电电压:3.3V / 1.8V / 1.2V
主时钟类型：54兆赫
输出信号类型:subblvds DDR method 648Mbps
注册器I/F:4线串行I/F
驱动方式: 全扫描1(1ch8port/12bit) 16fps: 4632H×3488V
满扫面2 (1 ch8port / 10位 ) 22 fps: 4632 h×3488 v
1080p模式(1ch6port/12bit) 60fps: 2314H×1304V
720p模式(1ch4port/12bit) 60fps: 1543H×872V
监控模式(1ch2port/12bit) 30fps: 1543H×496V
应用:
数码相机
摄像机
MN34120PA Data Sheet
■Overview
This product is MOS type image sensor of Type-1/2.33" 16.37 mega pixels. R,G,B primary color mosaic filters are used as the color filters. In the still mode, the signal of 16.37 mega pixels can be output to the high-resolution ultra-high-density. The FHD movie is achieved by vertical and horizontal mixing
■ Feature
Parameter / Content
Scan mode : Progressive scan
Optical size : 1/2.33 type 4:3 aspect
Number of effective pixels： 4,660 (H) × 3,512 (V) = 16,365,920 (pixel)
Number of active pixels : 4,632 (H) × 3,488 (V) = 16,156,416 (pixel)
Total number of pixels : 4,804 (H) × 3,648 (V) = 17,524,992 (pixel)
Pixel size ： 1.335 (H) μm × 1.335 (V) μm
Package ： LGA Package (Ceramics)
Actual imaging area dimensions (active pixel area) ：6183.72 (H) μm × 4656.48 (V) μm
Color filter arrangement ：R,G,B primary color mosaic filters
Power supply voltage ：3.3V / 1.8V / 1.2V
Master clock ：Type 54 MHz
Output signal type ：subLVDS DDR method 648 Mbps
Register I/F ：4-wire Serial I/F
Driving mode ：Full scan1(1ch8port/12bit) 16fps : 4632H×3488V
Full scan2(1ch8port/10bit) 22fps : 4632H×3488V
1080p mode(1ch6port/12bit) 60fps : 2314H×1304V
720p mode(1ch4port/12bit) 60fps : 1543H×872V
Monitor mode(1ch2port/12bit) 30fps : 1543H×496V
Application ：
Digital Still Camera
Camcorder
有关MN34120PA的价格，datasheet download免费下载，简介，PDF文档下载，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书下载，代理商，技术支持，产品介绍，参数，方案，分销，经销，官网，生产厂家，批量采购，模组，模块，特价，库存，哪里买，性价比，用途，封装厂，晶圆，代工，可咨询本公司
点击或者复制上面链接到浏览器打开，MN34120PA datasheet PDF file可免费下载，Click or copy the link to free download the datasheet PDF file.
满2件全国包邮，如果你有货，可以卖给我，当我求购MN34120PA，你需要购买MN34120PA，可以找我买。
Freight is free when you buy 2 pieces in China, if you have MN34120PA inventory, you can sell to me, if you need buy MN34120PA, you can ask me to buy.
