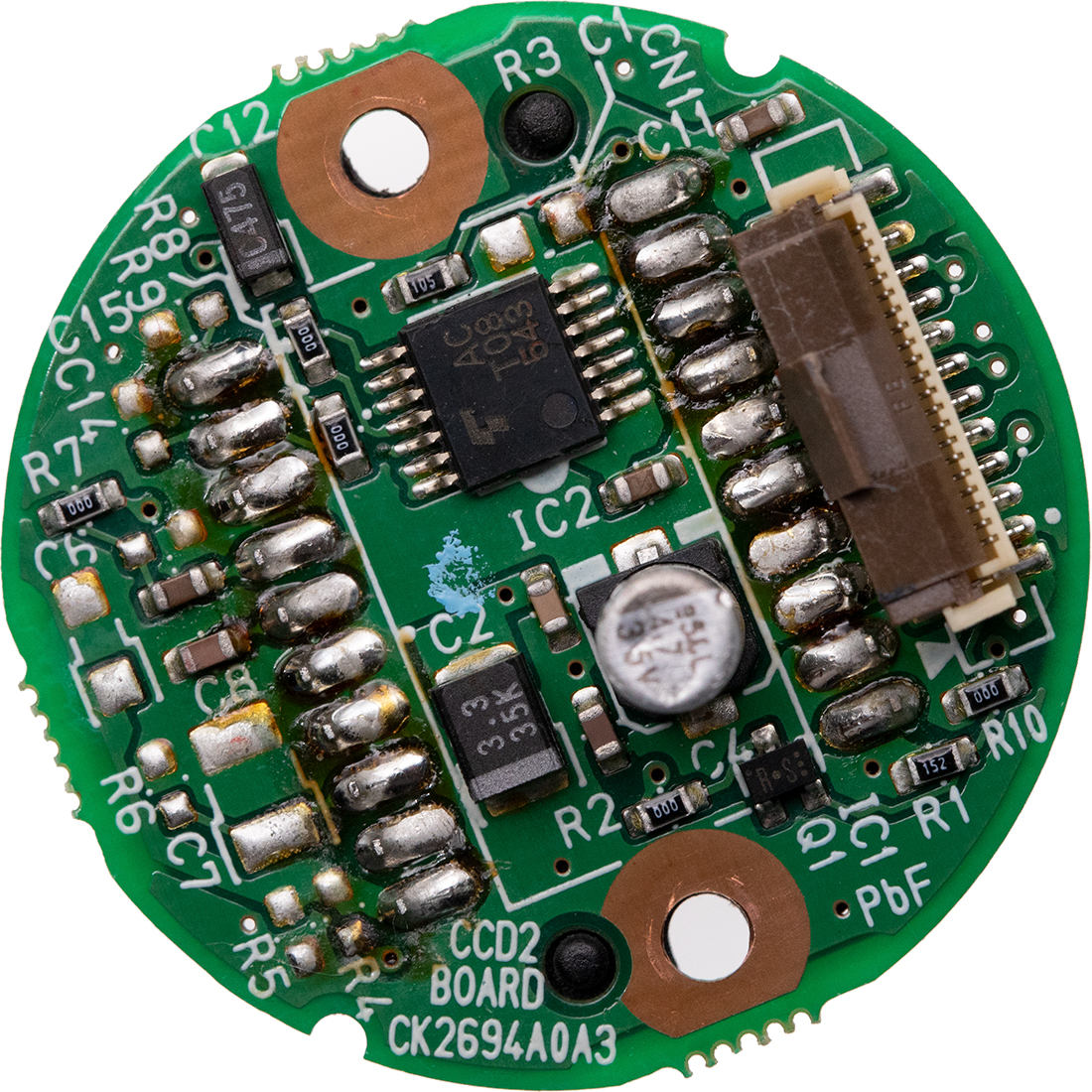

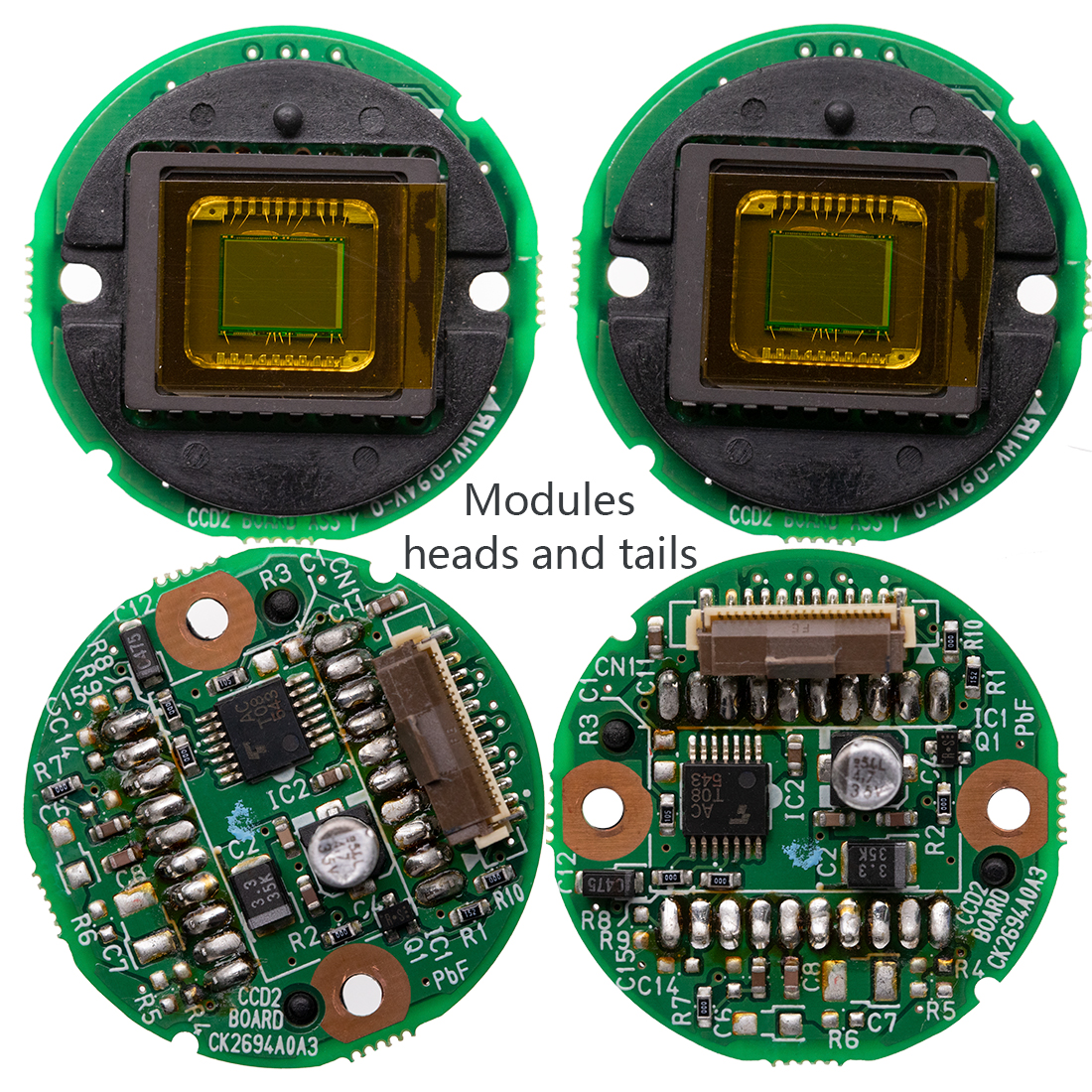

ICX429AKA索尼SONY 1/2 CCD模拟安防监控摄像机大靶面彩色图像传感器模组
2018-08-27 12:07:09
点击购买

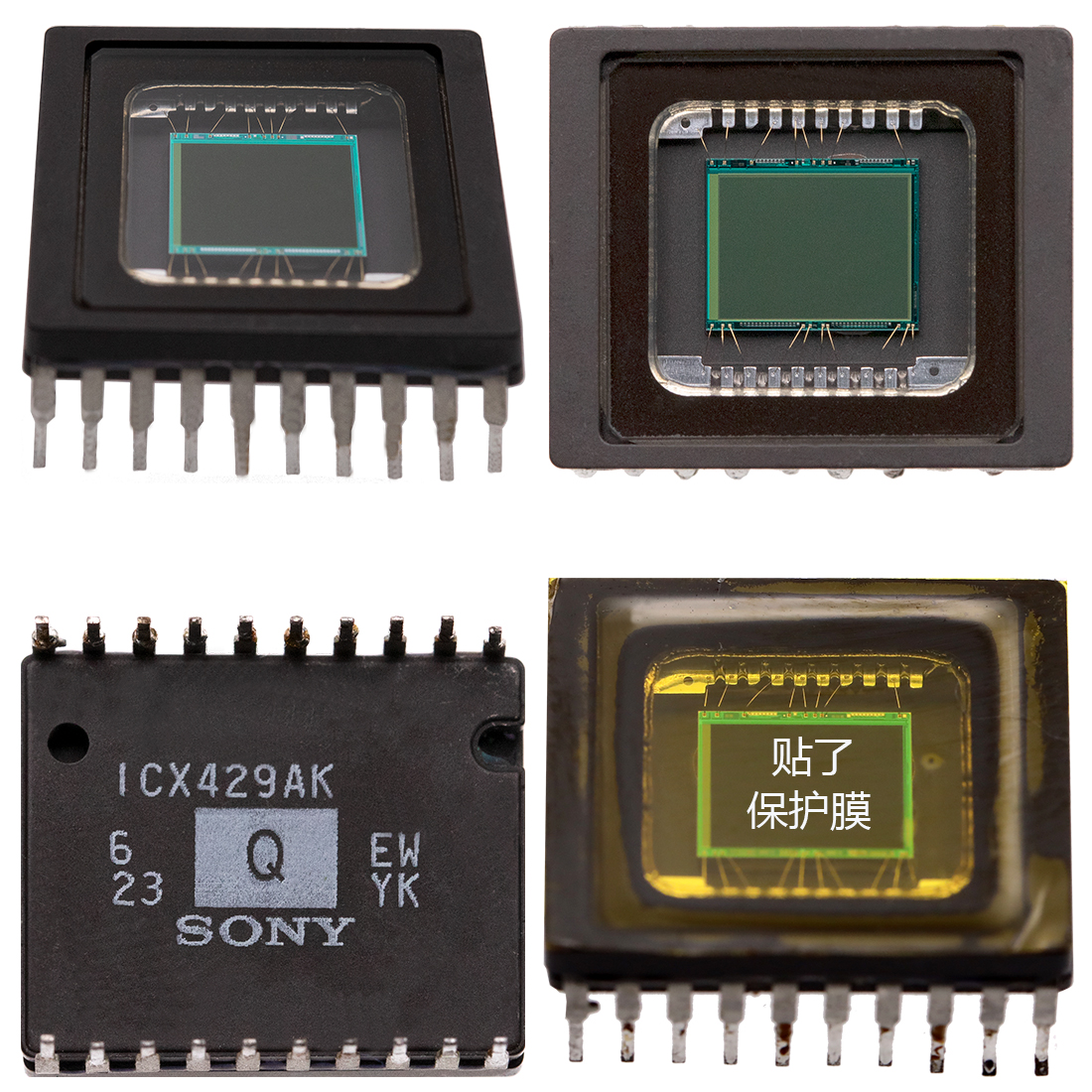

ICX429AKA索尼SONY 1/2" CCD模拟安防监控摄像机大靶面图像传感器模组
Features
• High sensitivity (-3dB compared with the ICX249AKL)
• Low smear +4dB compared with the ICX249AKL)
• High D range (-1dB compared with the ICX249AKL)
• High S/N
• High resolution and low dark current
• Excellent antiblooming characteristics
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Continuous variable-speed shutter
• Substrate bias: Adjustment free (external adjustment also possible with 6 to 14V) • Reset gate pulse: 5Vp-p adjustment free (drive also possible with 0 to 9V)
• Horizontal register: 5V drive
Device Structure
• Interline CCD image sensor
• Optical size : Diagonal 8mm (Type 1/2)
• Number of effective pixels : 752 (H) × 582 (V) approx. 440K pixels
• Total number of pixels : 795 (H) × 596 (V) approx. 470K pixels
• Chip size : 7.40mm (H) × 5.95mm (V)
• Unit cell size : 8.6µm (H) × 8.3µm (V)
• Optical black : Horizontal (H) direction: Front 3 pixels, rear 40 pixels
Vertical (V) direction: Front 12 pixels, rear 2 pixels
• Number of dummy bits : Horizontal 22
Vertical 1 (even fields only)
• Substrate material: Silicon
EXview HAD CCD is a trademark of Sony Corporation.
EXview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor.
ICX429AKA索尼索尼1/2 " CCD模拟安防监控摄像机大靶面彩色图像传感器模组
特性
•高灵敏度(与ICX249AKL相比-3dB)
•与ICX249AKL相比低涂片+4dB)
•高D量程(与ICX249AKL相比-1dB)
•高信噪比
•高分辨率和低暗电流
•优异的抗开花特性
•芯片上的Ye、Cy、Mg和G互补色马赛克滤光片
•连续变速快门
•复位门脉冲:5Vp-p调整免费(驱动也可以与0至9V)
•水平寄存器:5V驱动器
设备结构
•线间CCD图像传感器
•光学尺寸:对角线8mm(1/2型)
•有效像素数:752 (H) × 582 (V)约 440 k像素
•总像素数:795 (H) × 596 (V)约 470 k像素
•芯片尺寸:7.40mm (H) × 5.95mm (V)
•细胞大小:8.6µm (H) × 8.3µm (V)
•光学黑色:水平(H)方向:前3像素，后40像素
垂直(V)方向:前12像素，后2像素
•虚位数:水平22
垂直1(仅限偶数字段)
•基材:硅
EXview HAD CCD是索尼公司的商标。
EXview HAD CCD是将近红外光区作为HAD (hole - accumulate diode)传感器的基本结构，大大提高了光效的CCD。
