美国LUXIMA全系列高速工业相机LVDS输出CMOS图像传感器
2025-02-21 22:53:30
Image CMOS Image Sensors
（蓝色字体是有链接详情的，请点击查看，The blue text has the link details, please click to view）

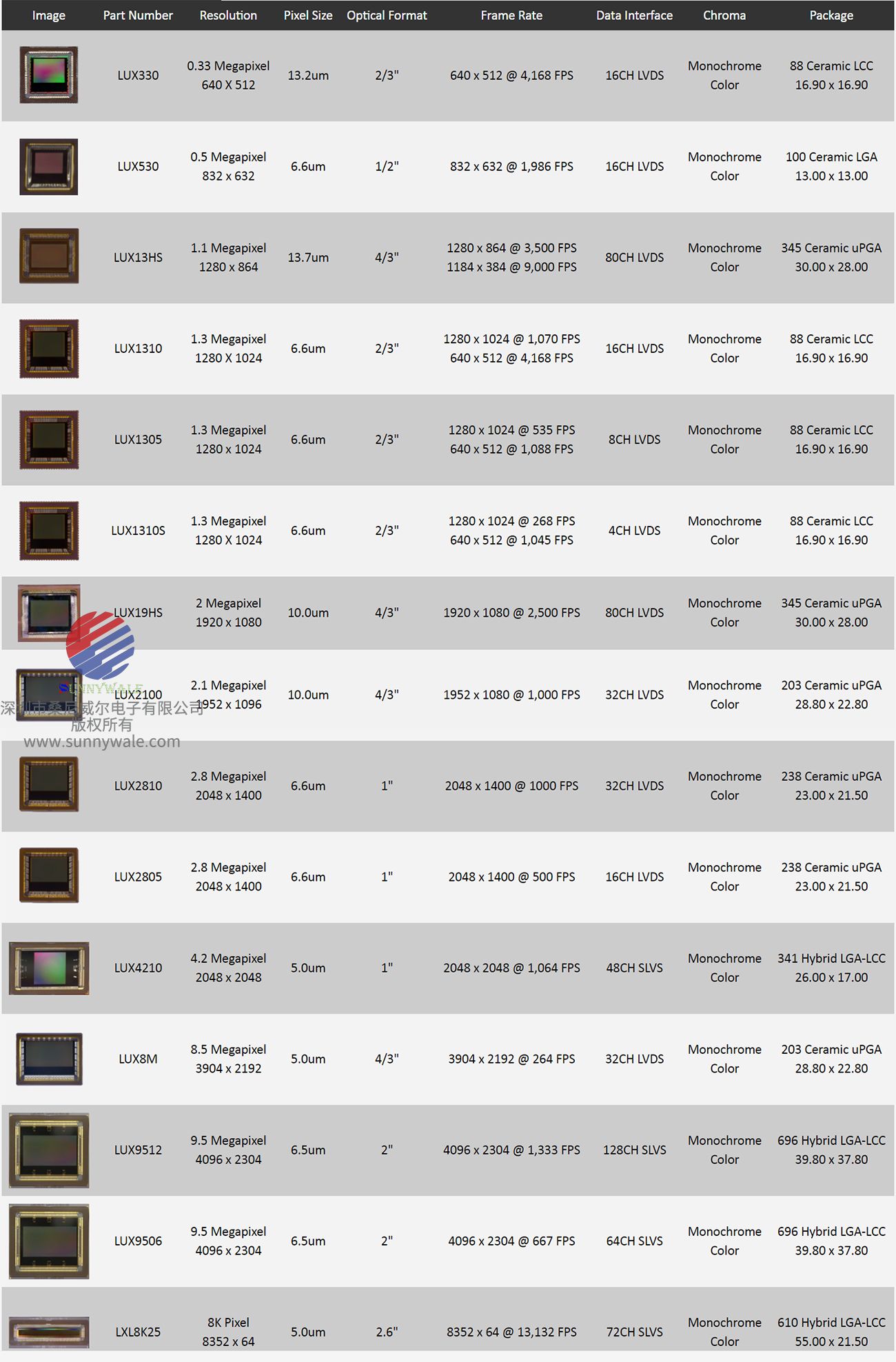

Part Number / Resolution / Pixel Size / Optical Format / Frame Rate / Interface / Chroma / Package Size
LUX330 / 0.33Megapixel 640 X 512 / 13.2um / 2/3" / 640 x 512 @ 4,168 FPS / 16CH LVDS / Monochrome,Color / 88pins Ceramic LCC 16.90 x 16.90mm
LUX530 / 0.5Megapixel 832 x 632 / 6.6um / 1/2" / 832 x 632 @ 1,986 FPS / 16CH LVDS / Monochrome,Color / 100pins Ceramic LGA,13.00 x 13.00mm
LUX13HS / 1.1Megapixe 1280 x 864 / 13.7um / 4/3" / 1280 x 864 @ 3,500 FPS / 1184 x 384 @ 9,000 FPS / 80CH LVDS / Monochrome,Color / 345pins Ceramic uPGA30.00 x 28.00mm
LUX1310 / 1.3Megapixel 1280 X 1024
/ 6.6um
/ 2/3"
/ 1280 x 1024 @ 1,070 FPS,640 x 512 @ 4,168 FPS
/ 16CH LVDS
/ Monochrome,Color
/ 88pins Ceramic LCC16.90 x 16.90mm
LUX1305 / 1.3Megapixel 1280 x 1024 / 6.6um / 2/3" / 1280 x 1024 @ 535 FPS,640 x 512 @ 1,088 FPS / 8CH LVDS / Monochrome,Color / 88pins Ceramic LCC16.90 x 16.90mm
LUX1310S / 1.3Megapixel 1280 X 1024 / 6.6um / 2/3" / 1280 x 1024 @ 268 FPS,640 x 512 @ 1,045 FPS / 4CH LVDS / Monochrome,Color / 88pins Ceramic LCC16.90 x 16.90mm
LUX19HS / 2Megapixel 1920 x 1080 / 10.0um / 4/3" / 1920 x 1080 @ 2,500 FPS / 80CH LVDS / Monochrome,Color / 345pins Ceramic uPGA 30.00 x 28.00mm
LUX2100 / 2.1Megapixel 1952 x 1096 / 10.0um / 4/3" / 1952 x 1080 @ 1,000 FPS / 32CH LVDS / Monochrome,Color / 203pins Ceramic uPGA28.80 x 22.80mm
LUX2810 / 2.8Megapixel 2048 x 1400 / 6.6um / 1" / 2048 x 1400 @ 1000 FPS / 32CH LVDS / Monochrome,Color / 238pins Ceramic uPGA23.00 x 21.50mm
LUX2805 / 2.8Megapixel 2048 x 1400 / 6.6um / 1" / 2048 x 1400 @ 500 FPS / 16CH LVDS / Monochrome,Color / 238pins Ceramic uPGA23.00 x 21.50mm
LUX4210 / 4.2Megapixel2048 x 2048 / 5.0um / 1" / 2048 x 2048 @ 1,064 FPS / 48CH SLVS / Monochrome,Color / 341pins Hybrid LGA-LCC26.00 x 17.00mm
LUX8M / 8.5Megapixel 3904 x 2192 / 5.0um / 4/3" / 3904 x 2192 @ 264 FPS / 32CH LVDS / Monochrome,Color / 203pins Ceramic uPGA28.80 x 22.80mm
LUX9512 / 9.5Megapixel 4096 x 2304 / 6.5um / 2" / 4096 x 2304 @ 1,333 FPS / 128CH SLVS Monochrome,Color / 696pins Hybrid LGA-LCC39.80 x 37.80mm
LUX9506 / 9.5Megapixel 4096 x 2304 / 6.5um / 2" / 4096 x 2304 @ 667 FPS / 64CH SLVS Monochrome,Color / 696pins Hybrid LGA-LCC39.80 x 37.80mm
LXL8K25 / 8KPixel 8352 x 64 / 5.0um / 2.6" / 8352 x 64 @ 13,132 FPS / 72CH SLVS / Monochrome,Color / 610pins Hybrid LGA-LCC55.00 x 21.50mm
