SONY CCD 模拟监控摄像机芯片方案
2022-09-14 13:59:43
索尼模拟摄像机芯片方案
SONY CCD介绍
镜头--CCD图像传感器--DSP
图像传感器规格表:

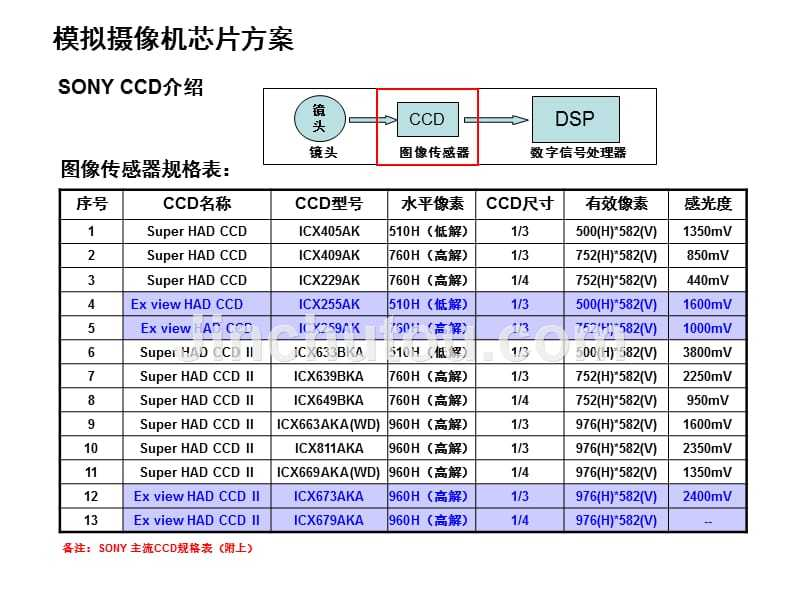

序号CCD名称 CCD型号 水平像素 CCD尺寸 有效像素 感光度
1 Super HAD CCD ICX405AK 510H(低解) 1/3 500(H)*582(V) 1350mV
2 Super HAD CCD
ICX409AK 760H (高解) 1/3 752(H)*582(V) 850mV
3 Super HAD CCD ICX229AK 760H (高解) 1/4 752(H)"582(V) 440mV
4 Ex view HAD CCD
ICX255AK 510H (低解) 1/3 500(H)*582(V) 1600mV
5 Ex view HAD CCD ICX259AK 760H(高解) 1/3 521(H)-582(V) 1000mV
6 Super HAD CCD II ICX633BKA 510H (低解) 1/3 500(H)*582(V) 3800mV
7 Super HAD CCD II ICX639BKA 760H (高解) 1/3 752(H)"582(V) 2250mV
8 Super HAD CCD II ICX649BKA 760H (高解) 1/4 752(H)*582(V)950mV
9 Super HAD CCD II
ICX663AKA(WD) 960H (高解) 1/3 976(H)"582(V) 1600mV
10 Super HAD CCD II
ICX810AKA 960H (高解) 1/3 976(H)"582(V)2350mV
11 Super HAD CCD II ICX811AKA 960H (高解) 1/3 976(H)"582(V)2350mV
12 Super HAD CCD II
ICX669AKA(WD)960H (高解) 1/4 976(H)*582(V)1350mV
13 Ex view HAD CCD II ICX673AKA 960H (高解) 1/3 976(H)*582(V) 2400mV
14 Ex view HAD CCD II
ICX679AKA 960H (高解) 1/4 976(H)*582(V)

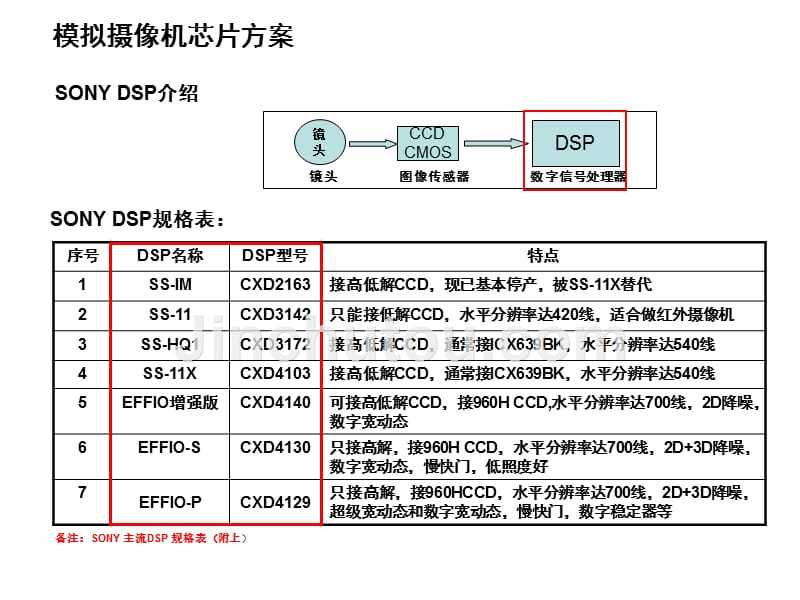

各注: SONY主流CCD规格表(附上)数字信号处理器
模拟摄像机芯片方案
SONY “EFFIO” 700线芯片方案
CCD--DSP；图像传感器--数字信号处理器
960H CCD Image Sensor DSP "Effio" Series
Super CCD HAD CCD
ICX662AKA NTSC 配套CXD4129GG，700线宽动态
ICX668AKA NTSC
Ex view HAD CCD
ICX663AKA NTSC 配套CXD4130GG/CXD4140GG，700线高解低照度
ICX673AKA PAL 配套CXD4130GG/CXD4140GG，700线高解低照度
