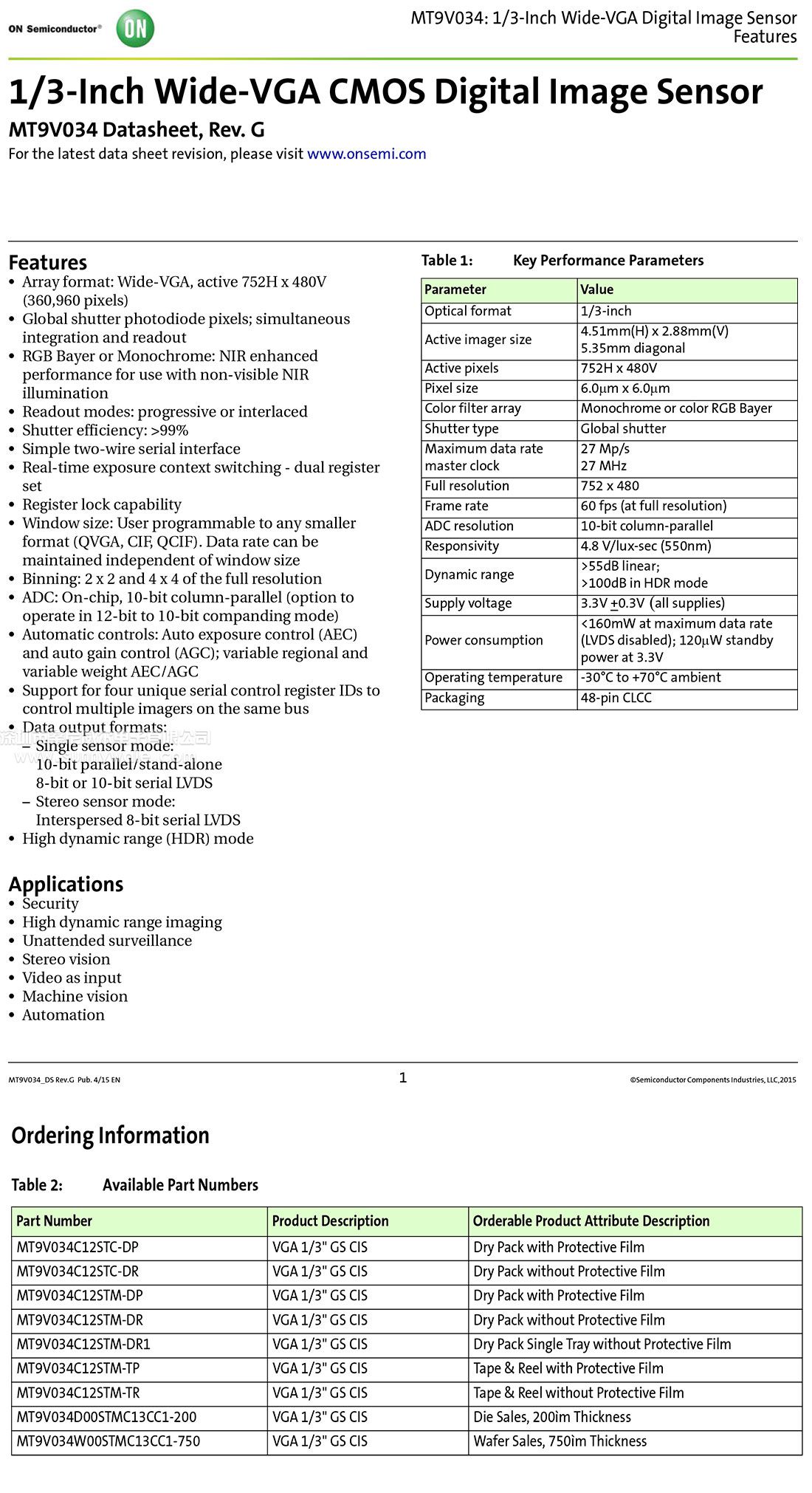

MT9V034 1/3-Inch Wide-VGA CMOS Digital Image Sensor Datasheet, Rev. G

特性
•阵列格式：宽VGA，Active 752H x 480V (360960像素)
•全局快门光电二极管像素；同时集成和读出
•RGB拜耳或单色：用于非可见近红外照明的近红外增强性能•读出模式:渐进或交错
•快门效率：99%•简单的二线串行接口
•实时曝光上下文切换-双寄存器设置
•寄存器锁定功能
•窗口大小：用户可编程任何较小的格式(QVGA, CIF, QCIF)。数据率可以保持独立的窗口大小
•装箱：2×2和4×4的完整分辨率
•ADC：芯片上，10位列并行(可选择12位到10位压缩模式)
•自动控制：自动曝光控制(AEC)和自动增益控制(AGC);可变区域和可变重量AEC/AGC
•支持四个独特的串行控制寄存器id来控制同一总线上的多个映像器
•数据输出格式：
-单传感器模式：10位并行/独立的8位或10位串行LVDS
-立体传感器模式：点缀的8位串行LVDS
•高动态范围(HDR)模式

应用，用途
•安防监控摄像机
•高动态范围成像
•无人值守监测
•立体视觉•视频作为输入
•机器视觉•自动化

参数      值
光学格式：1/3英寸
活动成像仪尺寸：4.51毫米(H) x2.88毫米(V)对角线5.35毫米
活动像素：752H x 480V
像素大小：6.0 x 6.0mm米m
彩色滤镜阵列：单色或彩色RGB拜耳
快门类型：全局快门
最大数据速率主时钟：27 Mp/s 27 MHz
全分辨率：752 x480
帧速率：60帧/秒(满分辨率)
ADC分辨率：10位列并行
响应率：4.8 V/lux-sec (550nm)
动态范围：55dB线性;在100分贝在HDR模式电源电压3.3 v + 0.3 v (所有供应)
功耗：最大数据速率160mW (LVDS禁用);120年mW备用电源在3.3 v
工作温度：-30℃~ +70℃
封装：48-pin闭环化油器控制


Features
• Array format: Wide-VGA, active 752H x 480V (360,960 pixels)
• Global shutter photodiode pixels; simultaneous integration and readout
• RGB Bayer or Monochrome: NIR enhanced performance for use with non-visible NIR illumination • Readout modes: progressive or interlaced
• Shutter efficiency: >99% • Simple two-wire serial interface
• Real-time exposure context switching - dual register set
• Register lock capability
• Window size: User programmable to any smaller format (QVGA, CIF, QCIF). Data rate can be maintained independent of window size
• Binning: 2 x 2 and 4 x 4 of the full resolution
• ADC: On-chip, 10-bit column-parallel (option to operate in 12-bit to 10-bit companding mode)
• Automatic controls: Auto exposure control (AEC) and auto gain control (AGC); variable regional and variable weight AEC/AGC
• Support for four unique serial control register IDs to control multiple imagers on the same bus
• Data output formats: – Single sensor mode: 10-bit parallel/stand-alone 8-bit or 10-bit serial LVDS – Stereo sensor mode: Interspersed 8-bit serial LVDS
• High dynamic range (HDR) mode

Applications
• Security
• High dynamic range imaging
• Unattended surveillance
• Stereo vision • Video as input
• Machine vision • Automation

Parameter             Value
Optical format :         1/3-inch
Active imager size:       4.51mm(H) x 2.88mm(V) 5.35mm diagonal
Active pixels:            752H x 480V
Pixel size:               6.0mm x 6.0mm
Color filter array :         Monochrome or color RGB Bayer
Shutter type:            Global shutter
Maximum data rate master clock :  27 Mp/s 27 MHz
Full resolution :          752 x 480
Frame rate:             60 fps (at full resolution)
ADC resolution:          10-bit column-parallel
Responsivity :            4.8 V/lux-sec (550nm)
Dynamic range:         >55dB linear; >100dB in HDR mode Supply voltage 3.3V +0.3V (all supplies)
Power consumption:       <160mW at maximum data rate (LVDS disabled); 120mW standby power at 3.3V
Operating temperature:    -30°C to +70°C ambient

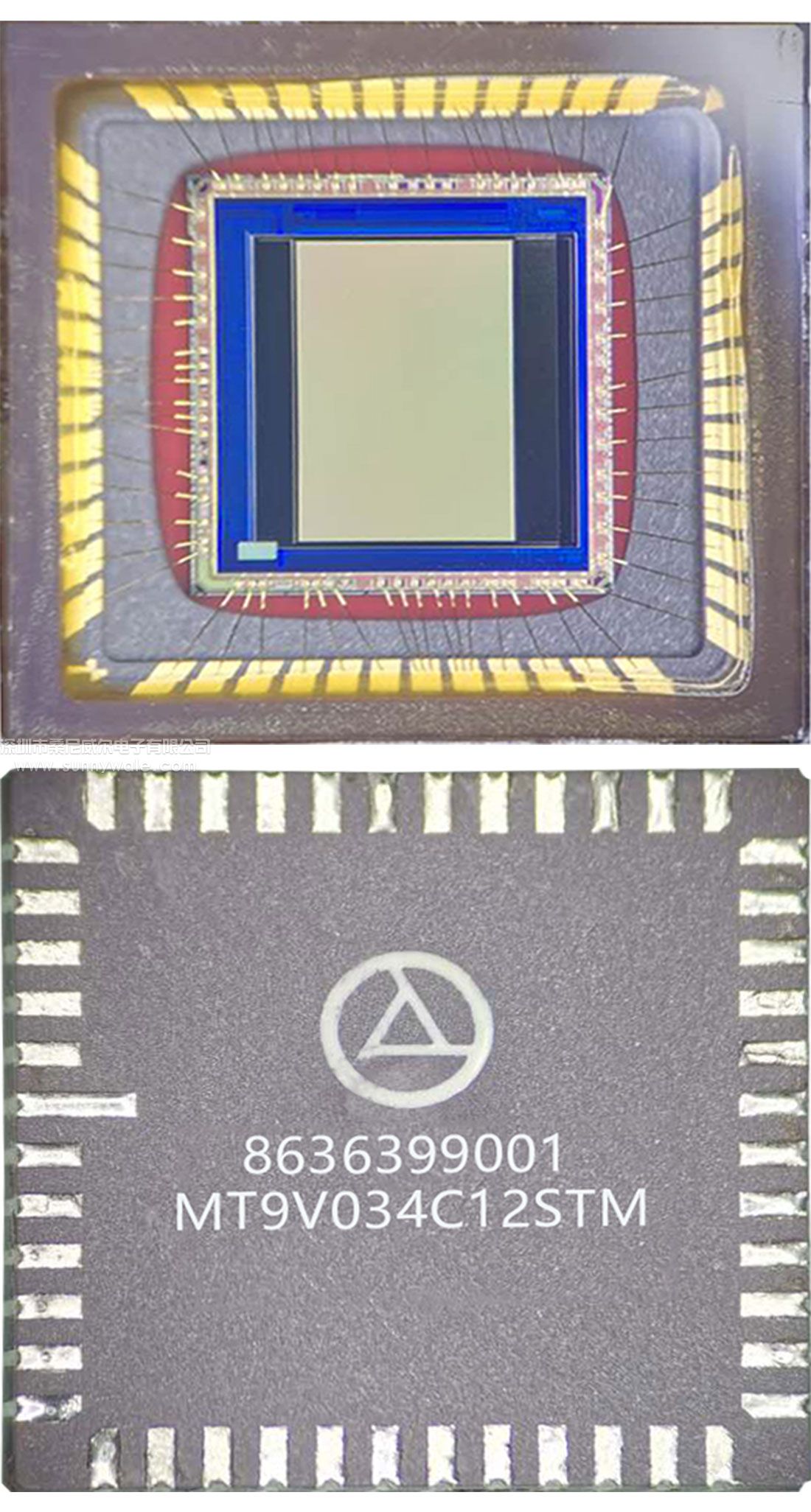

Packaging:                  48-pin CLCC

Ordering Information
Table 2: Available Part Numbers
Part Number             Product Description      Orderable Product Attribute Description
MT9V034C12STC-DP ,         VGA 1/3" GS CIS ,                        Dry Pack with Protective Film
MT9V034C12STC-DR,         VGA 1/3" GS CIS ,                        Dry Pack without Protective Film
MT9V034C12STM-DP,         VGA 1/3" GS CIS ,                        Dry Pack with Protective Film
MT9V034C12STM-DR,         VGA 1/3" GS CIS,                        Dry Pack without Protective Film
MT9V034C12STM-DR1,      VGA 1/3" GS CIS  ,                       Dry Pack Single Tray without Protective Film
MT9V034C12STM-TP,         VGA 1/3" GS CIS ,                        Tape & Reel with Protective Film
MT9V034C12STM-TR,         VGA 1/3" GS CIS ,                       Tape & Reel without Protective Film
MT9V034D00STMC13CC1-200,  VGA 1/3" GS CIS ,                Die Sales, 200ìm Thickness
MT9V034W00STMC13CC1-750,  VGA 1/3" GS CIS ,               Wafer Sales, 750ìm Thickness



有关MT9V034的价格，datasheet download免费下载，简介，PDF文档下载，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书下载，代理商，技术支持，产品介绍，参数，方案，分销，经销，官网，生产厂家，批量采购，模组，模块，特价，库存，哪里买，性价比，用途，封装厂，晶圆，代工，可咨询本公司

另有1.3MP单色：MT9M001C13STM，请点击详情
