AR0237IRSH12SHRA0-DR ON 1/2.7in 2MP 60fps HiSPi接口安防监控摄像机图像传感器
产品概述
AR0237 RGB-IR: 2mp 1/2.7" RGB-IR CMOS图像传感器
有关完整的文档，请参阅数据说明书的AR0237 RGB-IR 1/2.7-inch CMOS数字图像传感器的有源像素阵列1928 (H) x 1088 (V)。它捕获在线性或高动态范围图像模式滚动式帘子读出,并包括复杂的相机功能,比如inpixel装箱,窗口视频和单帧模式。它设计了低光和高动态范围的场景性能，并通过一个简单的两线串行接口可编程的AR0237 RGB-IR集成能力白天的颜色成像和夜间近红外线成像传感器不需要机械IR-cut过滤器可以大声,大,导致调整问题和维护成本,适合家庭安全及其他监测应用照明条件可以改变大大在相机预计工作的时候。
特性
※ 优越的微光性能
※ 具有双重转换增益的DR-PIX (TM)技术
※ 支持最高1080p 60fps的全高清，以获得卓越的视频性能
※ 线性或高动态范围捕捉
※ 片上锁相环(PLL)振荡器
※ 支持线交错T1/T2读出，支持ISP芯片HDR处理
※ 支持外部机械百叶窗
※ 基于位置的颜色和镜头遮光校正
※ 精确帧率控制的从属模式
※ 立体声/3D摄像机支持
有关更多特性，请参阅官网数据表
应用程序
※ 视频监控
※ 1080p60(监控)视频应用
※ 高动态范围成像
※ 家庭安防
终端产品
※ 监控摄像头
※ 门铃相机
※ 小相机
※ 家庭安全摄像头

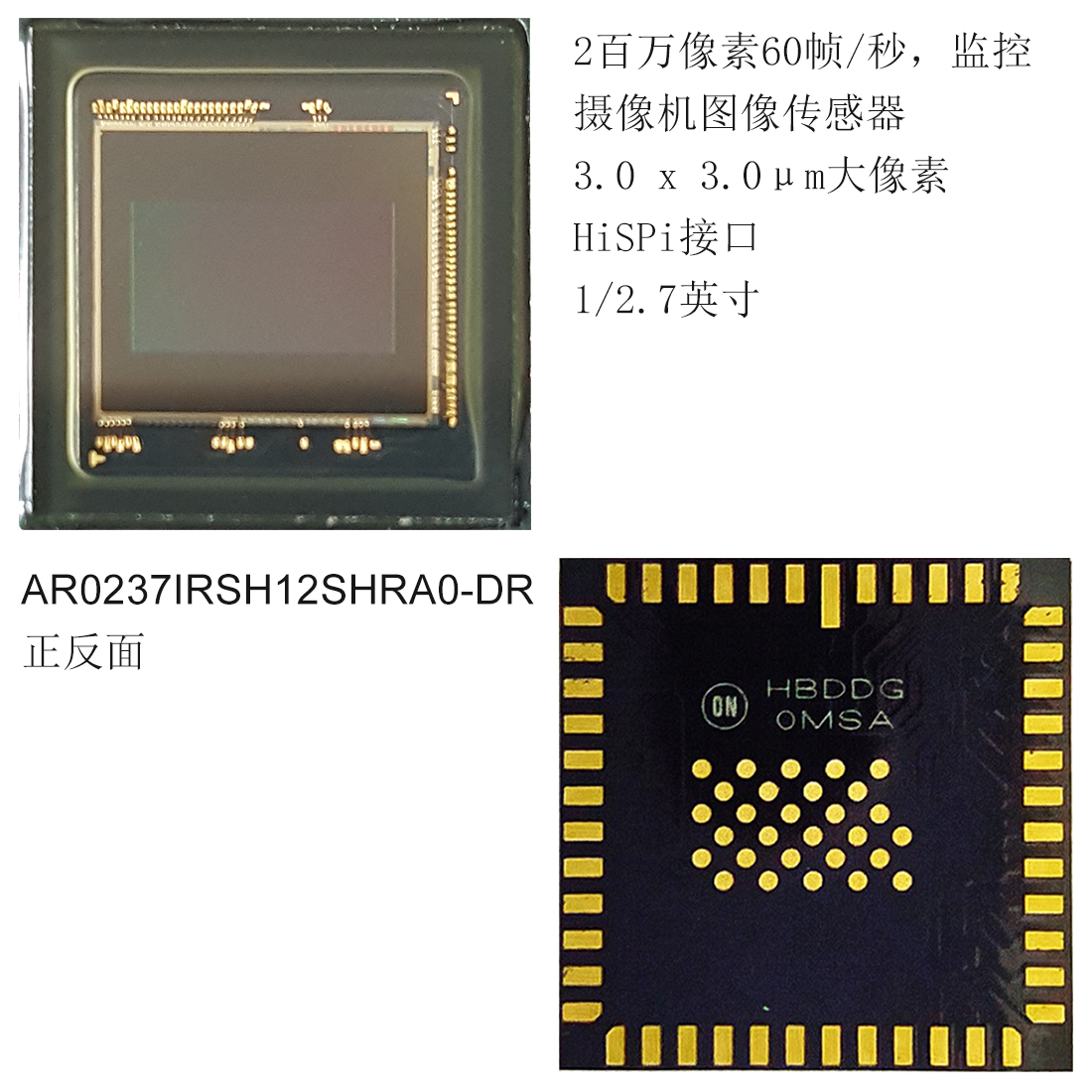

AR0237IRSH12SHRA0-DR，无铅，无卤化物CMOS 2Mega Pixel 60fps, 1/2.7英寸，电子滚动和整体复位释放，像素大小:3.0 x 3.0μm，输出
接口:HiSPi，色彩：RGB-IR ；封装：PLCC48
Product Overview
AR0237 RGB-IR: 2 MP 1/2.7" RGB-IR CMOS Image Sensor
For complete documentation, see the data sheet
The AR0237 RGB-IR is a 1/2.7-inch CMOS digital image sensor with an active-pixel array of 1928 (H) x 1088 (V). It captures images in either linear or high dynamic range modes with a rolling-shutter readout, and includes sophisticated camera functions such as inpixel binning, windowing and both video and single frame modes. It is designed for both low light and high dynamic range scene performance, and is programmable through a simple two-wire serial interface. The AR0237 RGB-IR integrates the ability to take daytime color imaging and nighttime near-IR imaging in one sensor without the need for a mechanical IR-cut filter which can be loud, large, cause refocusing issues and expensive to maintain , and ideal for home security and other monitoring applications where lighting conditions can change drastically during the times when the camera is expected to work.
Features
※ Superior low-light performance
※ DR-PIX (TM) technology with Dual Conversion Gain
※ Full HD support at up to 1080p 60 fps for superior video performance
※ Linear or high dynamic range capture
※ On-chip phase-locked loop (PLL) oscillator
※ Supports line interleaved T1/T2 readout to enable HDR processing in ISP chip
※ Support for external mechanical shutter
※ Integrated position-based color and lens shading correction
※ Slave mode for precise frame-rate control
※ Stereo/3D camera support
For more features, See the official website data sheet
Applications
※ Video surveillance
※ 1080p60 (Surveillance) video applications
※ High dynamic range imaging
※ Home security
End Products
※ Surveillance camera
※ Door Bell camera
※ Baby camera
※ Home security camera
AR0237IRSH12SHRA0-DR，Pb-free，Halide free CMOS 2mega 60fps, 1/2.7 inch ,Electronic Rolling and Global Reset Release，Pixel Size：3.0 x 3.0μm， Output
Interface：HiSPi RGB-IR, PLCC48
