PTK15-Q24-D15美国Bel旗下品牌CUI V-INFINITY韩国生产全新原装进口DC-DC Converter power supply高效率直流转直流隔离通信(ITE)电源转换器模组，六面EMI屏蔽抗干扰
2022-01-09 13:45:16
点击购买
全新PTK15-Q24-D15，韩国原装进口电源模块，CUI宽快电压输入电源模块，全新V-INFINITY出品电源模组， DC-DC Converter转换器， DC/DC power supply，高效率隔离电源模块，直流转直流电源转换器模块，恒定开关频率开关电源，六面EMI屏蔽电源，过压过流保护电源，高效率开关稳压器，无需散热器的DC-DC开关电源，CUI INC power supply,Bel DC-DC通信电源模块,ITE DC-DC电源模组
PART NUMBER: PTK15 series
Features
· Industry standard pin out
· Wide 4:1 input range
· Complete input-output isolation
· Over-current protection
· Over-voltage protection
· Six-sided EMI shielding
· Constant switching frequency
· High efficiency
· Compact size : 2.0”x2.0”x0.4”(inch)
· 3 year warranty
型号:PTK15系列
特性
· 行业标准引脚
· 宽4:1输入范围
· 输入-输出完全隔离
· 过电流保护
· 过电压保护
· 六面EMI屏蔽
· 恒定开关频率
· 效率高
· 2.0 x 2.0 x 0.4（inch）紧凑的尺寸
· 3年保修
Model① Output Input Output Output Ripple & noise② Efficiency(type)
number max power voltage voltage max current mV P-P
-------------------------------------------------------------------------------------------------------------------------------------------------------
PTK15-Q24-S3 13.2W 10-36VDC 3.3VDC 4.0A 75 80%
PTK15-Q24-S5 15.0W 10-36VDC 5VDC 3.0A 75 85%
PTK15-Q24-S12 15.0W 10-36VDC 12VDC 1.25A 120 86%
PTK15-Q24-S15 15.0W 10-36VDC 15VDC 1.0A 150 84%
PTK15-Q24-D5 15.0W 10-36VDC ±5VDC 1.5A 50/50 85%
PTK15-Q24-D12 15.0W 10-36VDC ±12VDC 0.625A 120/120 87%
PTK15-Q24-D15 15.0W 10-36VDC ±15VDC 0.5A 150/150 87%
PTK15-Q24-T312 12.39W 10-36VDC 3.3VDC/±12VDC 2.0A/0.31A 50/120/120 83%
PTK15-Q24-T512 15.0W 10-36VDC 5VDC/±12VDC 1.5A/0.31A 50/120/120 84%
PTK15-Q24-T315 12.45W 10-36VDC 3.3VDC/±15VDC 2.0A/0.25 50/150/150 83%
PTK15-Q24-T515 15.0W 10-36VDC 5VDC/±15VDC 1.5A/0.25A 50/150/150 84%
PTK15-Q48-S3 13.2W 20-72VDC 3.3VDC 4.0A 75 80%
PTK15-Q48-S5 15.0W 20-72VDC 5VDC 3.0A 75 85%
PTK15-Q48-S12 15.0W 20-72VDC 12VDC 1.25A 120 87%
PTK15-Q48-S15 15.0W 20-72VDC 15VDC 1.0A 150 87%
PTK15-Q48-D5 15.0W 20-72VDC ±5VDC 1.5A 50/50 85%
PTK15-Q48-D12 15.0W 20-72VDC ±12VDC 0.625A 120/120 86%
PTK15-Q48-D15 15.0W 20-72VDC ±15VDC 0.5A 150/150 87%
PTK15-Q48-T312 12.39W 20-72VDC 3.3VDC/±12VDC 2.0A/0.31A 50/120/120 83%
PTK15-Q48-T512 15.0W 20-72VDC 5VDC/±12VDC 1.5A/0.31A 50/120/120 84%
PTK15-Q48-T315 12.45W 20-72VDC 3.3VDC/±15VDC 2.0A/0.25A 50/150/150 83%
PTK15-Q48-T515 15.0W 20-72VDC 5VDC/±15VDC 1.5A/0.25A 50/150/150 84%
注：上述型号中，仅此PTK15-Q24-D15有货，其它缺货。
Among the above models, only PTK15-Q24-D15 is available, while other models are out of stock
NOTE:
①. All models are also available in an extended temperature range of -40°C~85°C. For these models,
append “M” to the model number, e.g. PTK15-Q24-D15M.
②. Ripple & noise measured with a 20MHz bandwidth, off a 10uF electrolytic and a 0.1uF ceramic cap in parallel at the
ouptut.
注意:
①。所有型号也可在扩展的温度范围-40°C~85°C。对于这些型号，型号后面加“M”为M版本，如PTK15-Q24-D15M。
②。纹波和噪声测量与20MHz带宽，关闭10uF电解电容和0.1uF陶瓷帽在输出端并联。

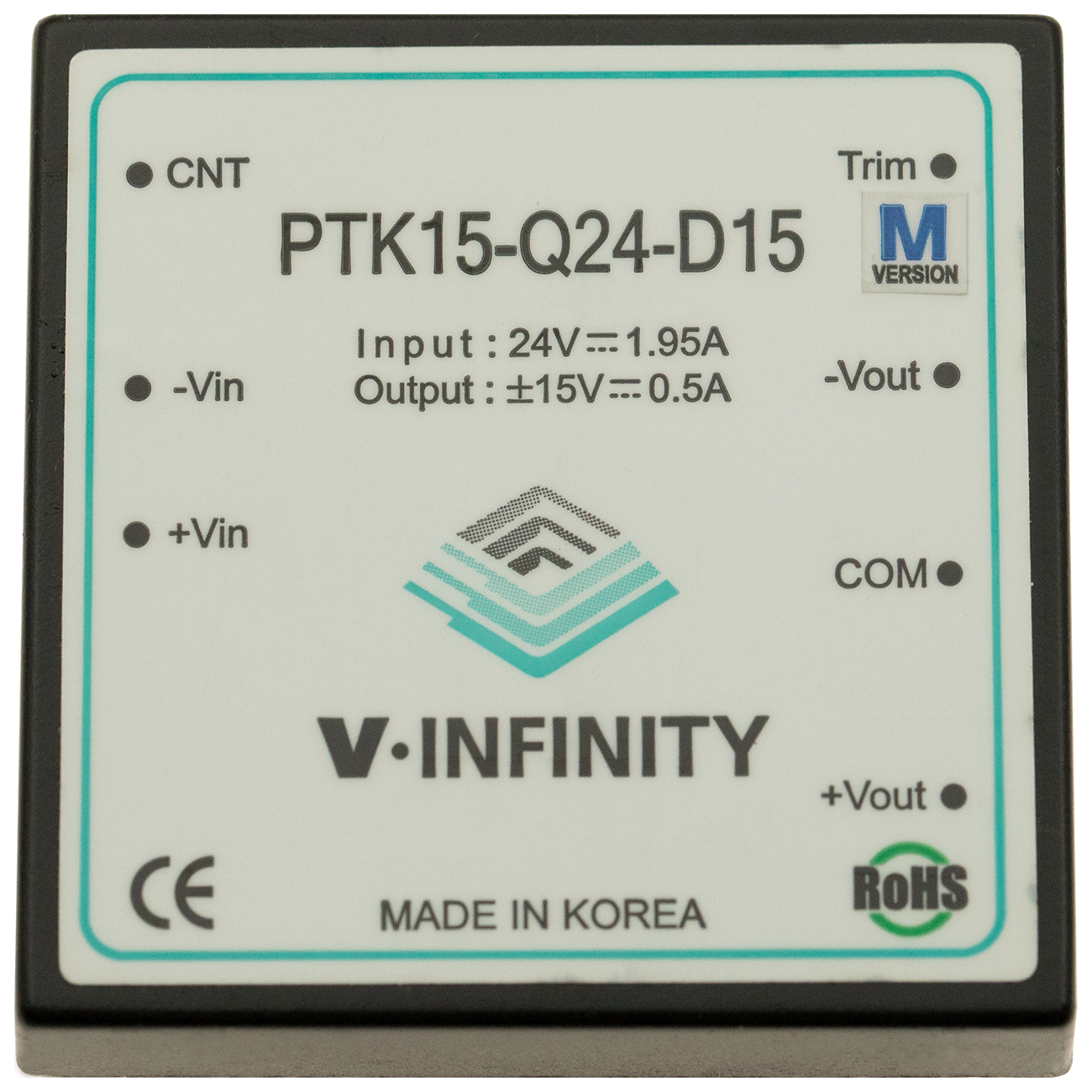

PIN Definitions
+Vin: Input positive terminal
-Vin: Input negative terminal
CNT: Remote On/Off control of output voltage. Referenced to-Vin
+Vout: Main output positive terminal
-Vout: Output negative terminal
+Vaux: Positive auxiliary output
-Vaux: Negative auxiliary output
Com: Common node for dual- or triple-output models
Trim: For trimming output voltage on single- or dual-output models
引脚的定义：
+ Vin: 输入正极
- Vin: 输入负极
CNT: 远程开关控制输出电压。引用to-Vin
+Vout: 主输出正极
输出电压: 输出负极
+Vaux: 正极的辅助输出
-Vaux: 负极辅助输出
Com: 双输出或三输出型号的公共节点
修剪:用于修剪单输出或双输出型号上的输出电压
Product Information
Detailed Description：Isolated Module DC DC Converter 1 Output 12V 1.25A 10V - 36V Input
Part Status : Obsolete
Power (Watts) : 15W
Current Output (Max): 0.5A

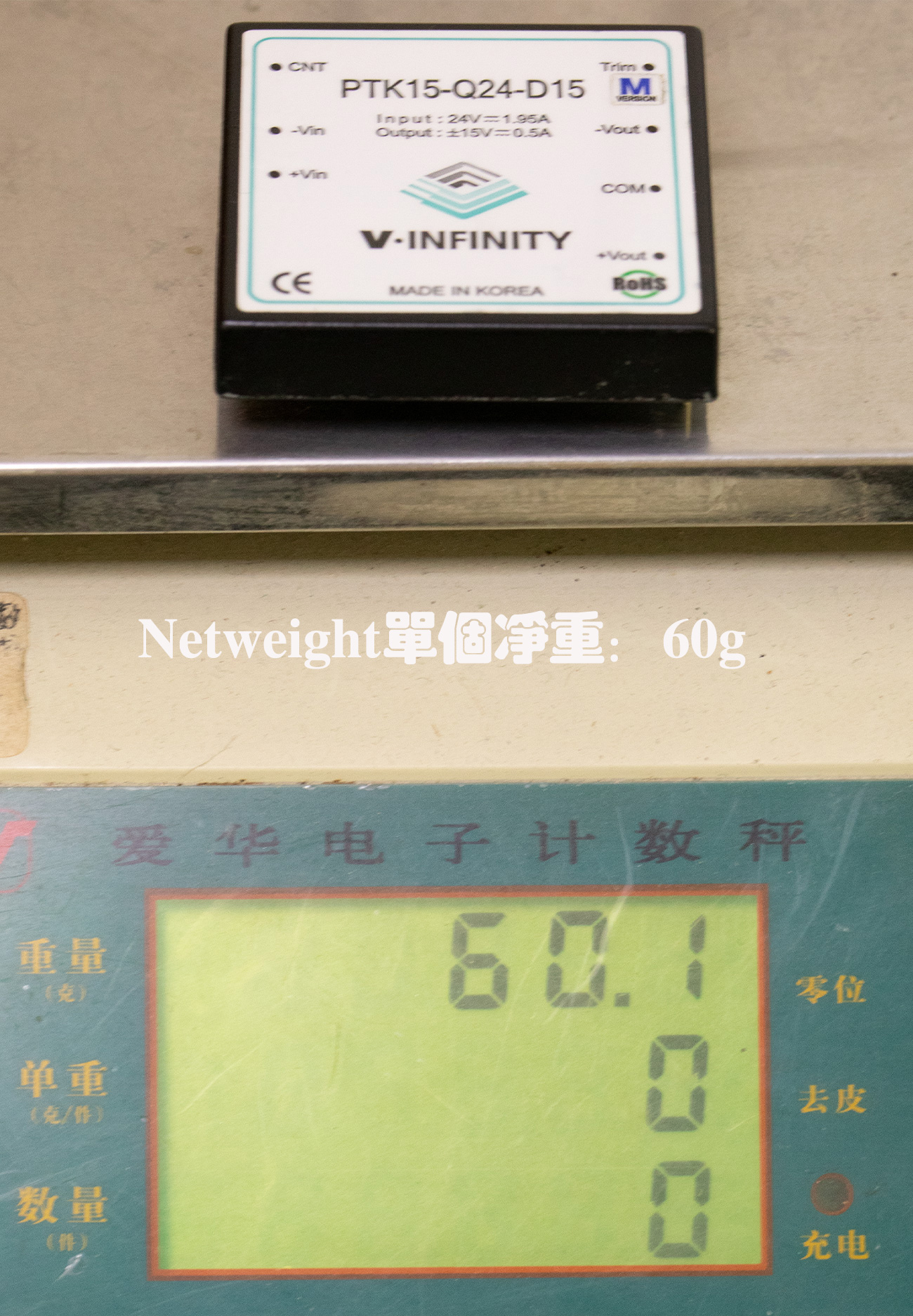

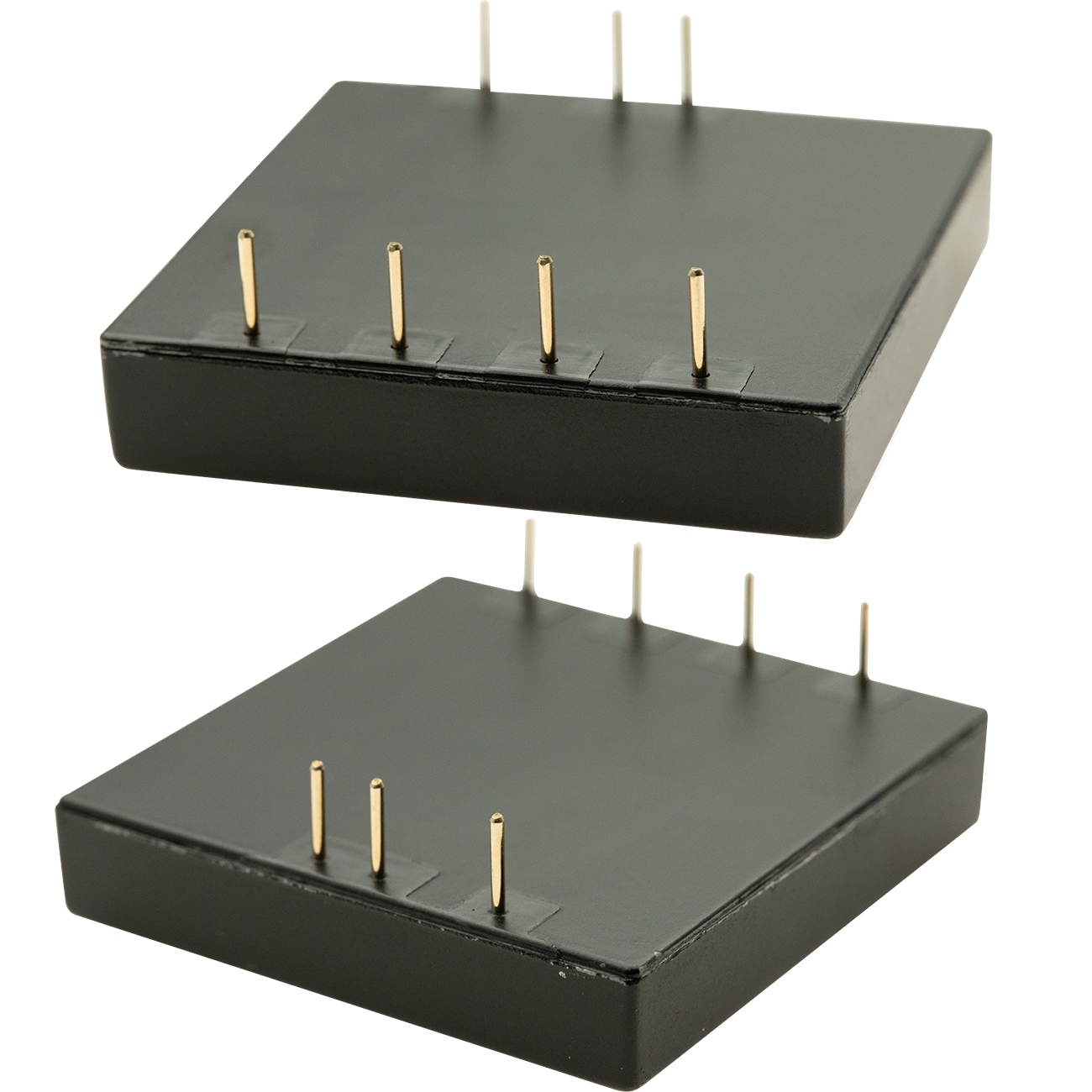

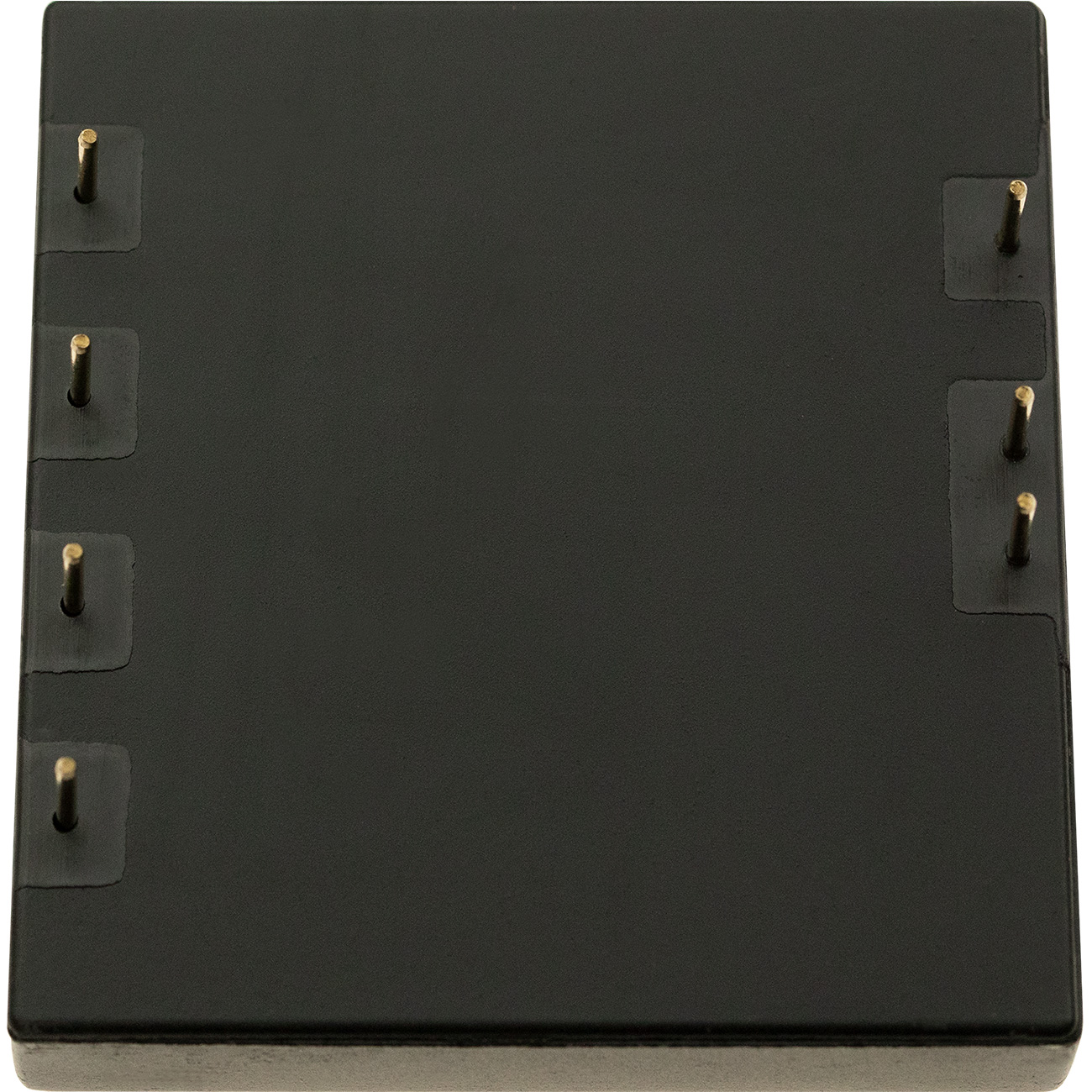

Package Case :7-DIP Module, 7 Leads
Voltage Input :10-36VDC
Type : Isolated Module
Efficiency : 87%
Voltage Output 1 : ±15VDC
Applications : ITE (Information Technology Equipment，Commercial)
Manufacturer : CUI Inc.
Control Features : Enable, Active High
Number Of Outputs: 1
Size Dimension : 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Voltage Isolation : 500V
Features : Remote On/Off, OCP, OVP
Mounting Type : Through Hole
Series : PTK15 (15W)
Operating Temperature : -20°C ~ 71°C
Packaging :Box
规格系列：PTK15 Series
标准型号: PTK15-Q24-D15M

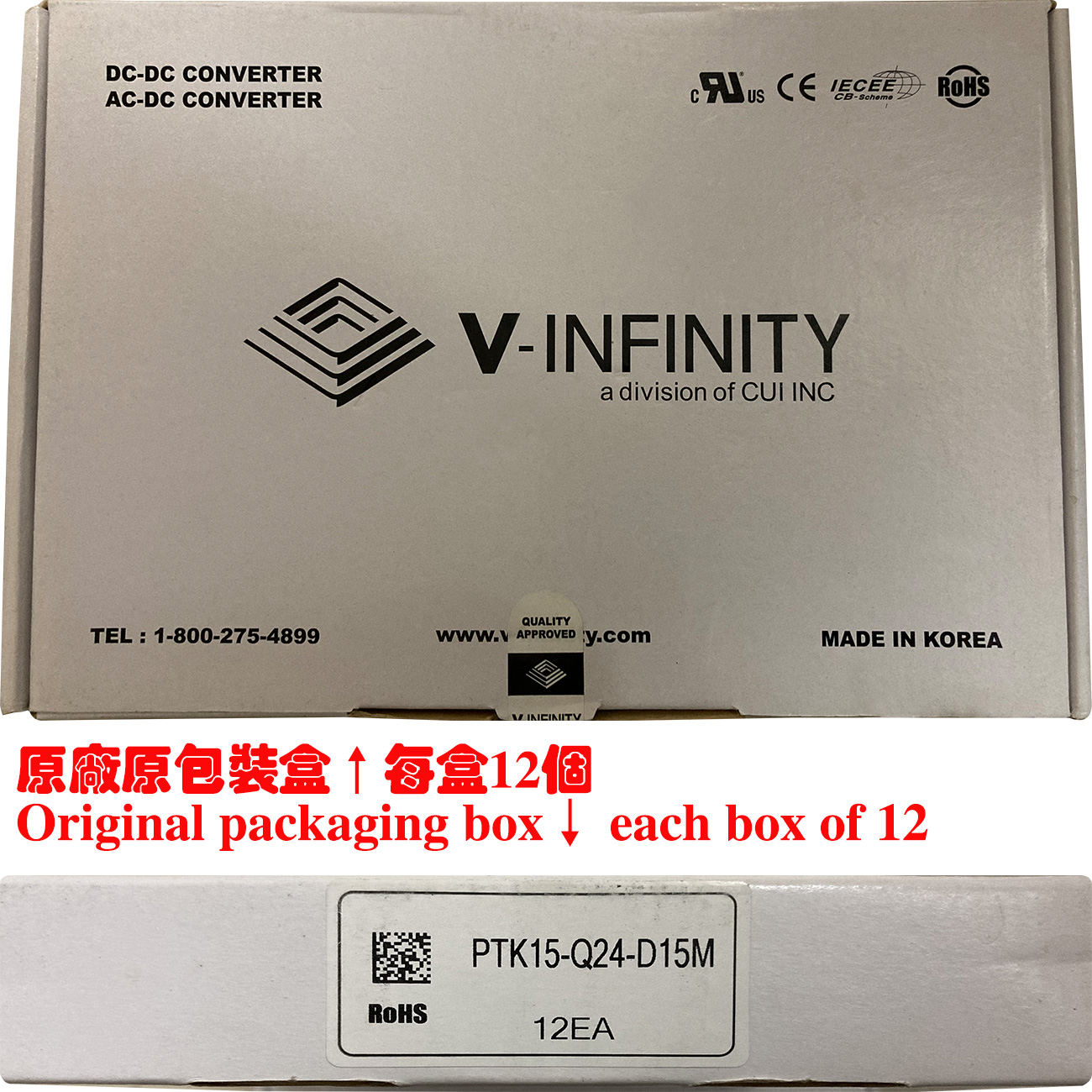

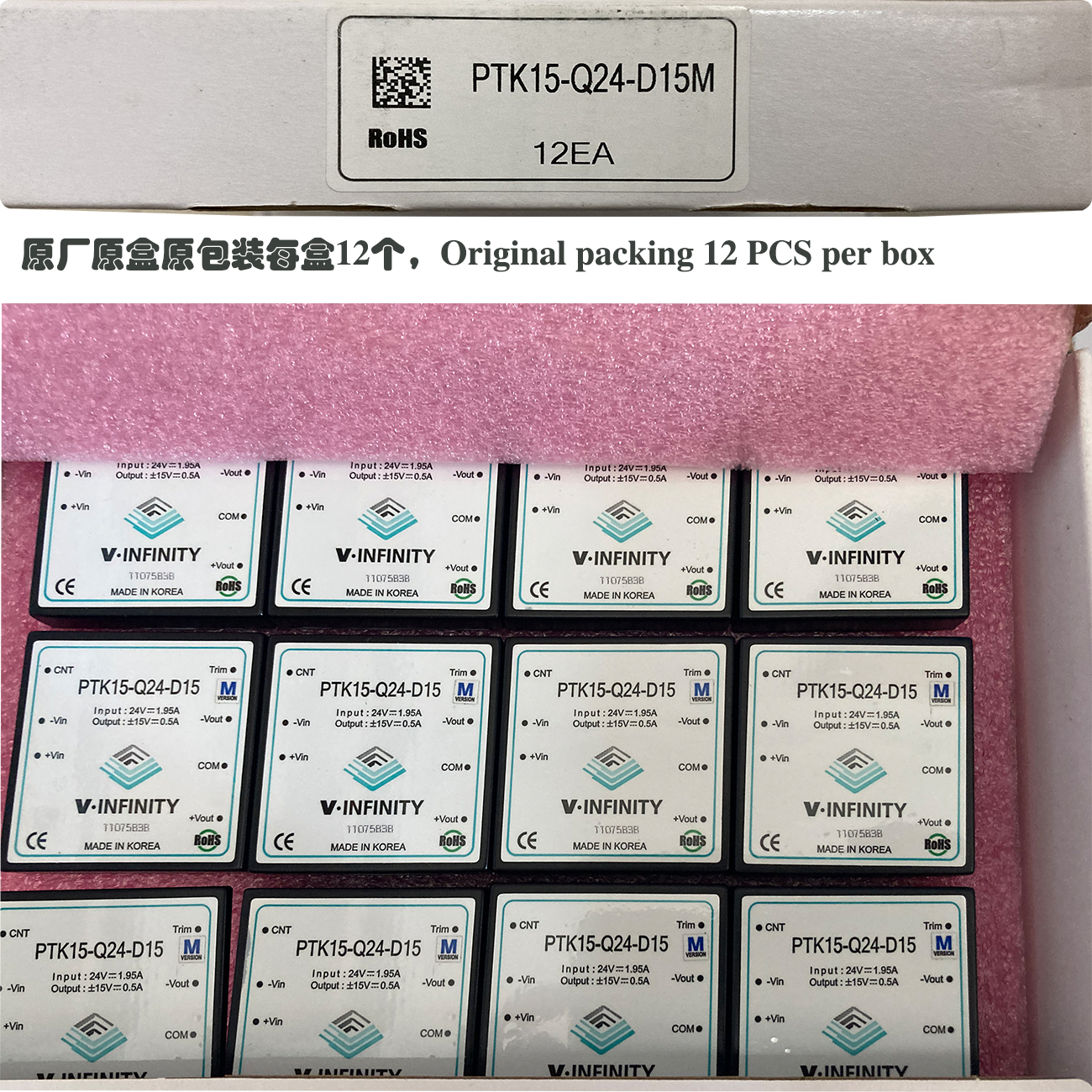

标准包装：12个
内部类型：Isolated Module
输出组数：2
输入电压：10VDC（最小值）
输入电压：36VDC（最大值）
输出电压：±15VDC
电流输出：0.5A（最大）
输出功率：15W
隔离电压：500V
安装类型：Through Hole
封装外形：7-DIP Module
封装尺寸：2.00x 3.00 x 0.40-inch (50.8mm x 50.8mm x 10.2mm)
封装材料：Plastick
工作温度: -20°C ~ 71°C
工作效率：87%
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10V
Voltage - Input (Max) 36V
Voltage - Output ±15VDC
Current - Output (Max) 0.5A
Power (Watts) - Manufacture Series 15W
Voltage - Isolation 500V
品牌介绍：
CUI Inc 是美国Bel(贝尔) 集团公司，其股票在纳斯达克交易所交易，代码为 BELFA 和 BELFB。V-INFINITY是其品牌之一，电源行业，在美国属于龙头老大。
Bel成立于 1949 年，致力于设计、制造和销售广泛系列的电子电路的电源、保护装置和连接产品。凭借超过70年的经验，贝尔在各种产品领域都证明了其成功的能力。
CUI Inc America is a Bel Group of companies whose shares are traded on nasdaq under the symbols BELFA and BELFB. V-infinity is one of its brands, power industry, in America belongs to the leader.
Founded in 1949, Bel designs, manufactures and markets a wide range of power supplies, protection devices and connection products for electronic circuits. With over 70 years of experience, Bel has reliably demonstrated the ability to succeed in a variety of product areas.
有关PTK15-Q24-D15M的价格，datasheet免费下载，简介，文档，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书，代理商，技术支持，产品介绍，参数，方案，分销，经销，官网，生产厂家，批量采购，模组，模块，特价，库存，哪里买，性价比，用途，封装厂，晶圆，代工，可咨询本公司

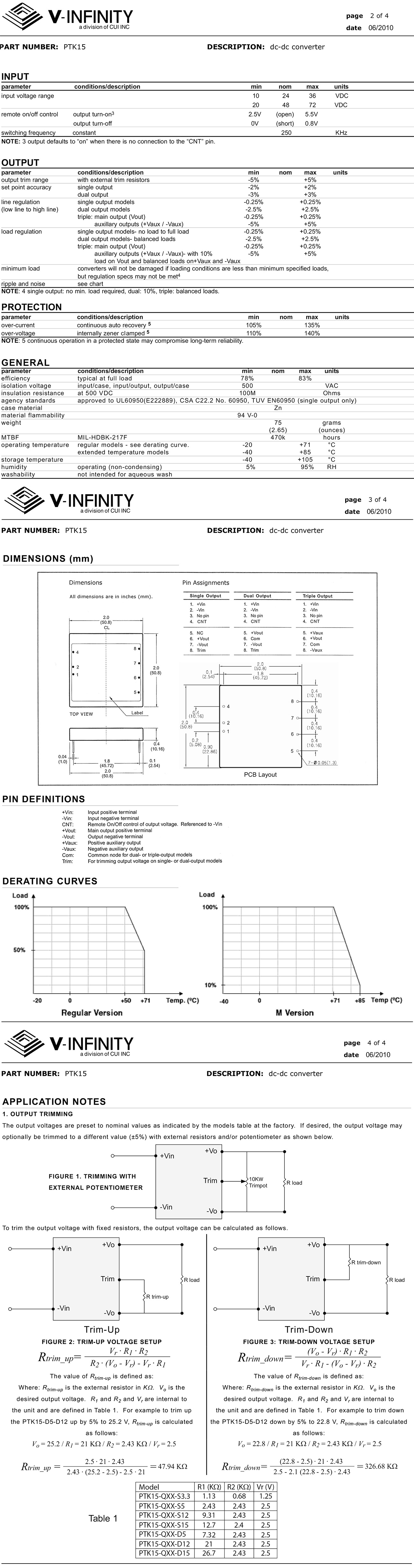

https://www.sunnywale.com/uploadfile/2022/0109/PTK15 Series_Awin.pdf点击或者复制上面链接到浏览器打开，PTK15-Q24-D15M datasheet PDF file可免费下载，Click or copy the link to free download the datasheet PDF file.
满2件全国包邮，如果你有货，可以卖给我，当我求购PTK15-Q24-D15M，你需要购买PTK15-Q24-D15M，可以找我买。
Freight is free when you buy 2 pieces in China, if you have PTK15-Q24-D15M inventory, you can sell to me, if you need buy PTK15-Q24-D15M, you can ask me to buy.
