WL1835MODGBMOCR TI德州仪器2.4G Wifi & Bluetooth蓝牙共存的一套双模双天线通信解决方案模组块
2020-07-14 19:02:42
点击购买
原装原厂全新产品，放心采购，放心使用，假一赔百。
器件概述:

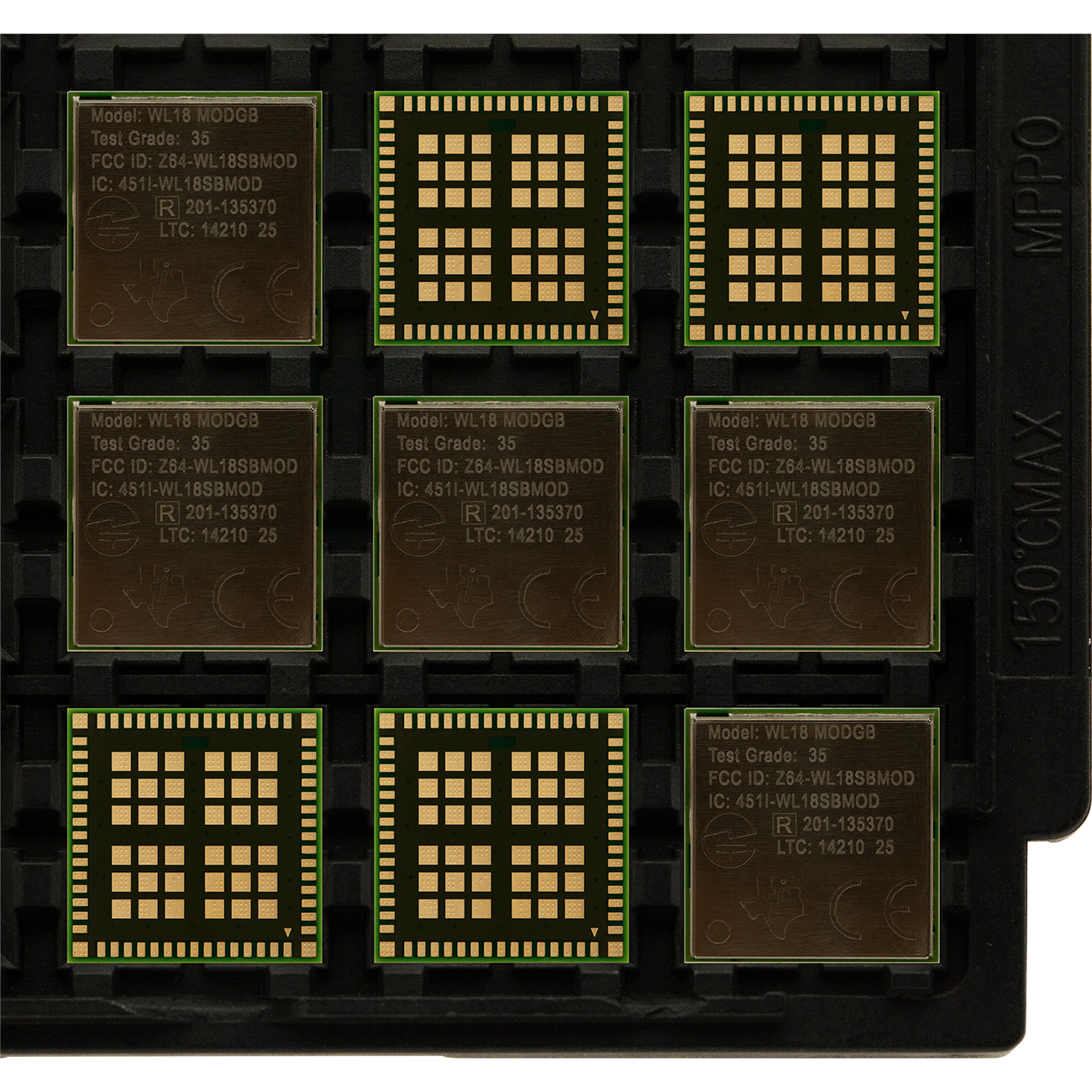

WL1835MODGBMOCR支持Wi-Fi和Bluetooth共存的一套2.4GHz模块双天线解决方案
1,特性:
A常规说明：
*集成了射频(RF)、功率放大器(PA)、时钟、RF开关、滤波器、无源器件和电源管理单元
*可利用TI 模块配套资料和参考设计实现快速硬件设计，
*工作温度：–20°C 至70°C,
*小封装尺寸：13.3mm x 13.4mm x 2mm,
*100 引脚MOC 封装,
*经FCC，IC，ETSI/CE 和TELEC 认证的芯片天线，
B，Wi-Fi：
*支持IEEE 标准802.11a、802.11b、802.11g 和802.11n 的WLAN 基带处理器和RF 收发器,
*2.4GHz 20MHz 和40MHz 单输入单输出(SISO), 以及2.4GHz 20MHz 2 x 2 多输入多输出, (MIMO)，针对高数据吞吐量：80Mbps(TCP)，100Mbps (UDP),
*2.4GHz 最大比合并(MRC)，支持扩展范围,
*完全校准：无需生产校准,
*4 位SDIO 主机接口支持,
* Wi-Fi 直接并发运行（多通道、多用途）,
C，Bluetooth 和BLE（仅适用于WL183xMOD）:
*支持Bluetooth 4.1 和CSA2,
*主机控制器接口(HCI) 传输，用于通过通用异步收发器(UART) 进行的Bluetooth 传输
*支持子带(SBC) 编码+ 高级音频传输协议(A2DP) 的专用音频处理器,
*双模Bluetooth 和BLE,
*Bluetopia + LE 认证堆栈（由TI 提供）
D,主要优势:
*减少设计开销
*通过在两极（STA 和AP）上同时配置WiLink8，可将差别化的使用案例直接连接至不同RF 通道（Wi-Fi 网络）上的其它Wi-Fi 器件,
*用于高性能音频和视频流参考应用的一流Wi-Fi，覆盖范围高达单根天线的1.4 倍,
*提供多种配置方法，可一步将室内设备连接至Wi-Fi,
*连接空闲时最低Wi-Fi 功耗(< 800μA),
* WLAN 滤波器上只将系统唤醒的可配置唤醒,
* Wi-Fi-Bluetooth 单天线共存
2,应用范围:
*物联网
*工业和家庭自动化
*多媒体
*智能网关和仪表计量
*家用电子产品
*视频会议
*家用电器和大型家电*视频摄像机和安防器材
3,说明
TI 经认证的WiLink 8 模块采用功率优化设计，可提供高数据吞吐量和扩展范围，并且支持Wi-Fi 和Bluetooth 共存（只适用于WL1835MOD）。WL18x5MOD 器件是一套2.4GHz 模块双天线解决方案。该器件经FCC、IC、ETSI/CE 和TELEC 认证，适用于接入点(AP) 和客户端。TI 为Linux®、Android™、WinCE 和RTOS 等高级操作系统提供了驱动程序。
Device overview:
1,Features:
A. general instructions:
* Integrated RF, power amplifier (PA), clock, RF switch, filter, passive device and power management unit,
* Rapid hardware design can be realized by using TI module supporting data and reference design.
* Working temperature: - 20 ° C to 70 ° C,
* Small package size: 13.3mm x 13.4mm x 2mm,
*100 pin MOC packaging,
* by the FCC, IC, ETSI/CE and TELEC authentication chip antenna,
B, Wi-Fi:
* Support for IEEE standard 802.11a, 802.11b, 802.11g and 802.11n WLAN baseband processors and RF transceivers
* 2.4ghz 20MHz and 40MHz single-input/single-output (SISO), 2.4ghz 20MHz 2 x 2 multi-input/multi-output (MIMO), for high data throughput: 80Mbps (TCP), 100Mbps (UDP),
* 2.4ghz maximum ratio merger (MRC) to support extension scope.
* Complete calibration: no production calibration is required.
* 4-bit SDIO host interface support.
* Direct and concurrent wi-fi operation (multi-channel, multi-purpose),
C, Bluetooth and BLE (for WL183xMOD only) :
* Support Bluetooth 4.1 and CSA2,
* Host controller interface (HCI) transport for Bluetooth transport through the universal asynchronous transceiver (UART)
* special audio processor supporting sub-band (SBC) coding + advanced audio transmission protocol (A2DP)
* dual-mode Bluetooth and BLE,
* Bluetopia + LE authentication stack (provided by TI)
D, Main advantages:
* reduce design overhead
* By configuring WiLink8 at the same time at the poles (STA and AP), differential use cases can be directly connected to other wi-fi devices on different RF channels (wi-fi networks).
* First-class wi-fi for high-performance audio and video streaming reference applications that cover up to 1.4 times the range of a single antenna,
* multiple configuration methods are provided to connect indoor devices to wi-fi in one step.
* minimum wi-fi power when the connection is idle (< 800 calories A),
* configurable waking of the system on a WLAN filter only,
* wi-fi -Bluetooth single antenna coexistence.
2. Application scope:
* iot
* industrial and home automation.
* multimedia .
* intelligent gateway and meter metering.
* home electronics .
* video conference.
* home appliances and large appliances .
* video cameras and security equipment.
3,The TI certified WiLink 8 module USES a power optimization design that provides high data throughput and extension range, and supports wi-fi and Bluetooth coexistence (for WL1835MOD only).
* The WL18x5MOD device is a 2.4ghz module dual antenna solution.
* The device by the FCC, IC, ETSI/CE and TELEC certification,
* Suitable for the access point (AP) and the client.
* TI for Linux ®, Android ™ senior, RTOS and WinCE operating system provides the driver.
有关WL1835MODGBMOCR的价格，datasheet免费下载，简介，文档，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书，代理商，技术支持，产品介绍，参数，方案，分销，经销，官网，生产厂家，批量采购，模组，模块，特价，库存，哪里买，性价比，用途，封装厂，晶圆，代工，可咨询本公司
https://www.sunnywale.com/uploadfile/2022/0114/WL1835mod_Awin.pdf点击或者复制上面链接到浏览器打开，WL1835MODGBMOCR datasheet PDF file可免费下载，Click or copy the link to free download the datasheet PDF file.
满2件全国包邮，如果你有货，可以卖给我，当我求购WL1835MODGBMOCR，你需要购买WL1835MODGBMOCR，可以找我买。
Freight is free when you buy 2 pieces in China, if you have WL1835MODGBMOCR inventory, you can sell to me, if you need buy WL1835MODGBMOCR, you can ask me to buy.
